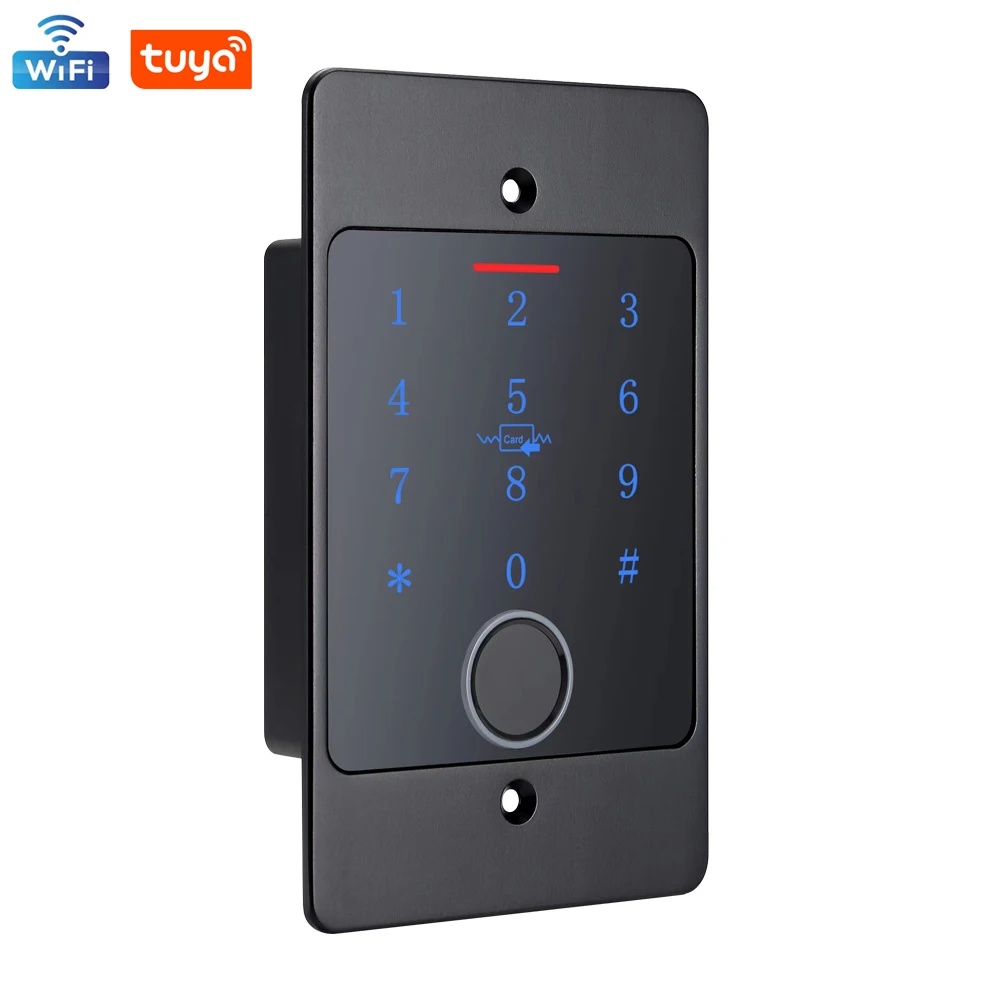

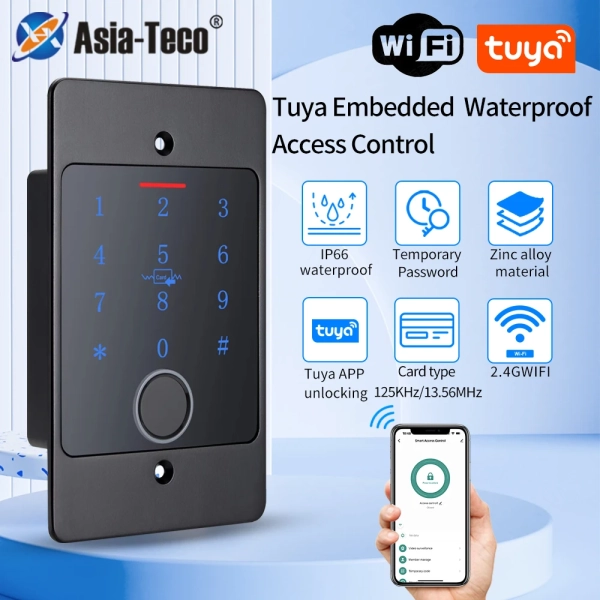

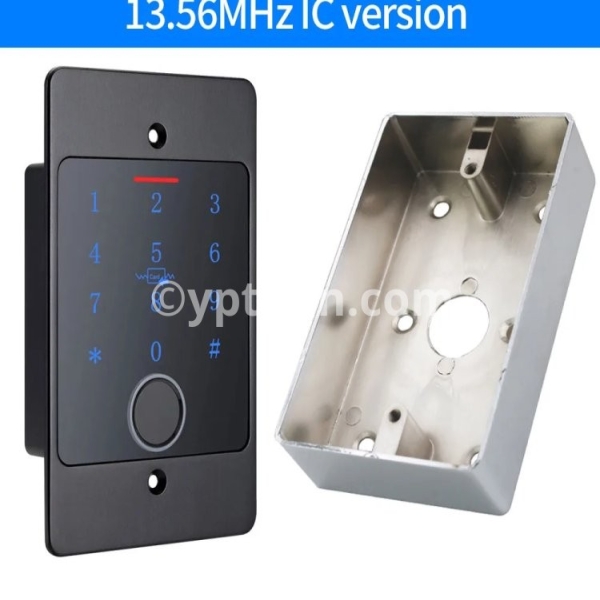

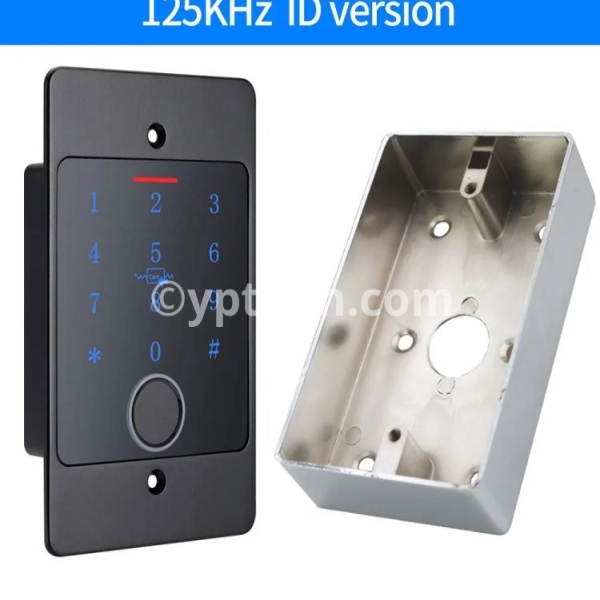

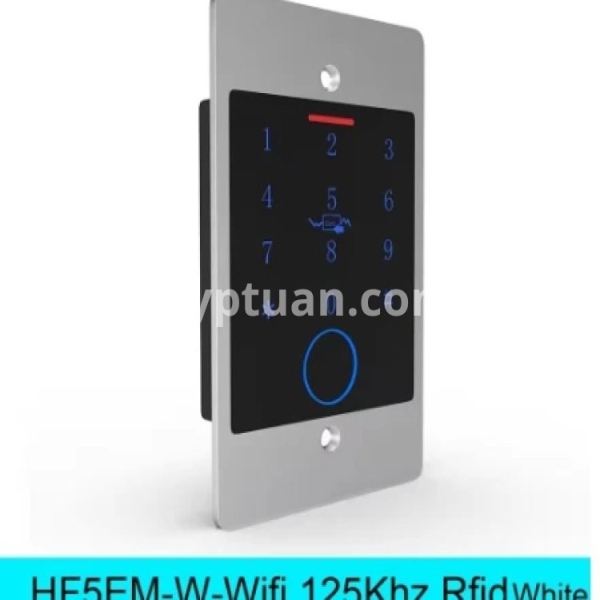

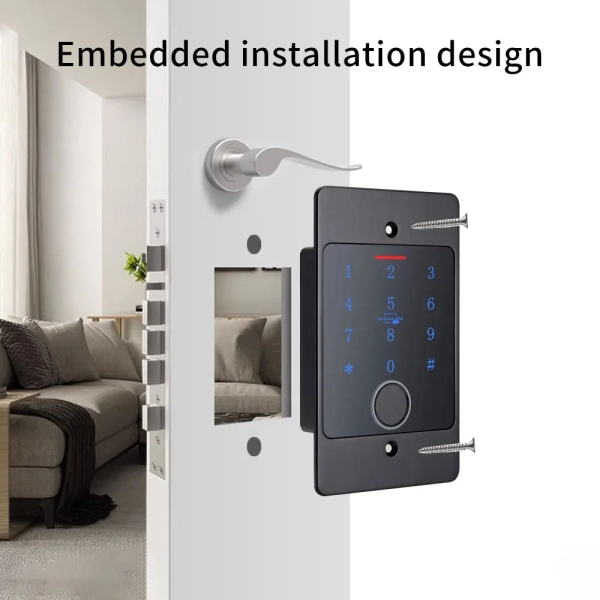

Tuya Wifi Standalone Fingerprint Access Control Keypad Metal Waterproof Backlight Embedded installation Opener Reader+M70 box

Tuya Wifi Standalone Fingerprint Access Control Keypad Metal Waterproof Backlight Embedded installation Door Relay Opener Reader

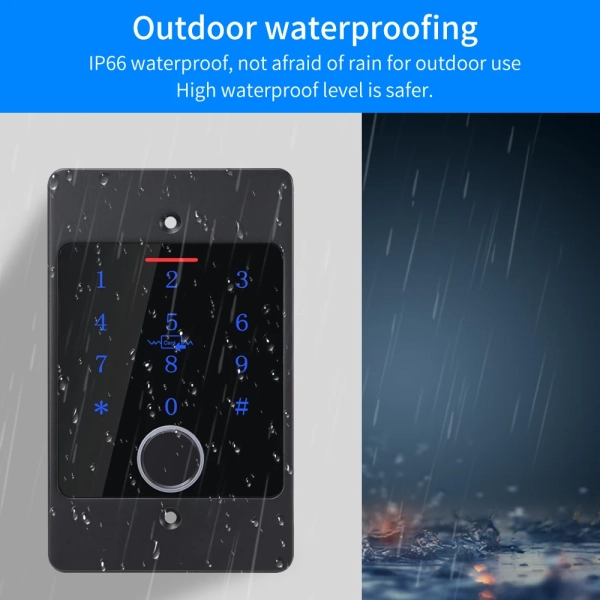

This product is a metal ip66 grade waterproof fingerprint access control machine also can be a card reader, zinc alloy shell, explosion-proof and skid proof, IP66 waterproof grade, suitable for outdoor use. Support 200 fingerprints/880 fingerprints+2120 card users, with fingerprint door opening, card door opening, password door opening and multi-user door opening. It supports visitor users, can be set as a professional card reader, can upload/download card or password user data, and has door status detection; Machine anti disassembly function.

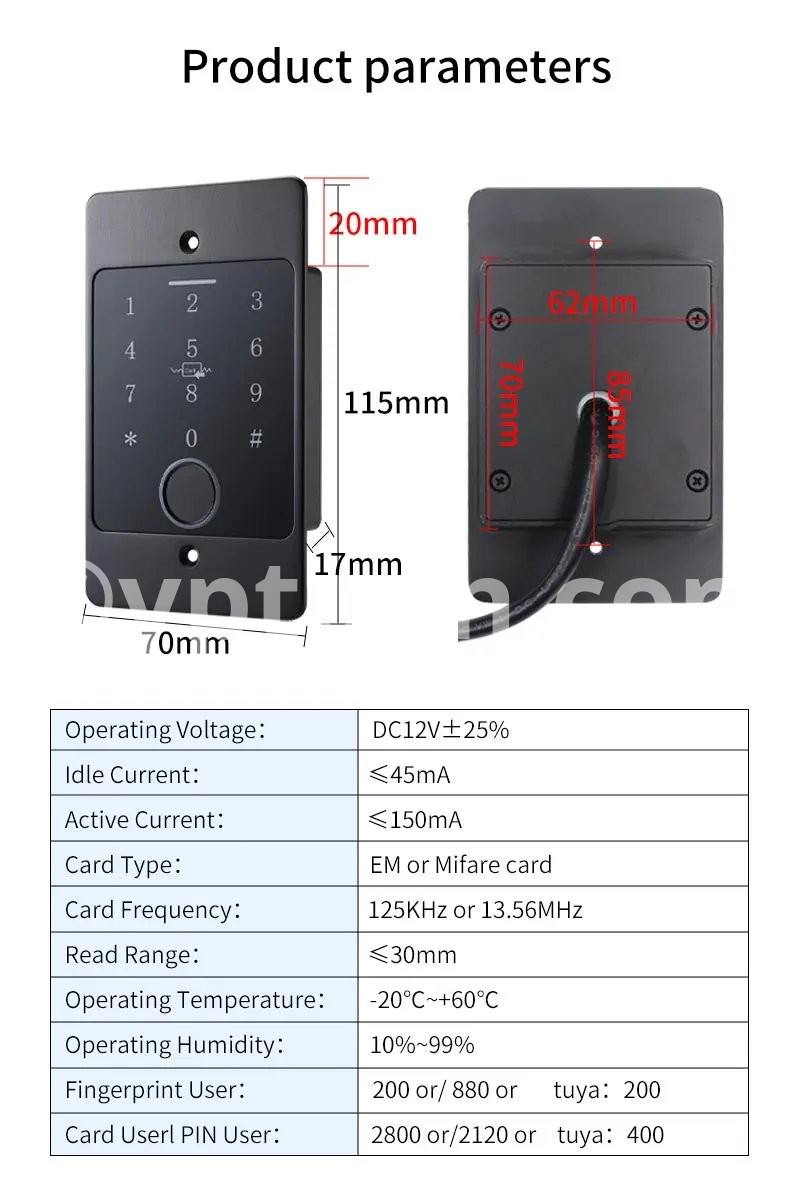

Product Specification:

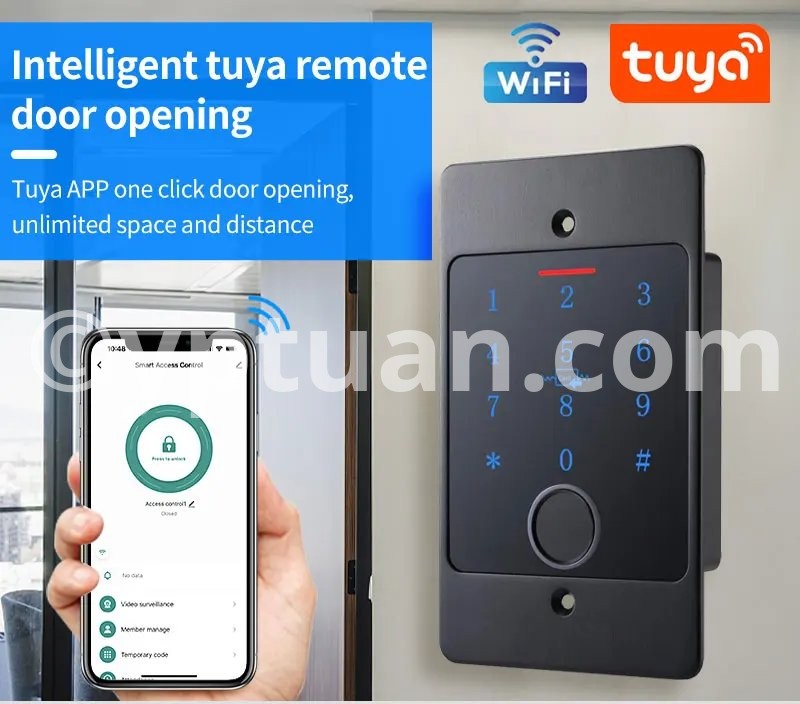

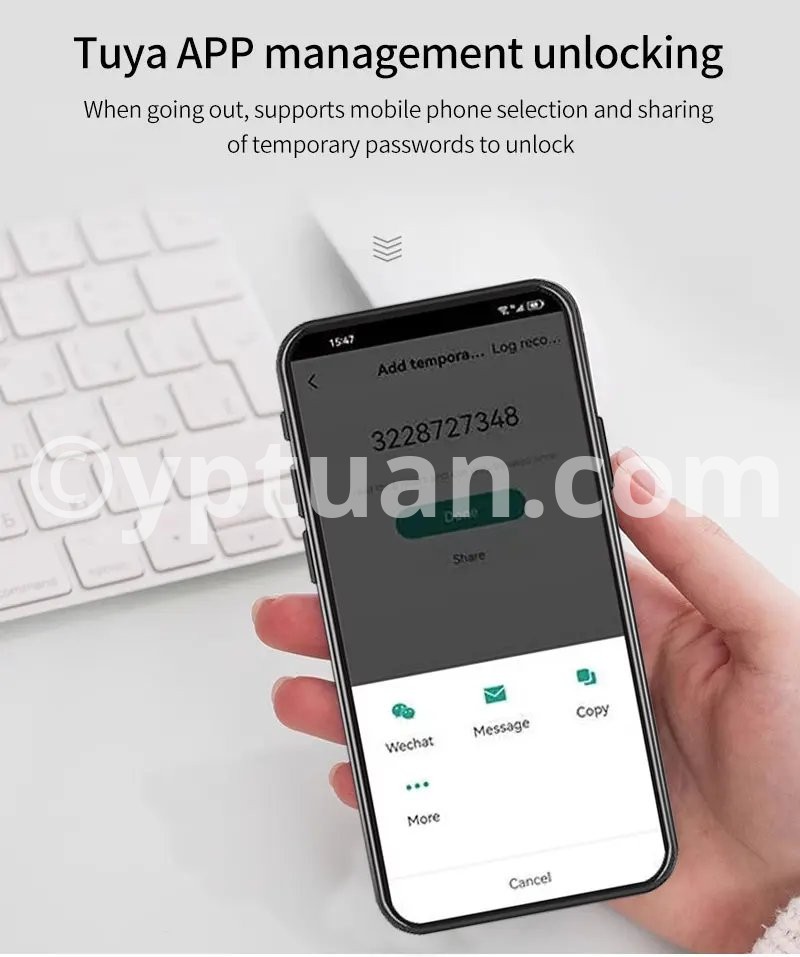

Mobile APP tuya APP

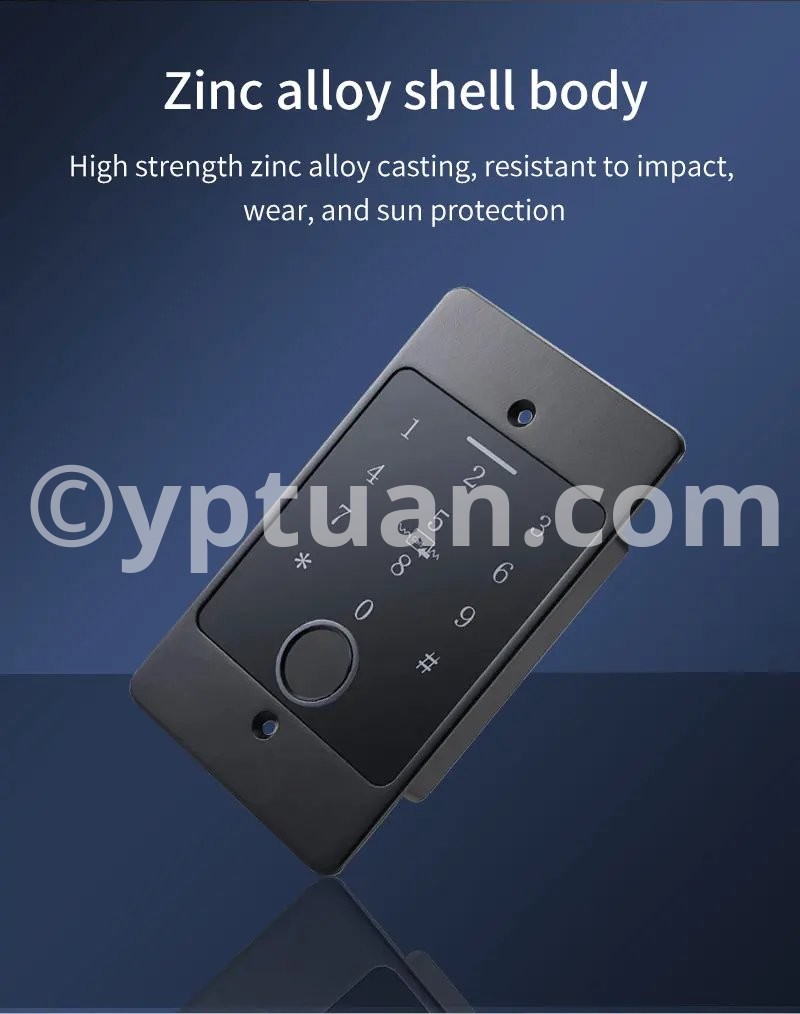

Material:Metal Zinc Alloy high quality material

Card reading distance: 0-5CM

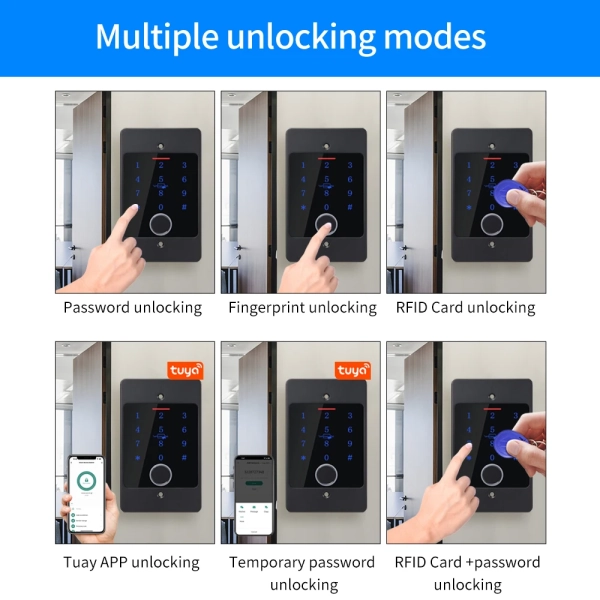

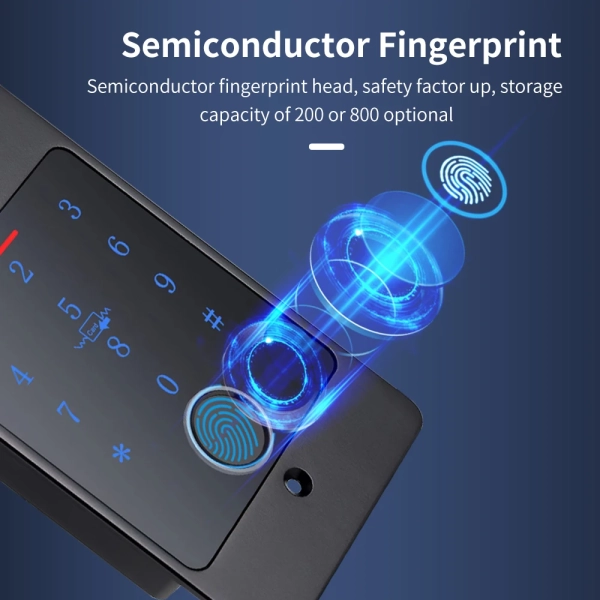

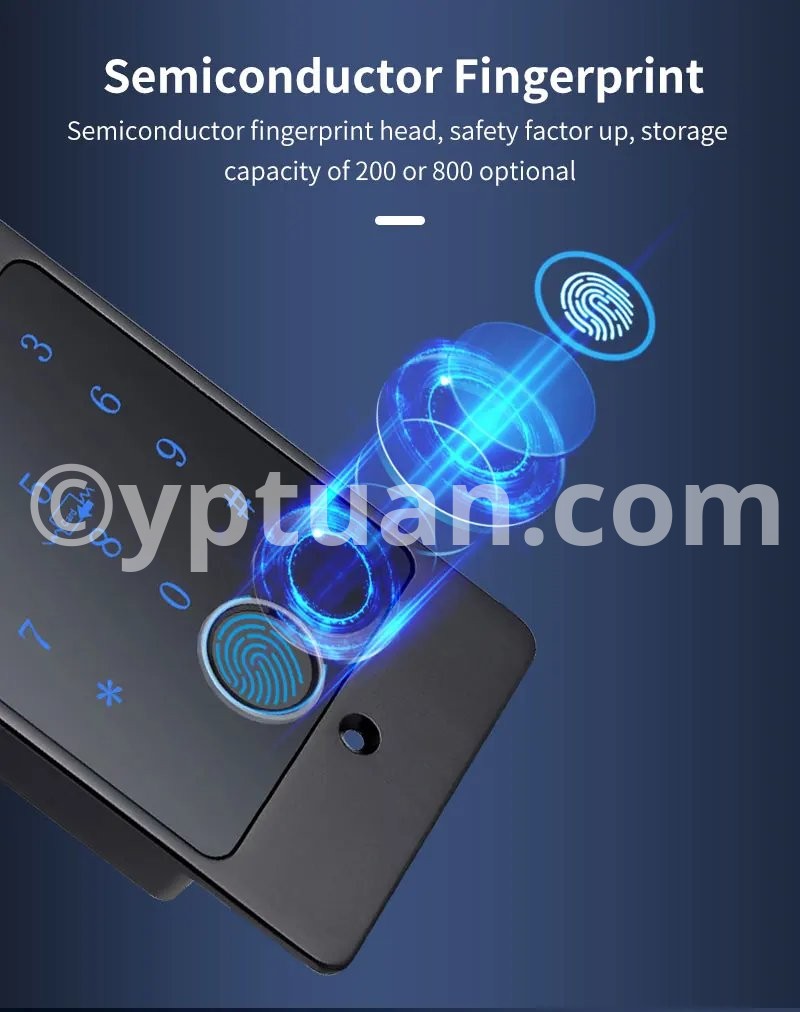

Identification method: Fingerprint, RFID card, password，combine unlock，Multi user combined unlock

Backlight: With Blue Backlight

Doorbell button: support wired doorbell

management card （Administrator Card）Function: Support

Working voltage: DC 12V

Working current: ≤ 30mA

Door opening time: 0-255 seconds

Working temperature: -20 ° C ~ 60 ° C

Working Humidity: 20% ~ 90%

1.Set administrator password, administrator card

2.Set the door opening delay time: Door opening time: 1~99 seconds, factory default is 5 seconds.

3.Set Pause mode & Toggle mode: Under this mode, after opening the door, the door won't be closed automatically until next valid user

input. That’s means whether open or close the door, you

must swipe valid card or input valid fingerprint

4.Multi user combined door unlock: 2-9 users can be set. If it is set to 9 users, the lock can be unlocked normally only after 9 valid users are input continuously

5.Door magnetic detection setting: (turn off door magnetic alarm, turn on door magnetic detection) external alarm switch

6.Security alarm mode setting: (turn off security mode; turn on deadlock(Lockout) mode mode; turn on alarm mode)

7.Data transmission: data transmission of user card and user password (only copy card and password users,The two machines must be the machines produced by our company with this function)

8.Sound & light setting: turn off the machine sound and turn on the machine sound; Turn off the red light, turn on the red light
