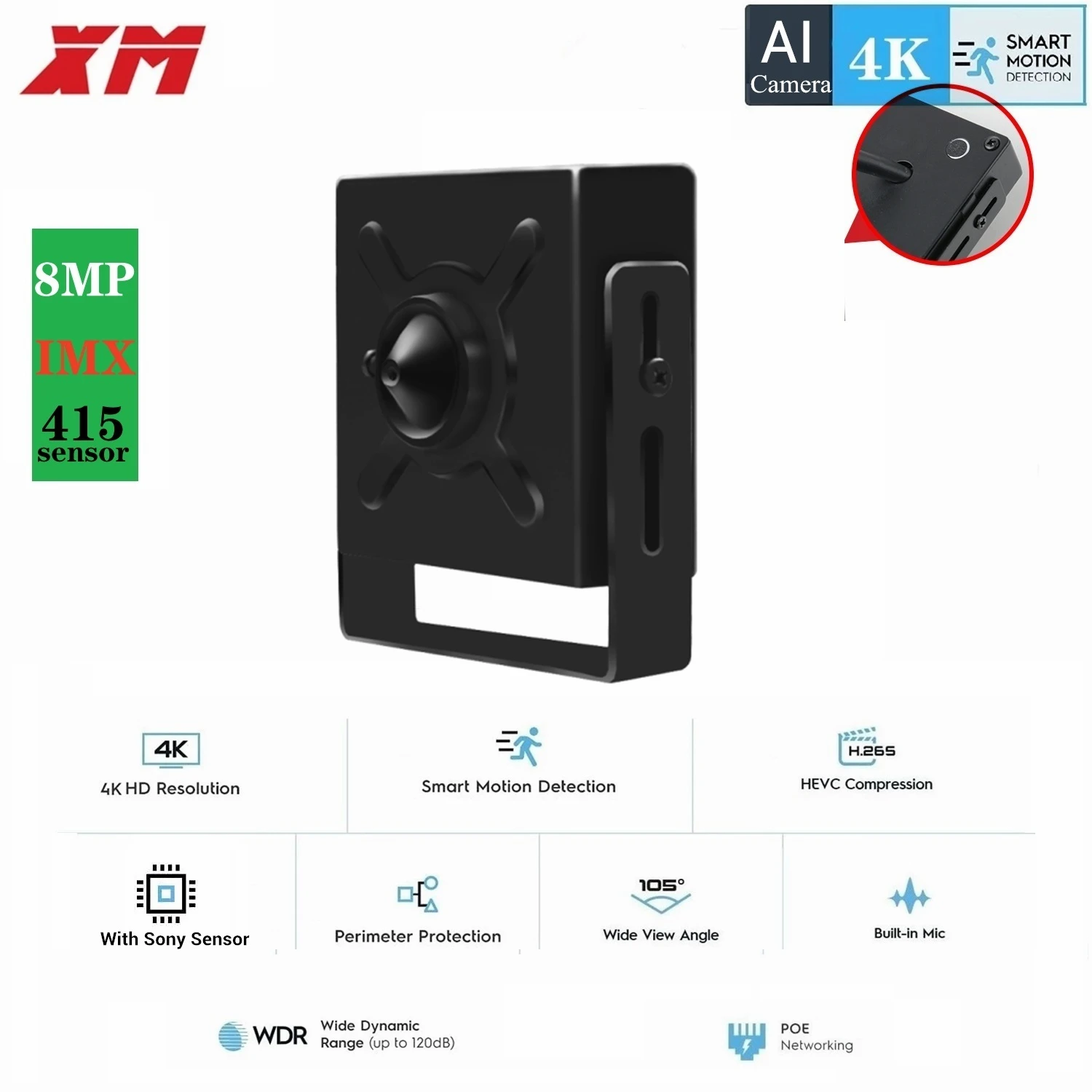

Mini 8MP 6MP 3MP POE Audio IP Camera H.265 IMX415 IMX335 IMX307 CCTV Camera for POE NVR System indoor Home Security Surveillance

Tips:

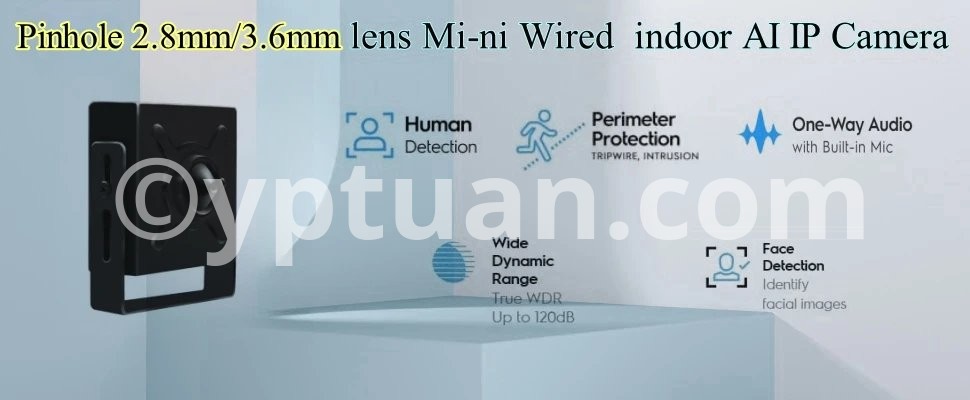

1. H.265+ 2.8mm (3.6mm) lens（Pinhole） Mini IP Camera.

2. The package not include power adapter（Can buy power supply by yourself）

3.IP Camera default power supply is 12V; POE 48V power supply needs to be matched with your POE switch 48V

Mini POE Camera Specification:

POE Mini Audio Camera Specification

Resolution: 3MP 6MP 8MP

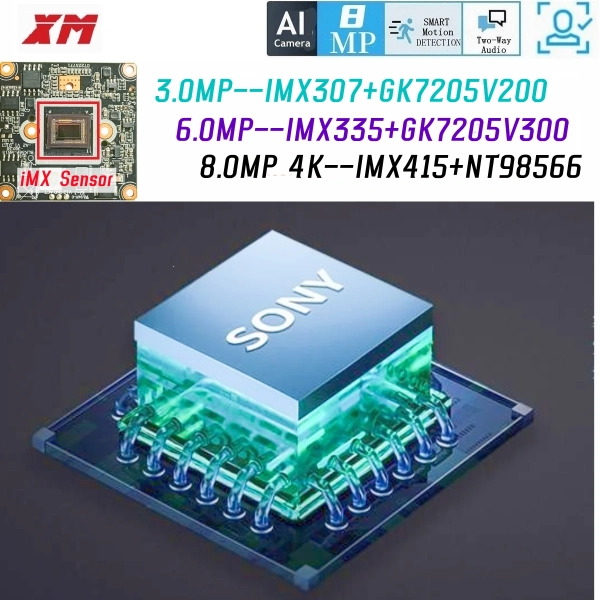

Sensor type:

3 Megapixel    1/2.8"  IMX307 SONY CMOS sensor

6 Megapixel    1/2.8"  IMX335 SONY CMOS sensor

8 Megapixel    1/2.8"  IMX415 SONY CMOS sensor

Minimum illumination:Color: 0.001 Lux; B/W: 0.001 Lux

Power: Can be powered by both DC 12V 1A and POE

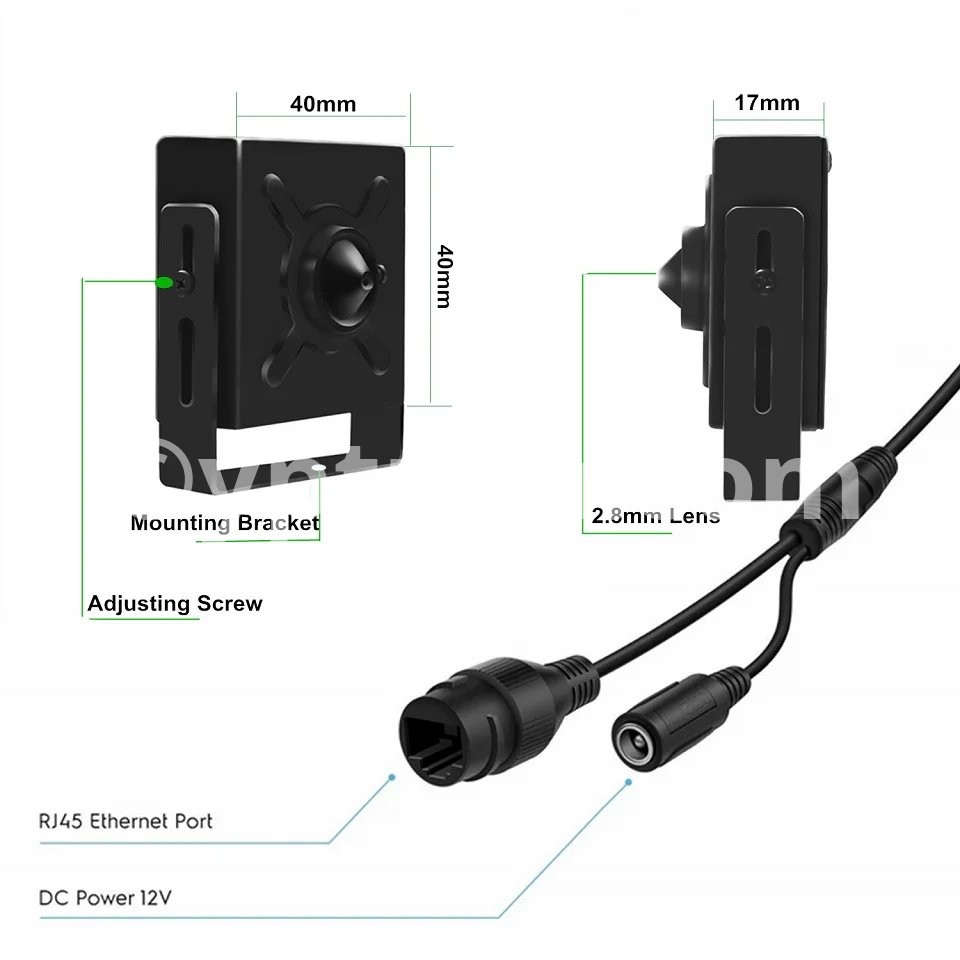

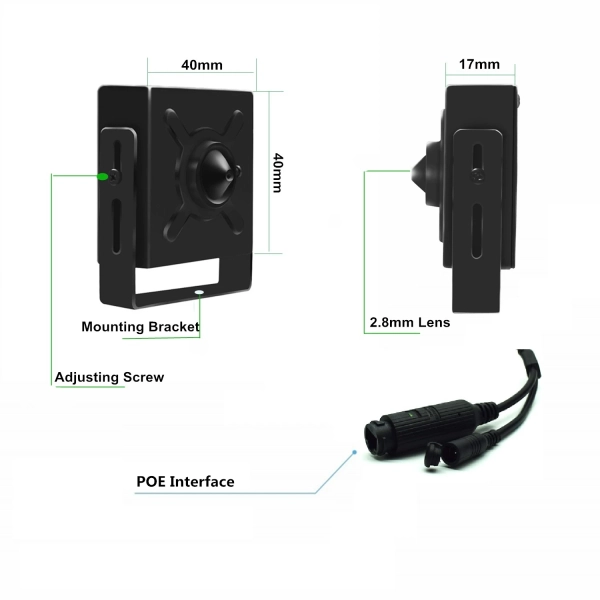

Lens: 2.8mm HD Lens or 3.6mm Lens(Pinhole)

Video Compression: H.265AI Main/High Profile

View Angle: 110 degree

Frame Rate: Up to 25fps

POE Standard: 802.3af, 48V

SD card Slot: No

Operating Temperature: -20C ~60C

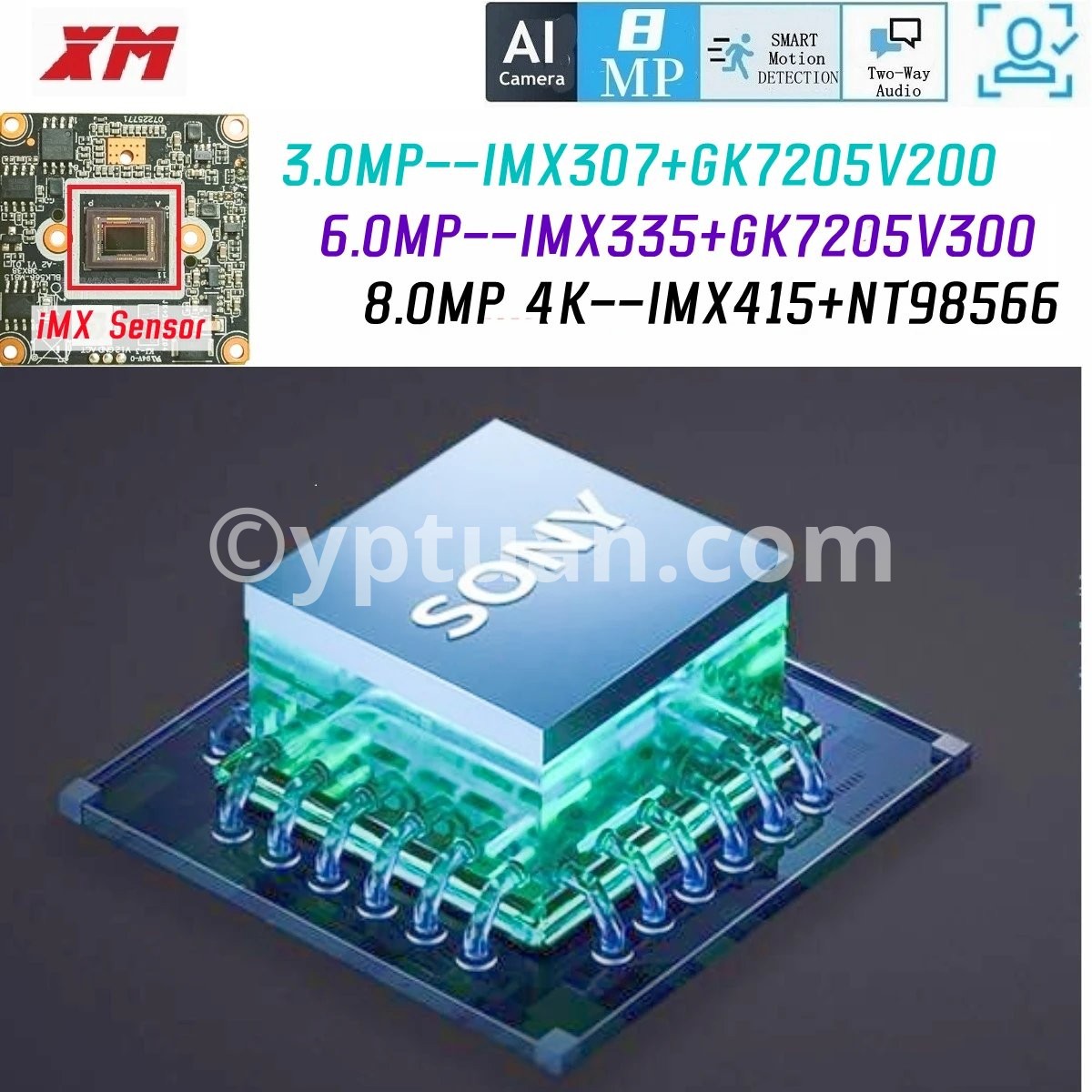

IMX Sensor

All Features

Credibly Clear Videos in 3MP/6MP/8MP; More Details Captured

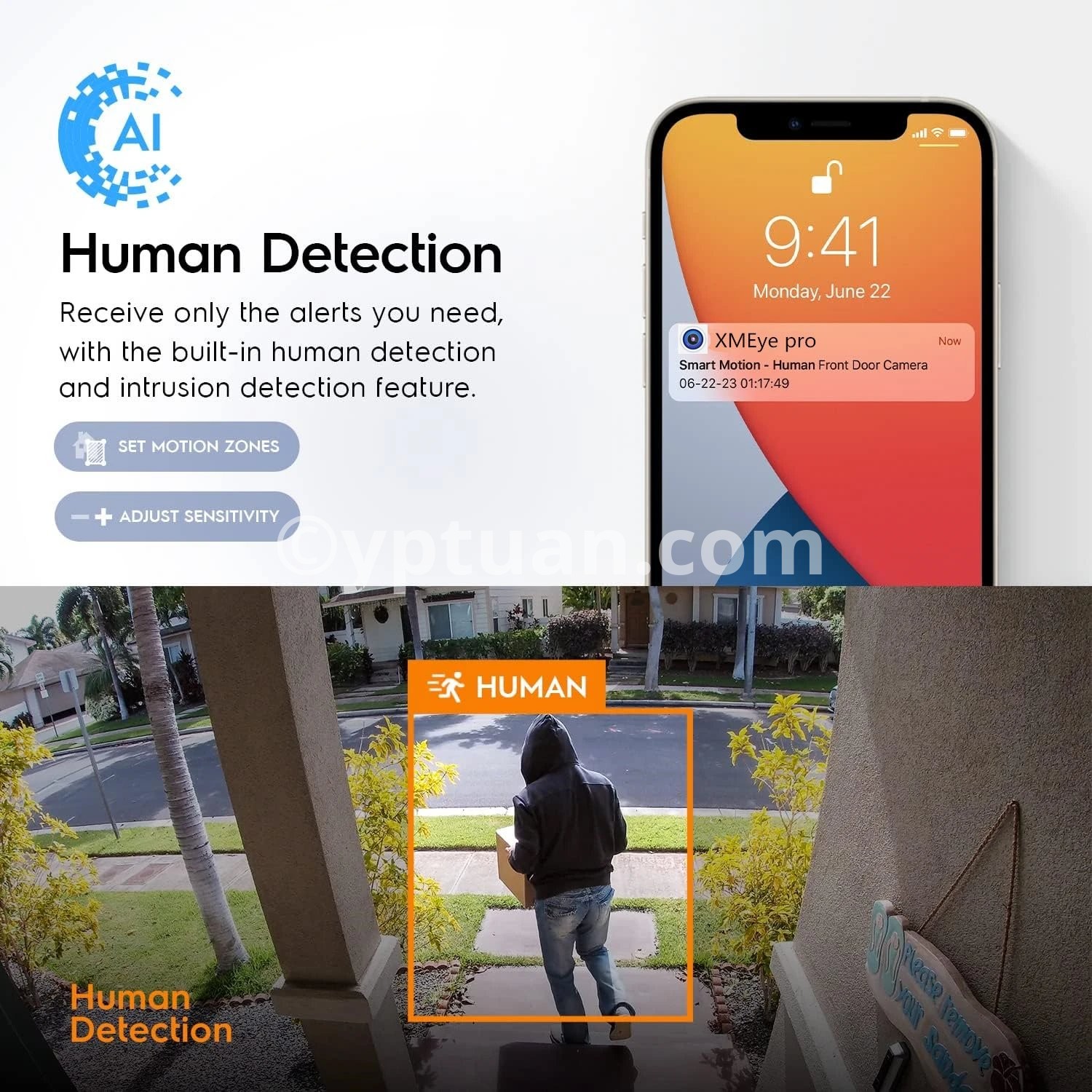

AI intelligent humanoid detection

AI intelligent humanoid detection is to detect and analyze the humanoid objects in the picture through AI intelligent algorithm, and filter other moving objects (such as branch shaking, animal walking, light changes) to produce effective and targeted alarms.

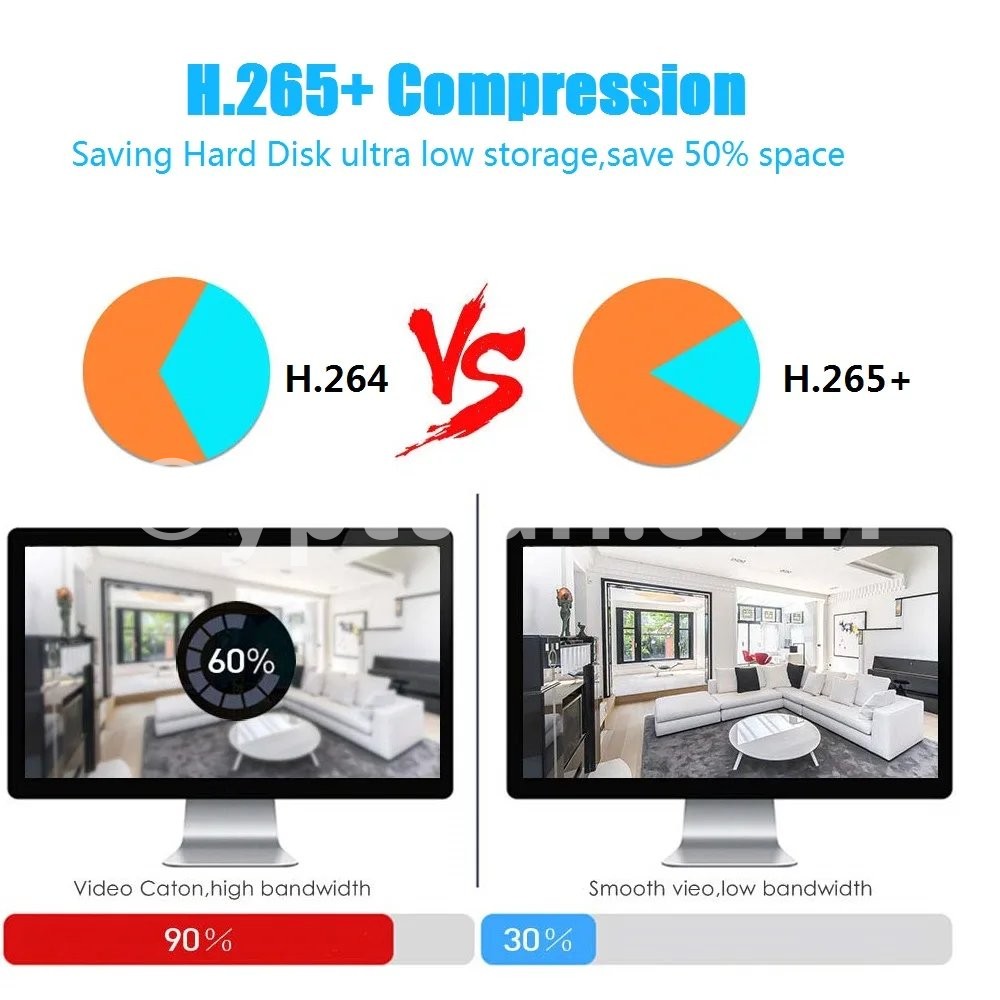

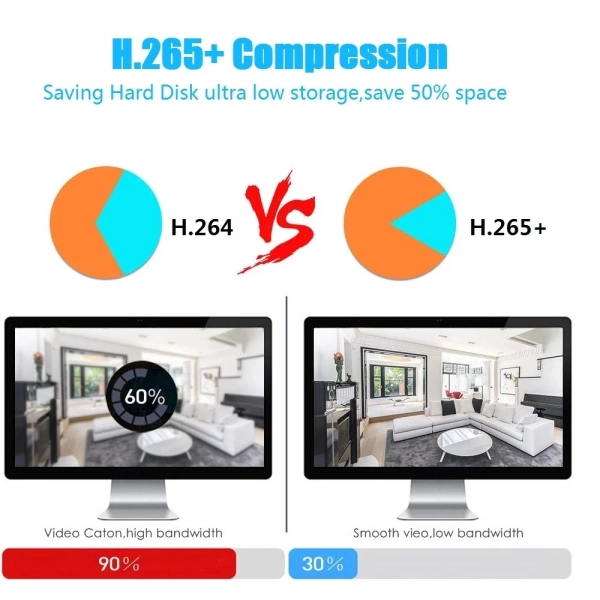

Advanced H.265+ Video Compression

H.265+ doubles the coding effieciency, which means that 1. H.265 saves space; 2. store more videos; 3. provide super smooth to view video compared with H.264

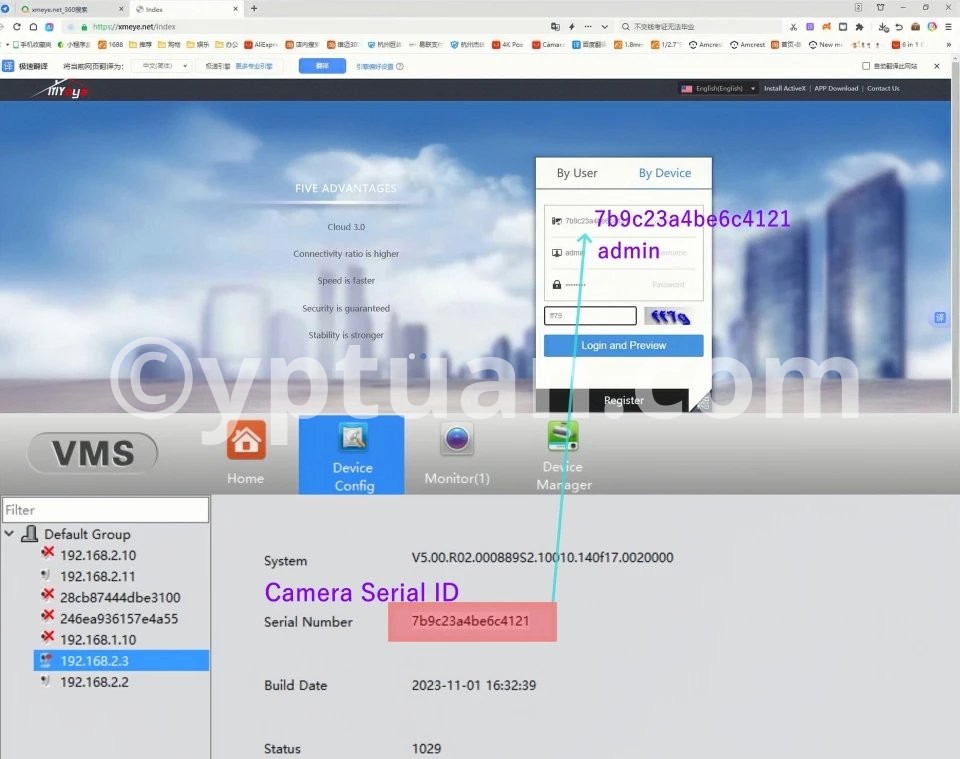

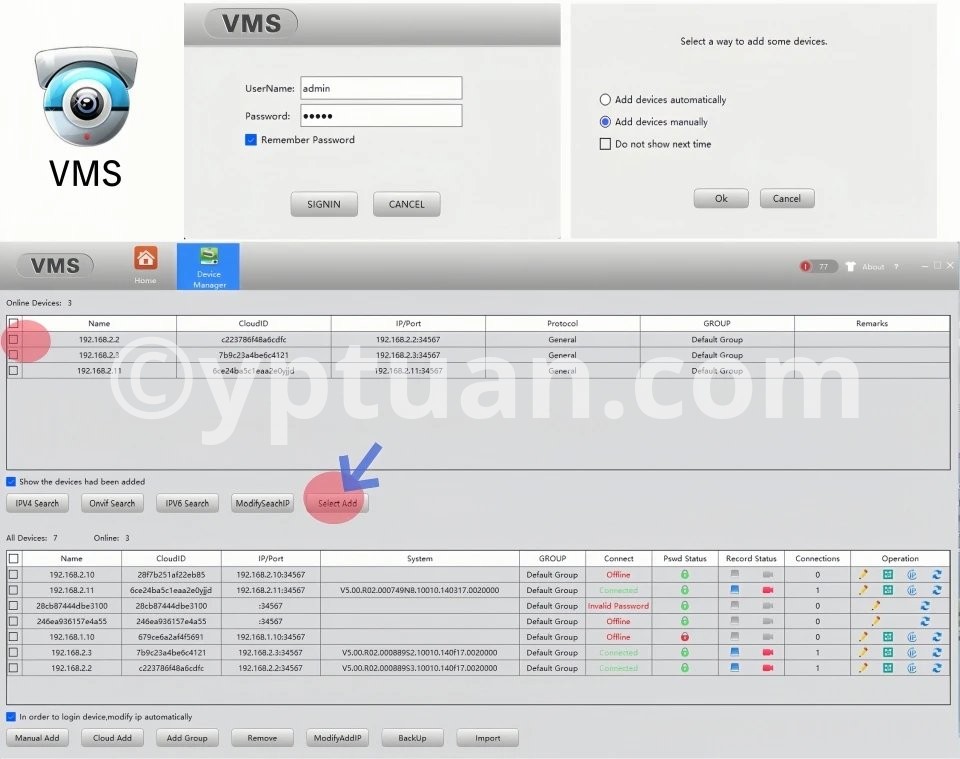

Remote Viewing, Anytime, from Anywhere

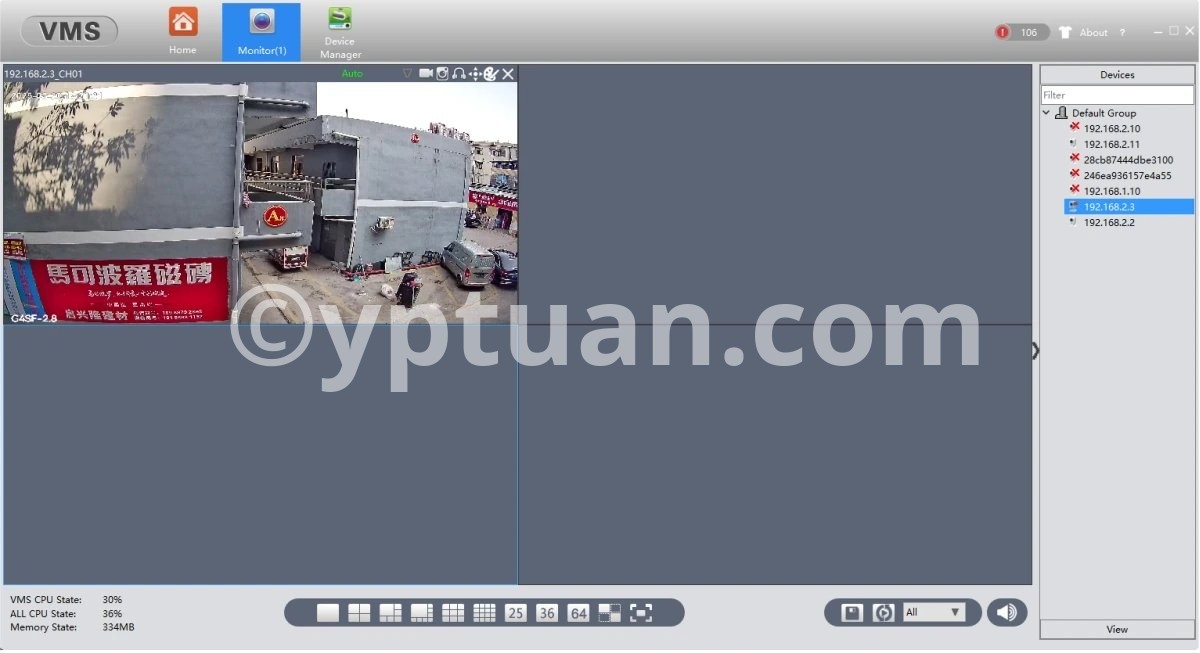

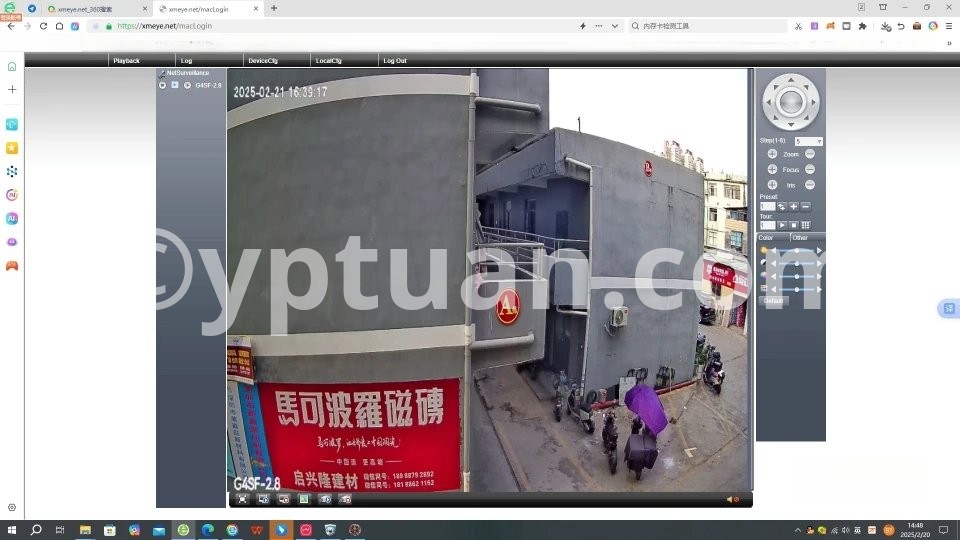

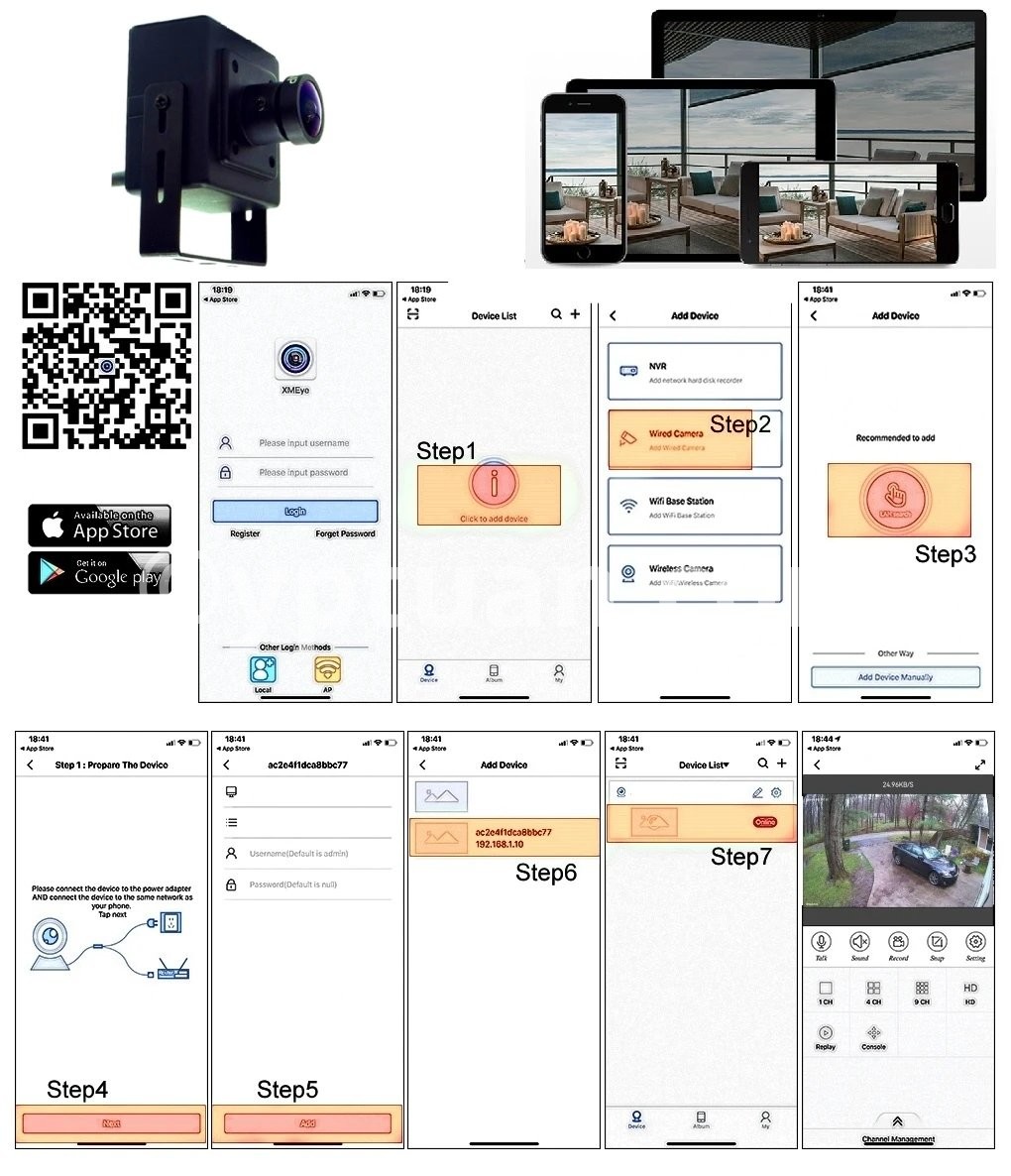

No matter where you are, you can remotely access the camera to see live streaming and stay connected. Remotely view the camera via: free XMeye App on your mobile device, free VMS Client on your computer, IE browsers.

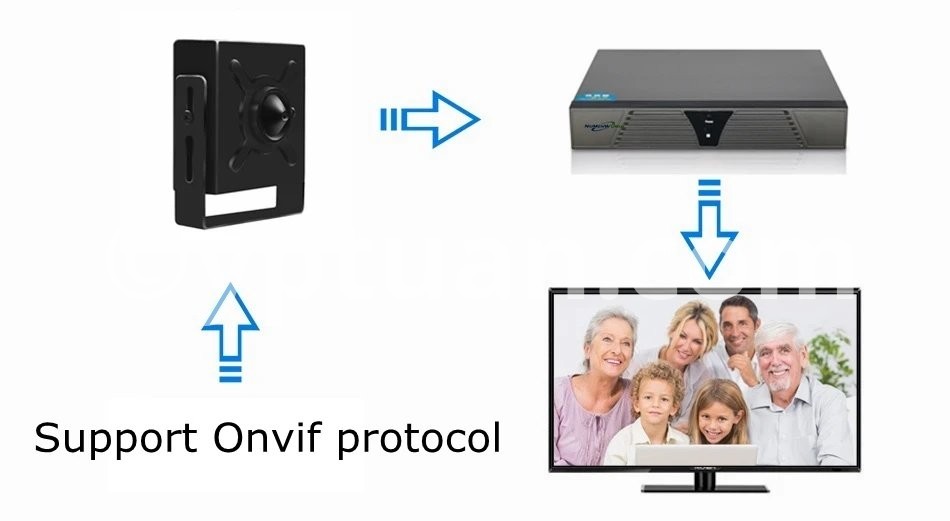

Work with Hilkvision NVR & Dahua NVR by Support ONVIF Protocol

1.Have been tested tested our IP Cameras and POE IP Cameras, they are compatible with Hilkvision NVR and Dahua NVR by ONVIF Protocol; POE moulde is inserted if you select POE IP Camera-- Powered by Internet Cables.

2.Intelligent analysis function can only use XM NVR or XM branded devices to support basic intelligent analysis functions, please know!

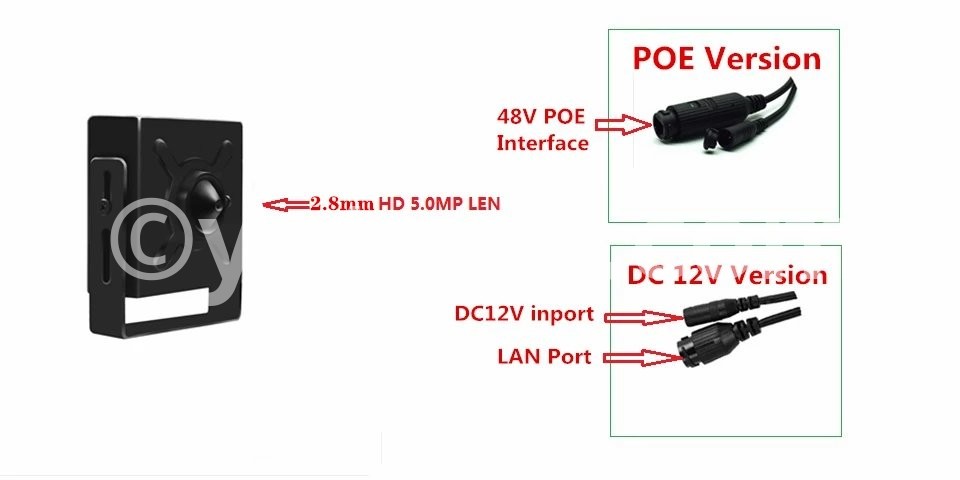

Support Optional 48V POE power supply

Using POE function,with s Single Cat5 cable for Power and Data Transmission,There is no need to install the power adapter anymore. you can install camera as a general wired camera if you do not like the POE function.(Please select camera if you need POE function,such as:3MP/6MP/8MP with POE)

Details

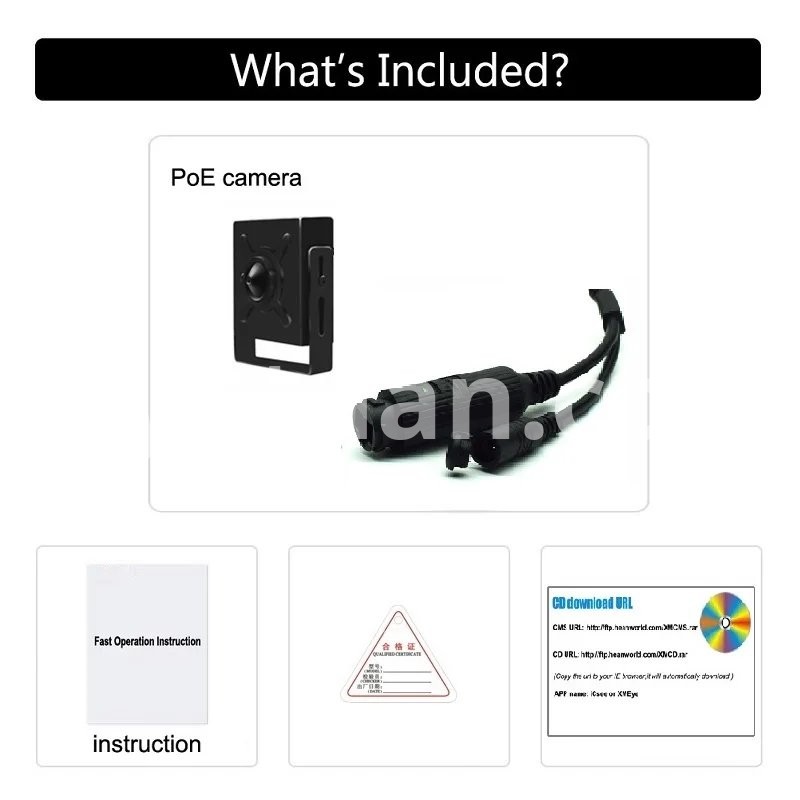

Package including:

1pcs H.265+ Mini IP Camera

1pcs user manual

FAQ

Buyers are responsible for VAT and Custom Taxes. If you have any suggestions about customs clearance, please contact us after payment.

1,What's the default IP address of camera?

Default IP address:192.168.1.10 user name:admin no password

2.Why my PC can't find the camera

Please check if the connection is right.Then check if you pc with the same gateway 192.168.1.0 as the camera.

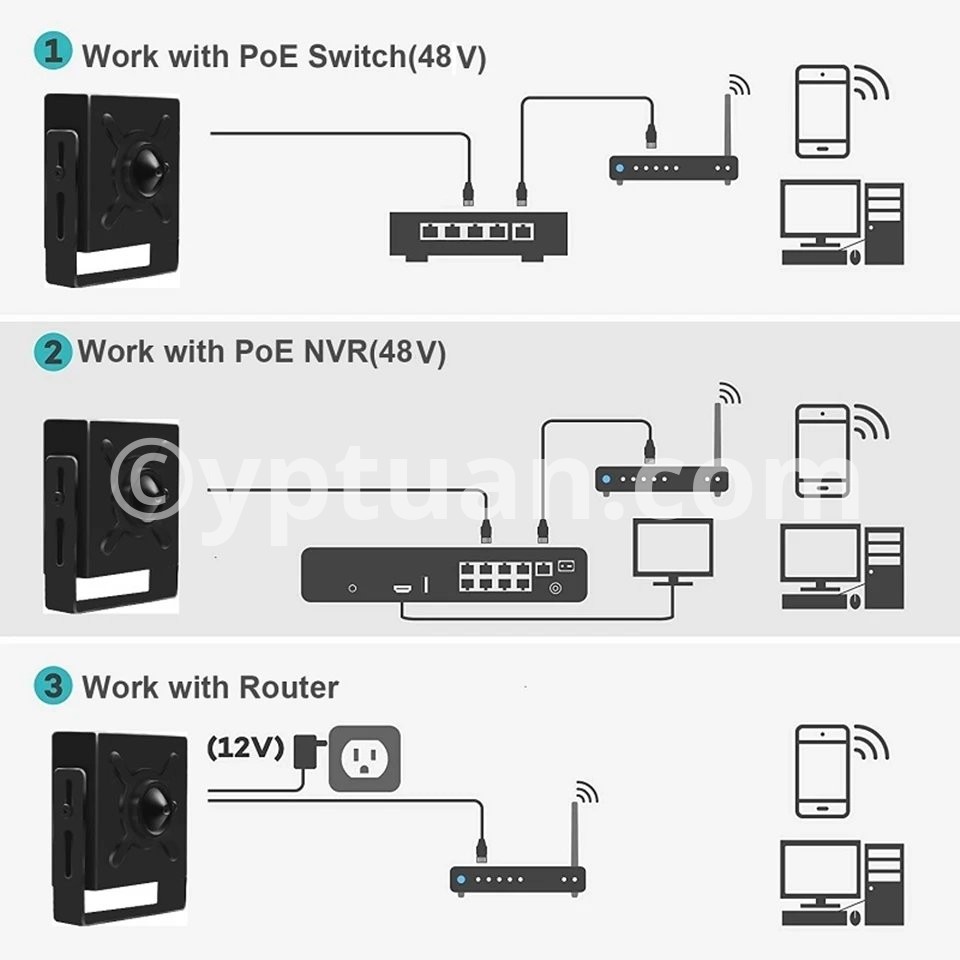

3.Why you needs a PoE IP Camera?

PoE(Power over Ethernet) is a advanced technology allows a single cable to provide both data connection and electric power to a IP Camera. With this technology, you can power a new IP camera base on your original network cabling, no need to set up a power source near the camera.

4.What kind of power adapter does our camera work with?

1)Camera Super HD IP PoE Series Camera works with PoE injector, 802.3af standard, 48V for power and video transmission.

2)If you don't want PoE injector, you can use 12V 1A power adapter.

Mini Indoor POE IP Camera (If you do not have a PoE switch, please select the model with adapter)

Any questions during using,please feel free to contact with our customer service
