WiFi Tuya Access Control Keypad 125KHz RFID Standalone Access Controller System Door Opener WG26 Card Reader Smart APP Unlock

WiFi Tuya Access Control Keypad 125KHz RFID Standalone Access Controller System Door Opener WG26 Card Reader Smart APP Unlock

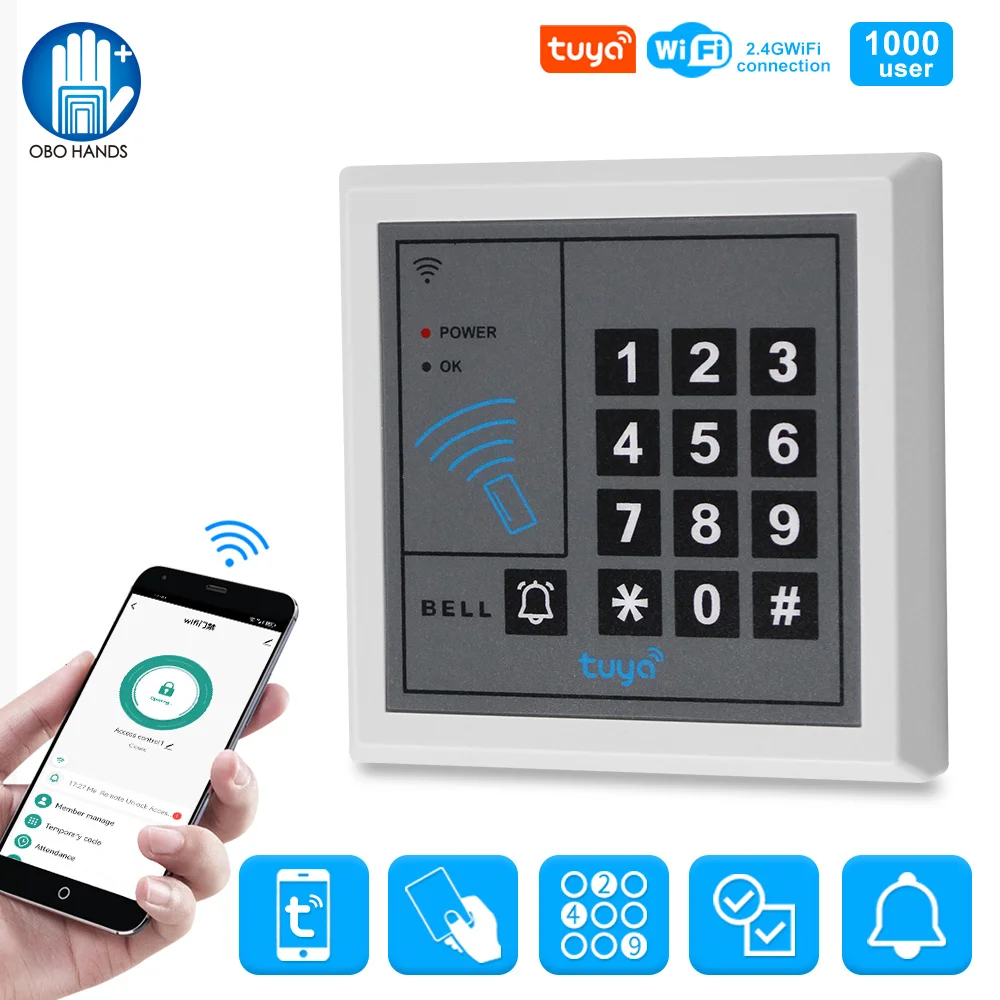

Wifi Tuya APP RFID Access Controller

Tuya APP / RFID Card / Password Unlock Methods

Access Controller

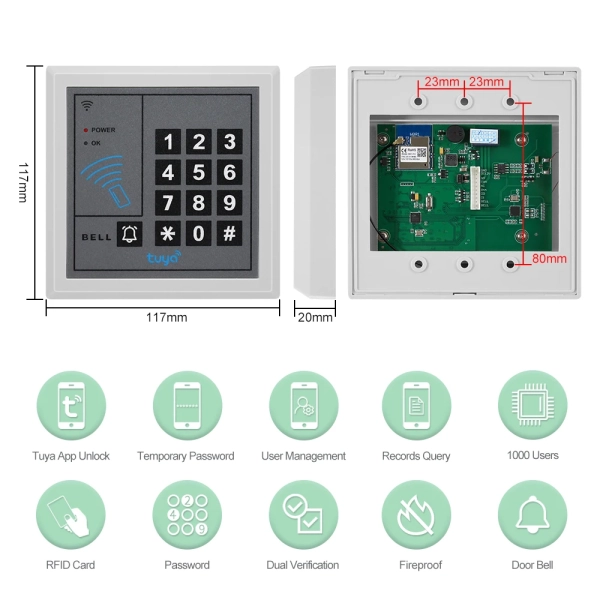

* Material: high quality ABS plastic * User capacity: 1000 * Working frequency: 125KHz * Card reading type: support EM ID compatible chip card * Card reading distance: 0-5CM * ldentification method: RFID Card, Password, Tuya APP. * Record capacity: Mobile phone APP remotely view the latest door opening information. * Doorbell button: support wired doorbell * Wiegand signal: WG26 / WG34 * Working voltage: DC 12V * Working current: ≤ 30mA * Working temperature: -20。C ~ 70。C * Working Humidity: 20% ~ 90% * Product size: 117*117*20mm

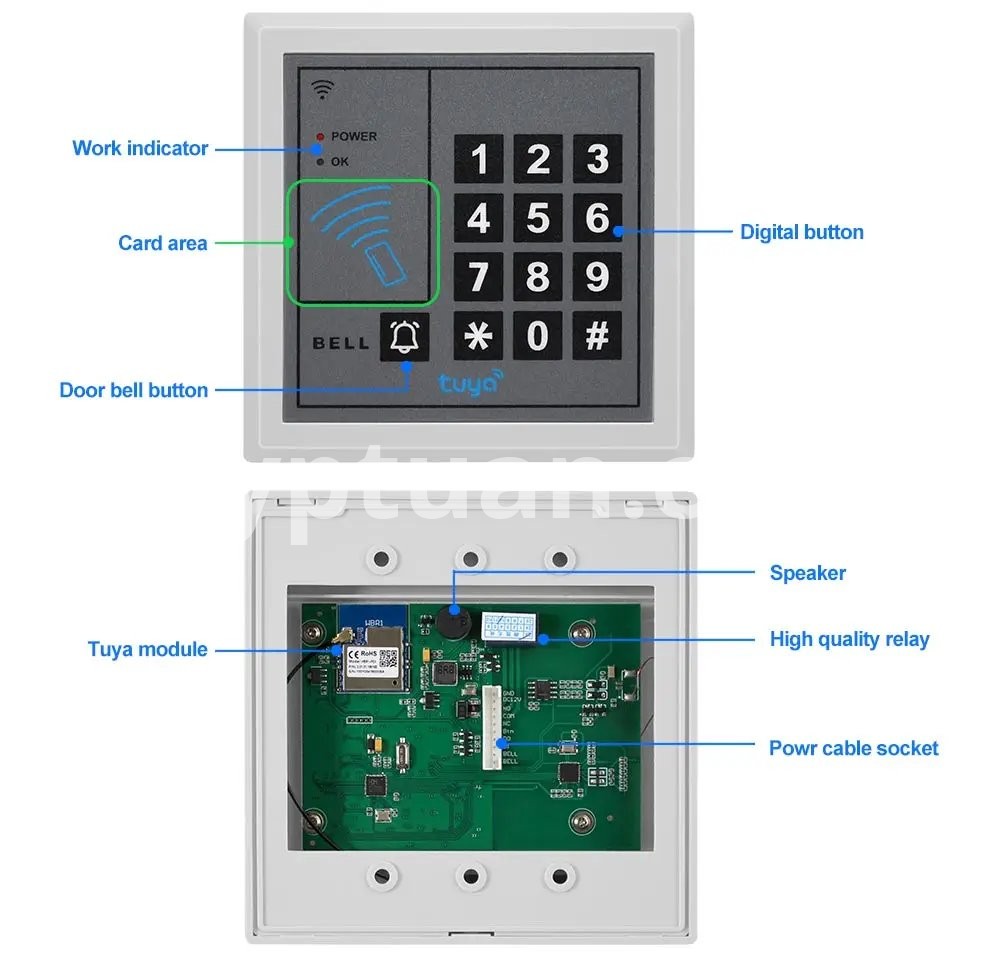

Product Details:

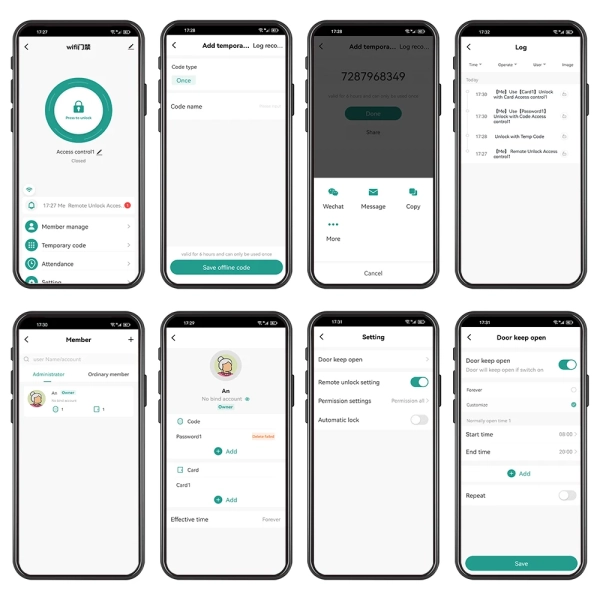

About Tuya APP

* You can add Password, RFID cards on the APP, it's very convenient. * You can open the door with Tuya APP unlocking button, or Tuya password. * A periodic password can be set, and the password is valid for a certain period of time. * You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours. * Supports sharing password via WeChat, and SMS. * Can view unlock records. Click reminder information to view logs.

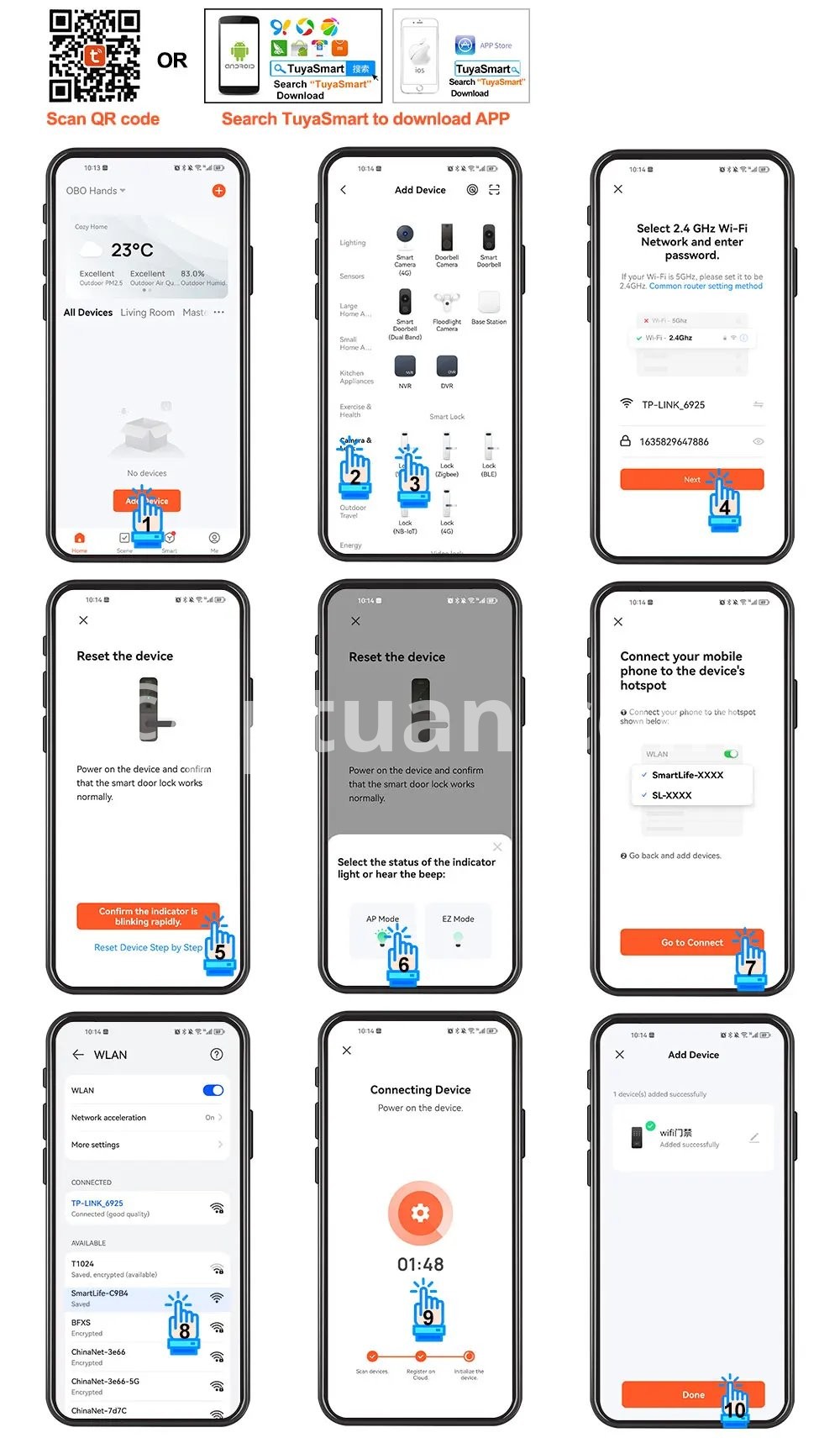

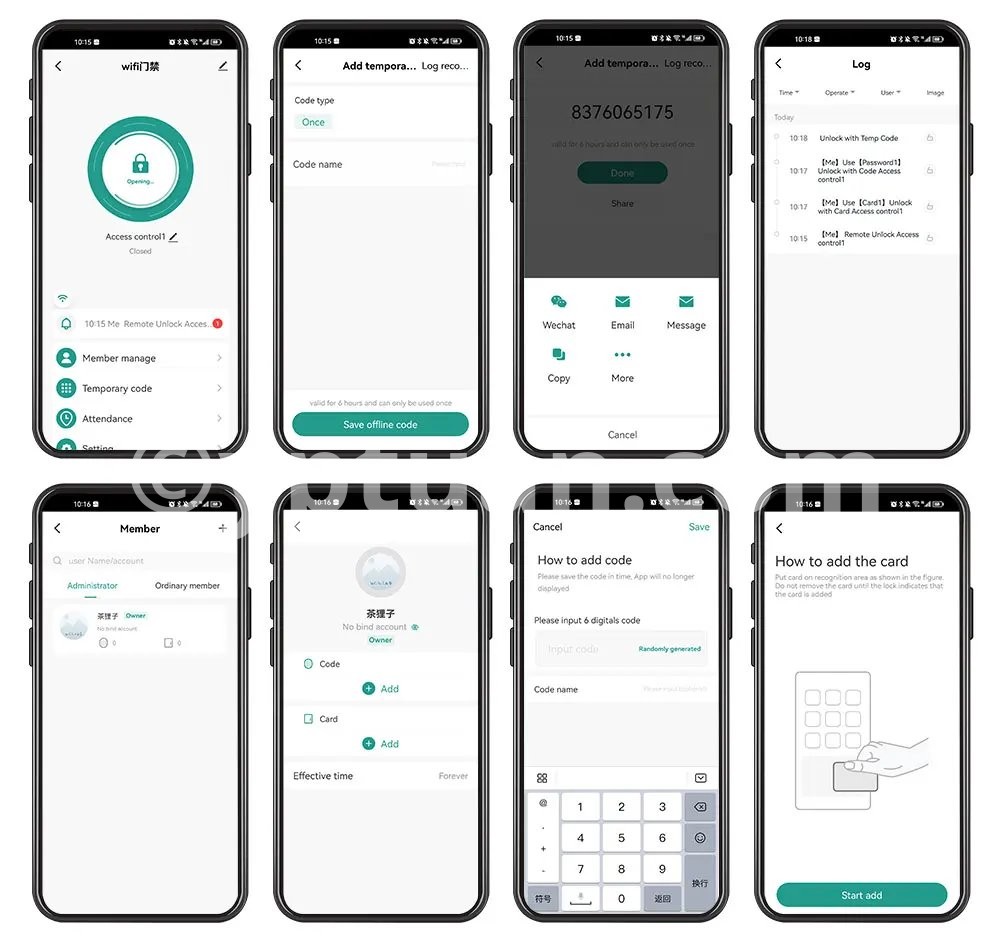

Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP, or Search Tuya on App store to download it. ​2) Enter *123456 # 041# on the access control machine, pair with the mobile phone via WiFi. ​3) Open Tuya APP to add new equipment. ​4) Connect with available devices. Choose Wi-Fi and enter password. ​5) Connecting. ​ 6) Added successfully, click "Done".

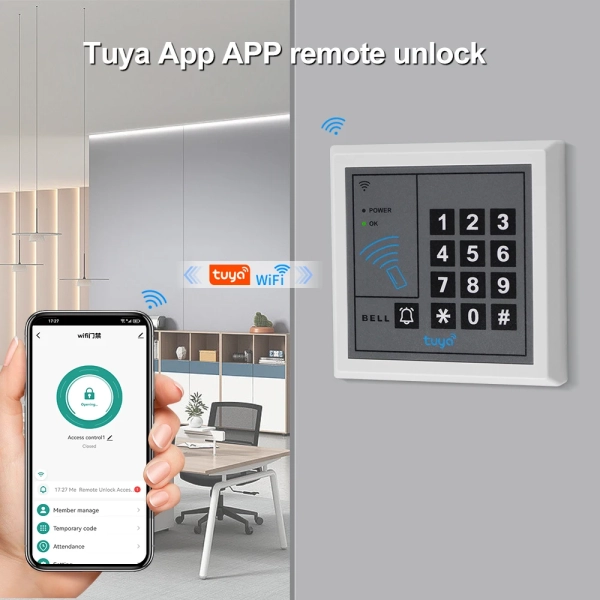

Support Tuya APP remote unlock

You can hold and press the unlock icon to unlock the door

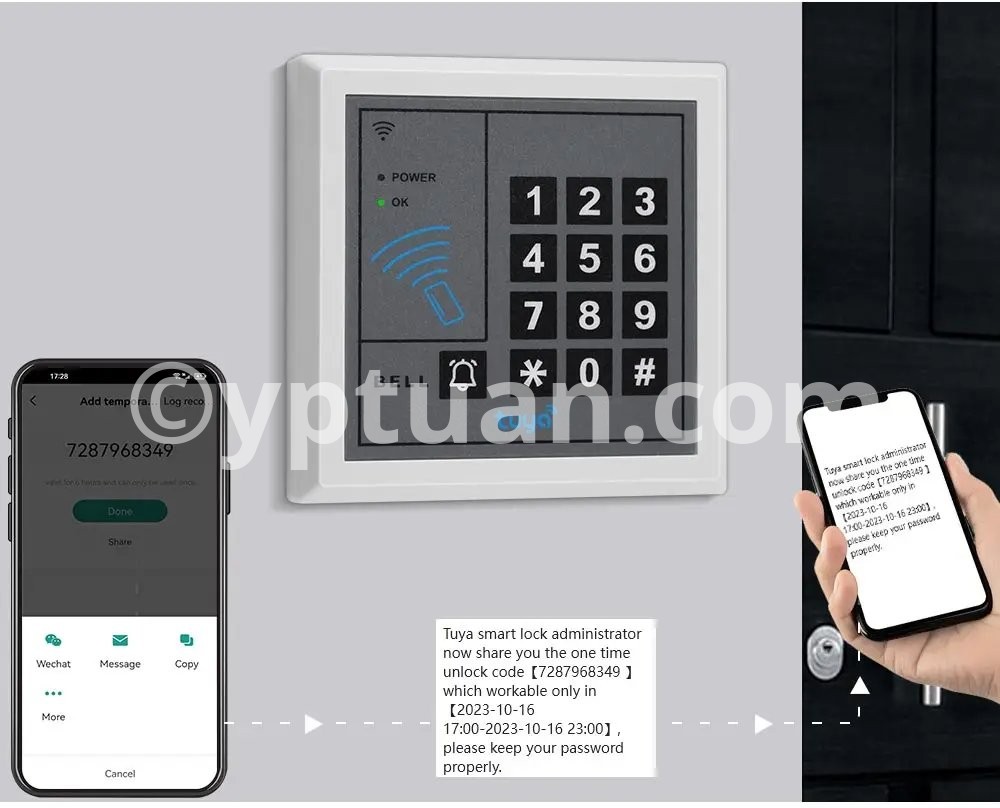

Support Temporary password unlock

You can set Tuya APP temporary password. Supports sharing password via WeChat, Email and SMS.

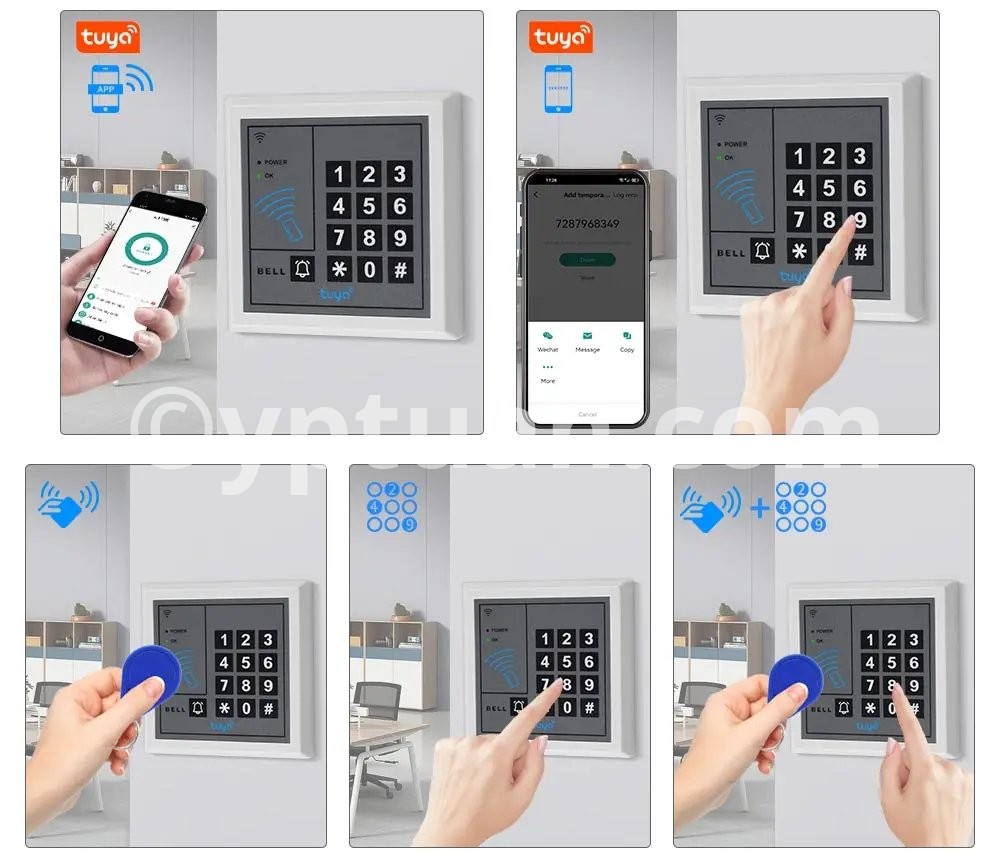

Support RFID Card, Password, RFID Card plus Password, Tuya APP to unlock the door

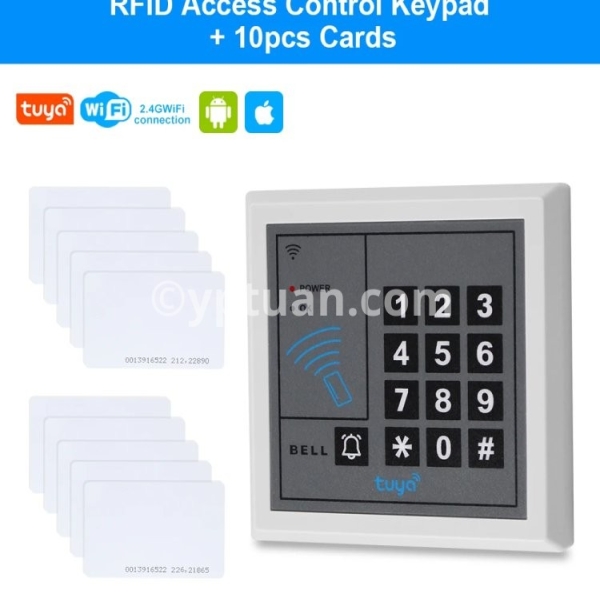

Support 1000 RFID cards and password user capacity.

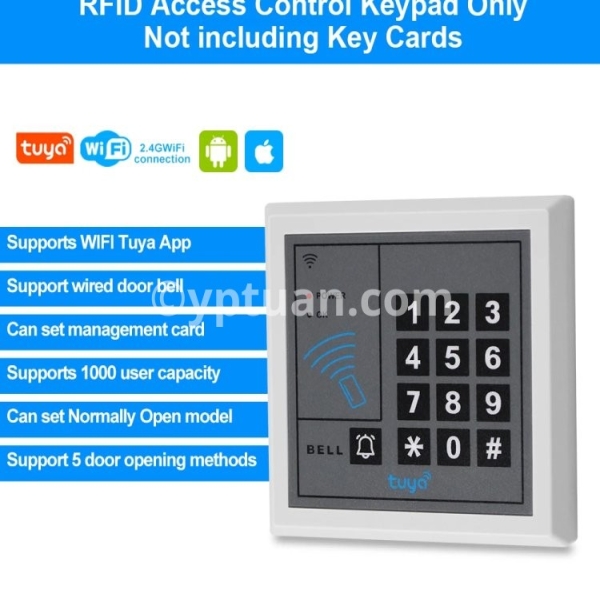

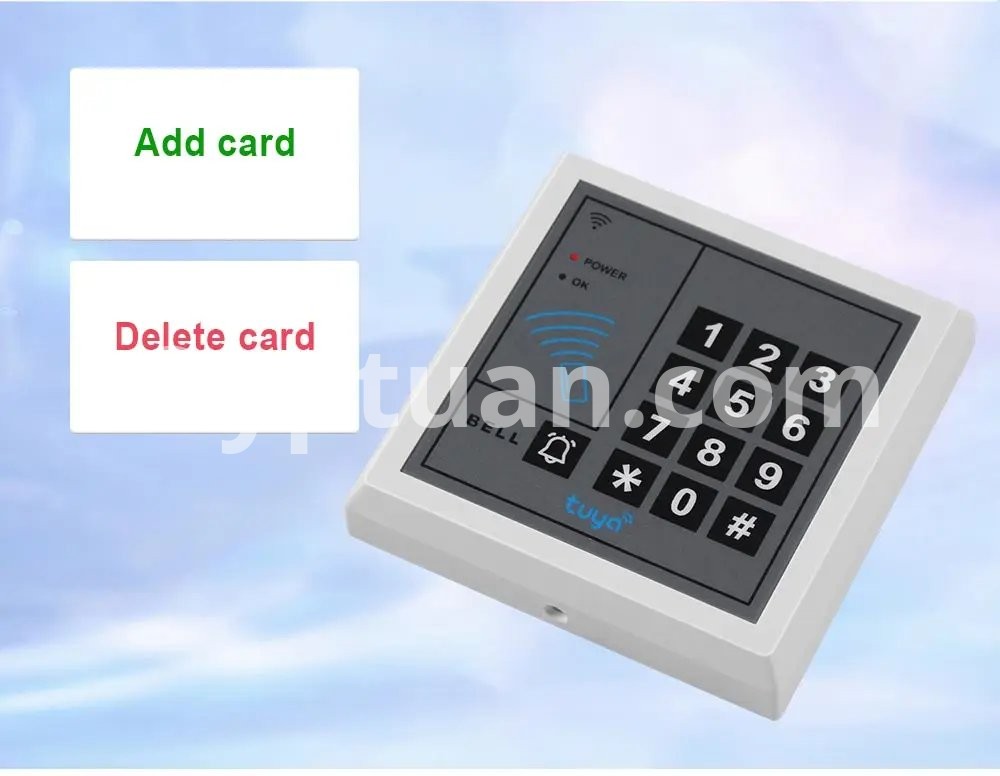

* ABS fire retardant material shell. Has a door bell button, can install a DC12V wired door bell. * Can set Management card, very easy to program. No need to connect to a computer. ( Management cards is not included in the package, need to set them by yourself.)

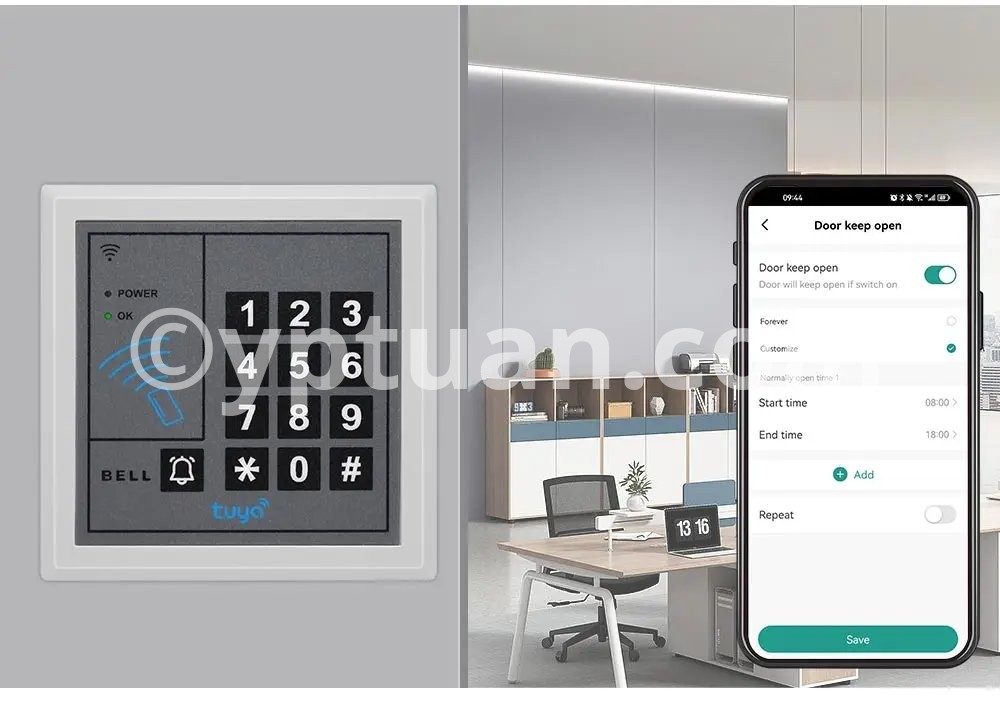

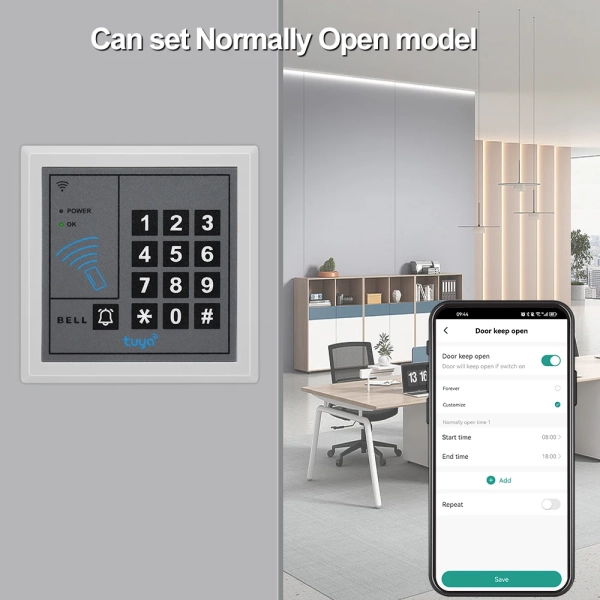

Can set normally open mode.

Frequent entry and exit, door can be set to normally open model

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

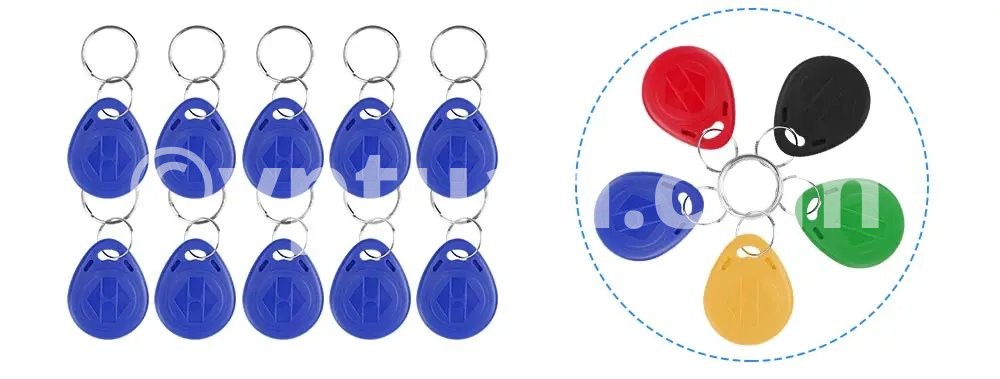

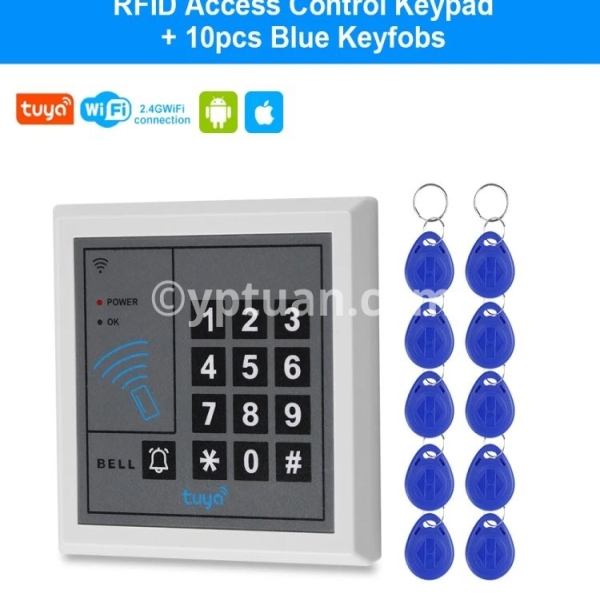

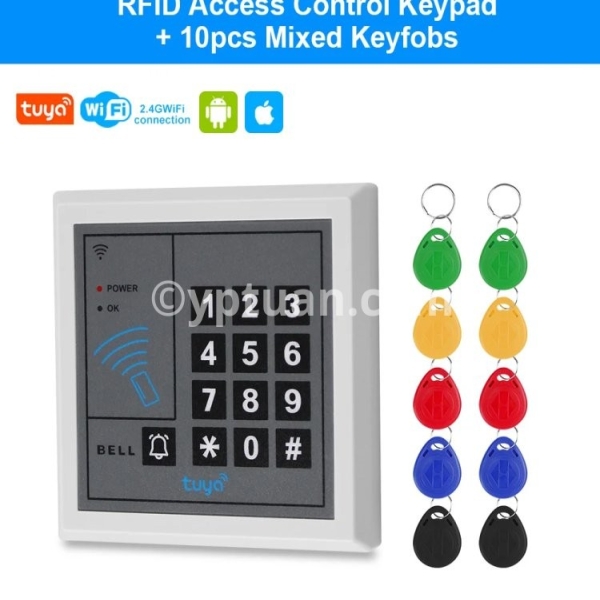

RFID Keyfobs

1. Material: ABS 2. Working Frequency: 125KHz 3. Chip: EM4100 4. Support: read only, not support write. 5. Reading distance: 0-5cm 6. Each one has a metal keyring. 7. Color: As picture show, if you want other color, please lease a message to us.

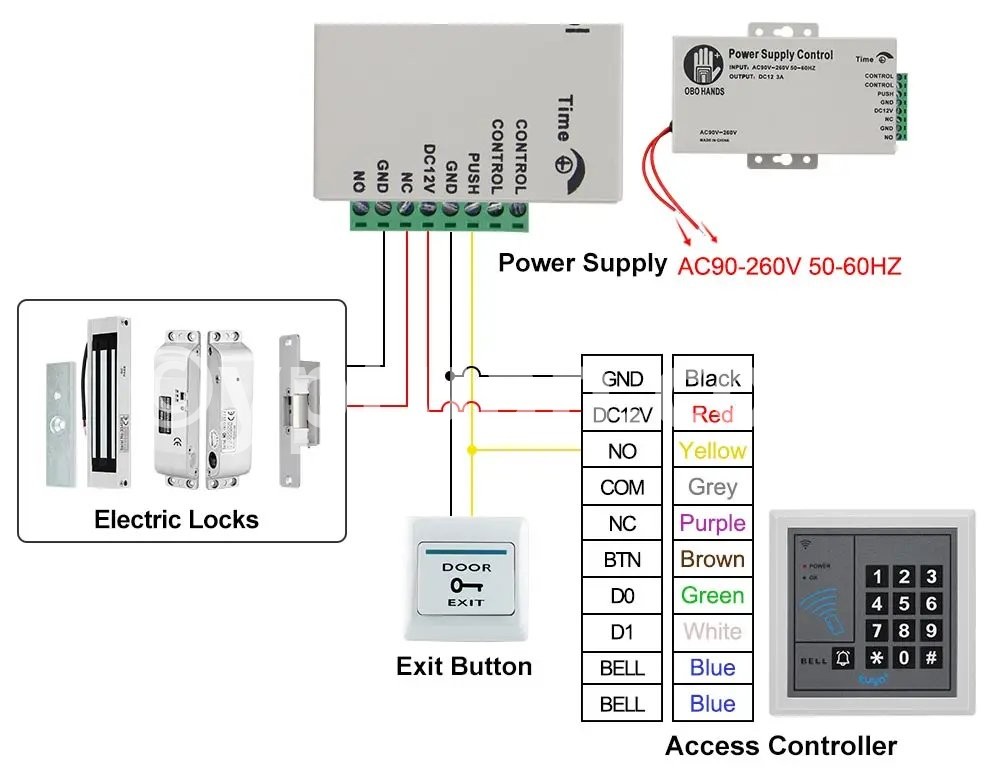

Wiring Diagram:

(Note: Both of the power supply, electric lock, exit button are Not included in the package, need to buy extra)
