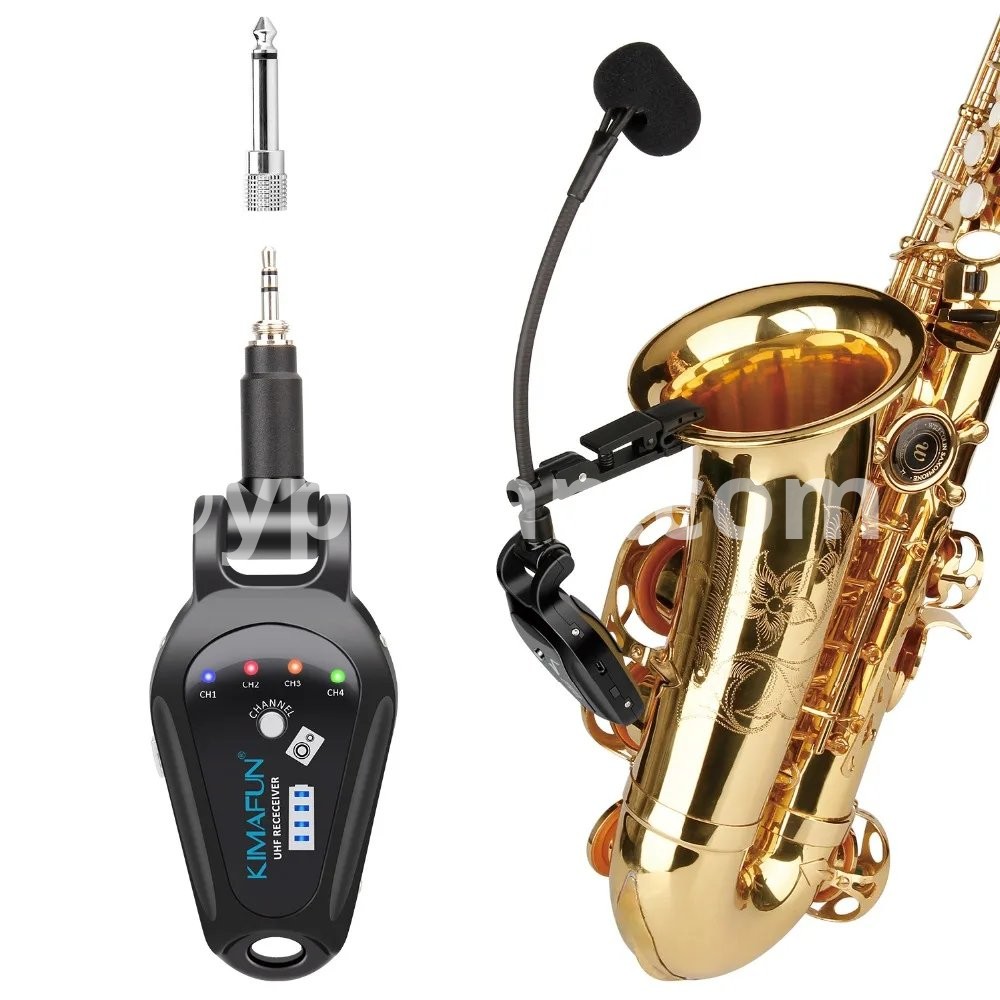

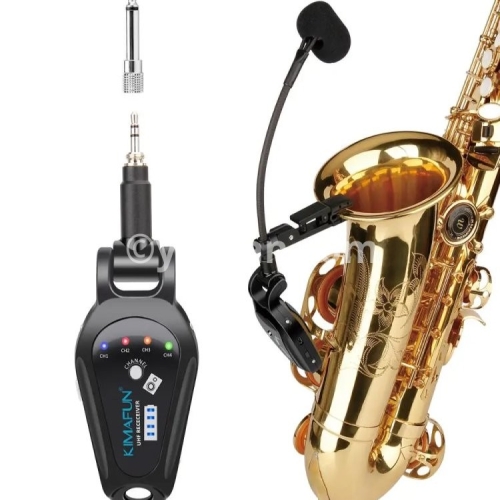

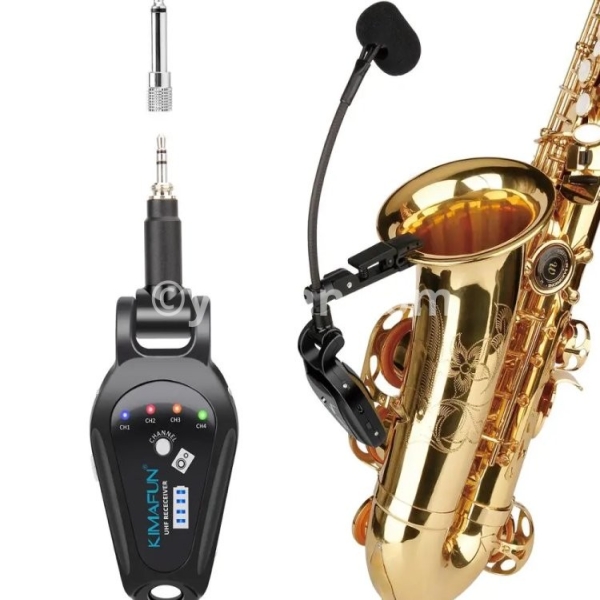

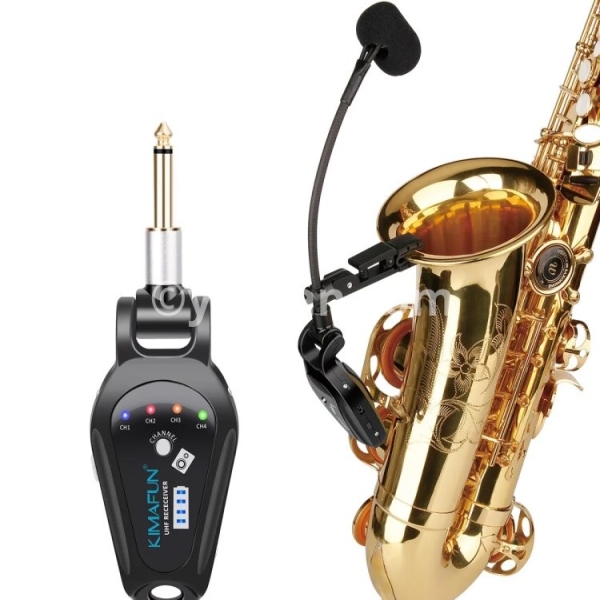

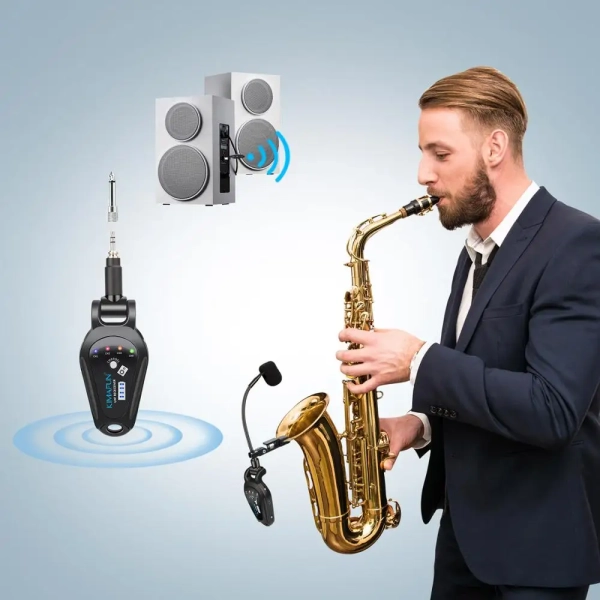

KIMAFUN UHF Wireless Microphone System Clip on Musical Instruments for Saxophone Trumpet Sax Horn Tuba Flute Clarinet Pipe

Technical Parameters

Transmitter

Frequency Range：760-790mHz

Frequency Offset：±48KHz

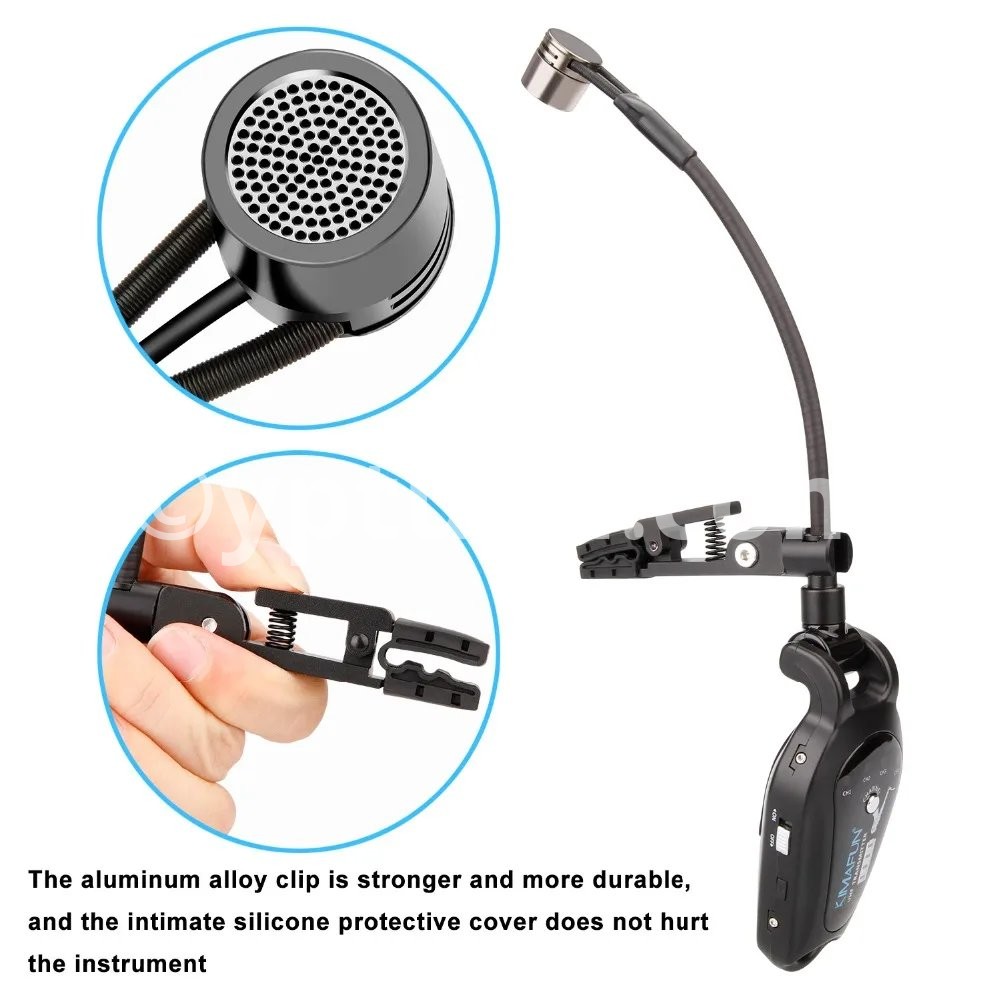

Microphone Type：Condenser

Directivity：Unidirectional

Capsule Dimension:φ14*6.5mm

Sensitivity:﹣48±2dB

Working Current：110mA

Charging Interface：USB 5V/1A

Battery：Lithium Battery 3.7V/800mA

Use time：5-6H

Charging time：2H

Use Distance：30-40M

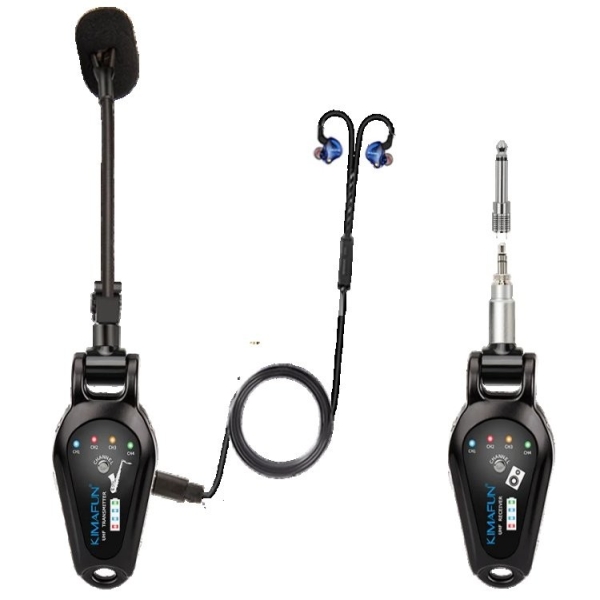

Receiver

Frequency Range：760-790mHz

Channel：Four fixed frequency points 760、770、780、790mHz

Working Current：110mA

Charging Interface：USB 5V/1A

Battery：Lithium Battery 3.7V/800mA

Use time：5-6H

Charging time：2H

Usage Instructions

1.Turn on the transmitter switch and press the channel switch key to switch to CH1 (760M)/CH2(770M)/CH3(780M)/CH4(790M) at will.

2.The indicator of any channel of the transmitter and the corresponding channel of the receiver is on to indicate that the frequency synchronization is successful; the channel indicator of the receiver flashes for a long time to indicate that the frequency is not successful.

3.Volume adjustment: Press the volume key "+" once to increase the volume by 2dB; press the volume key "-" once to decrease the volume by 2dB, and it will remain at the last adjusted volume when you turn off the power.

4.The transmitter is installed on the instrument after successful frequency pairing, and the receiver is inserted into the MIC input port of the device for use.

Note:USB sound adapter usually used in PC and laptops. Especially MAC computers must be used.

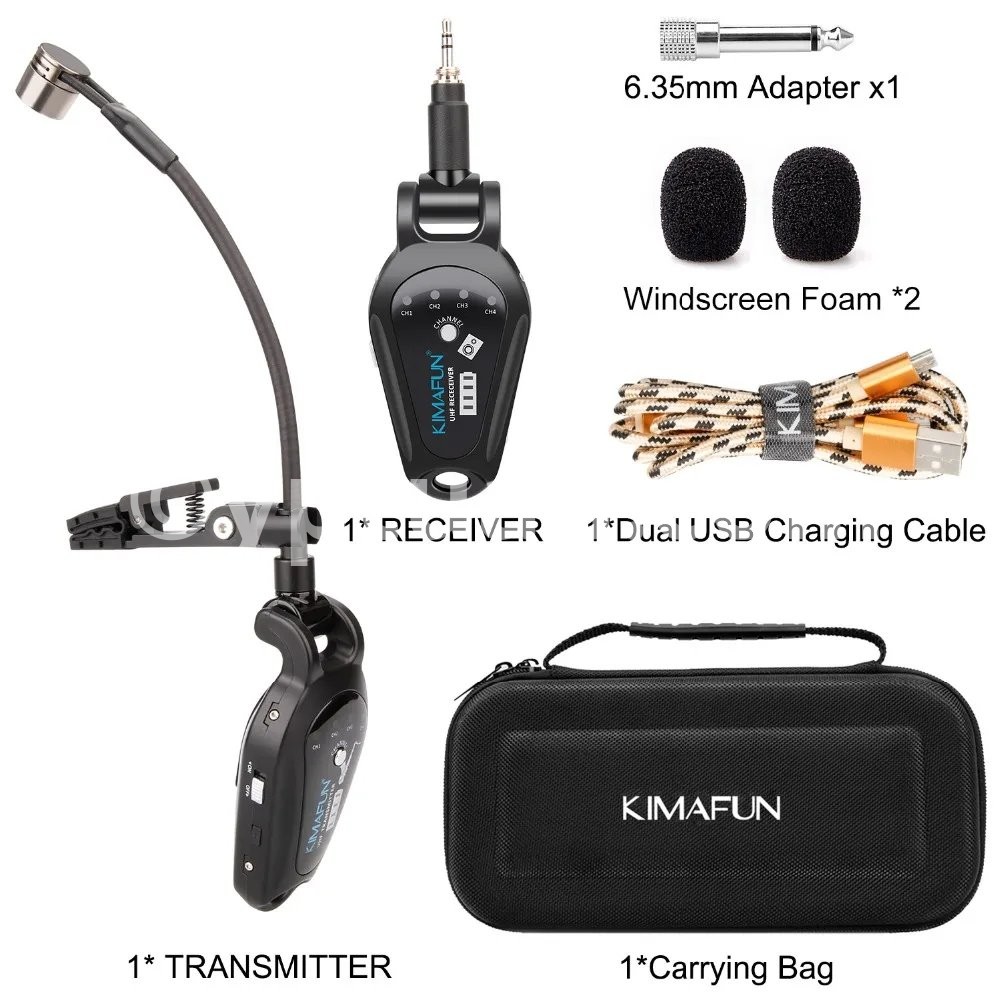

Package Include
