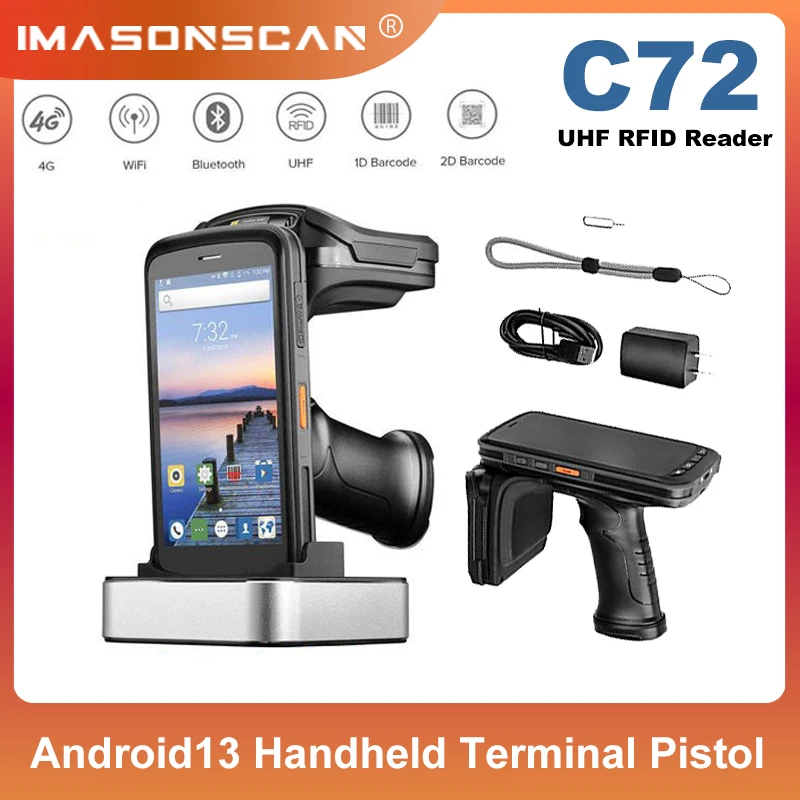

UHF RFID Reader PDA 840-960Mhz Android13 Handheld Terminal Barcode Scanner NFC 4GB 64GB Pistol Grip Data Collector Chainway C72

UHF RFID Reader PDA 840-960Mhz Android13 Handheld Terminal Barcode Scanner NFC 4GB 64GB Pistol Grip Data Collector Chainway C72

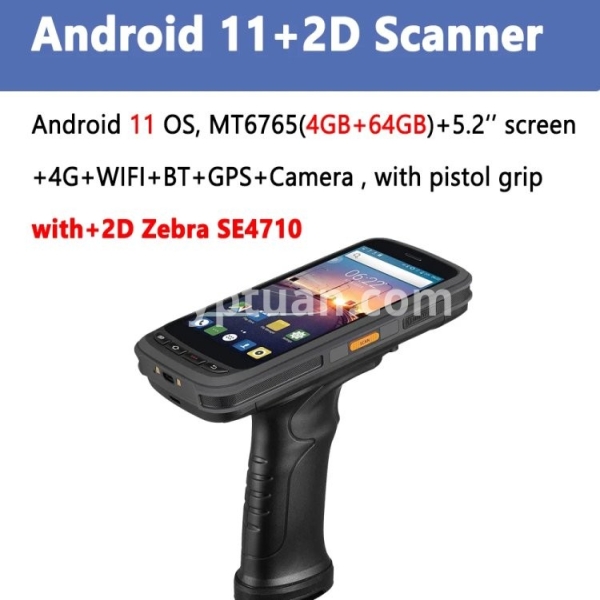

Option 4:

Android 11 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+2D Zebra SE4710 Scanner

Option 5:

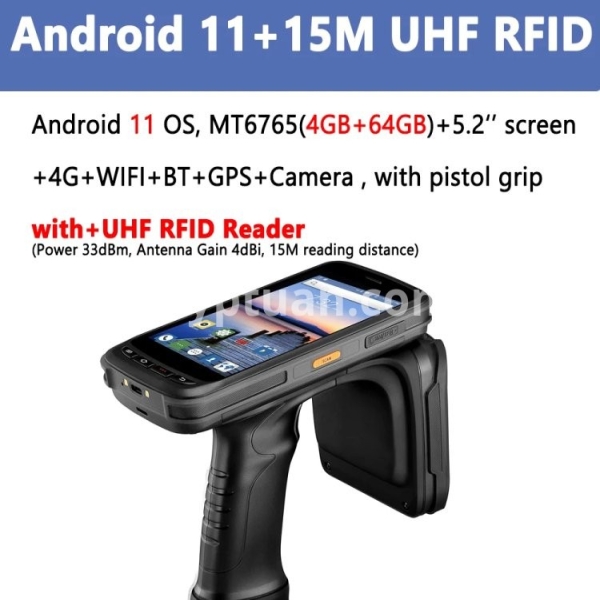

Android 11 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+UHF RFID Reader 15M

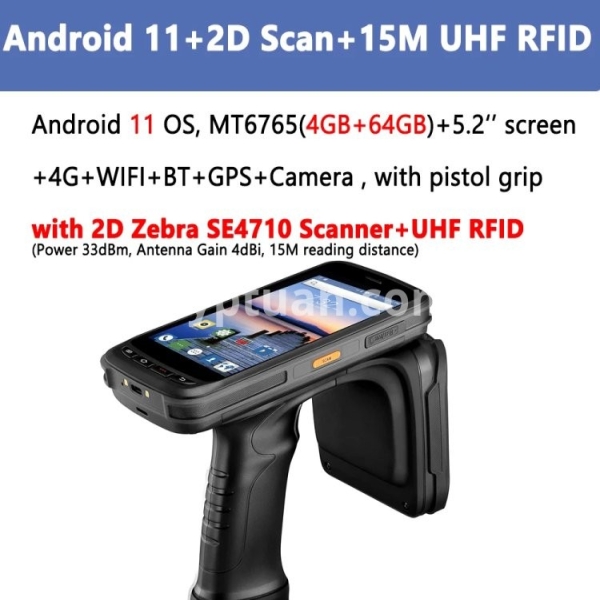

Option 6:

Android 11 MT6765 Cortex-A53 Qcta-core 2.5GHz + 5.2'' Screen + 4G RAM+64GROM + Wifi + BT4.0 + 13MP Camera + GPS + 4G + NFC + SDK+Pistol Grip+2D Zebra SE4710 Scanner+UHF RFID Reader 15M

if you need single charge cradle or 4-cradle charging bar,protect case and so on,please contact with out seller,

Tina Chen  WhatsApp/Skype:+86 13076981898   Email:tina@msench.com

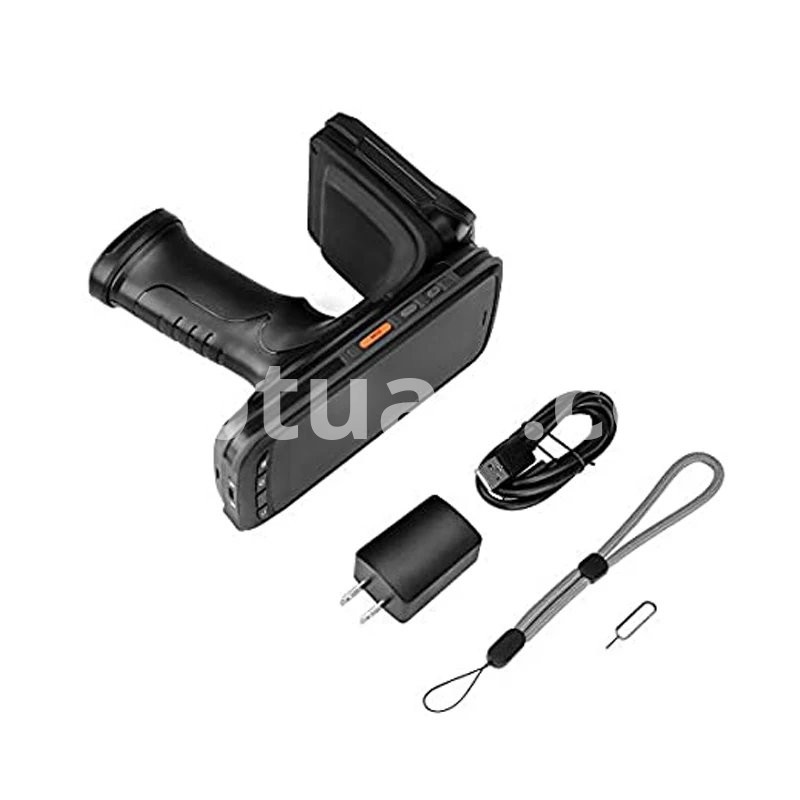

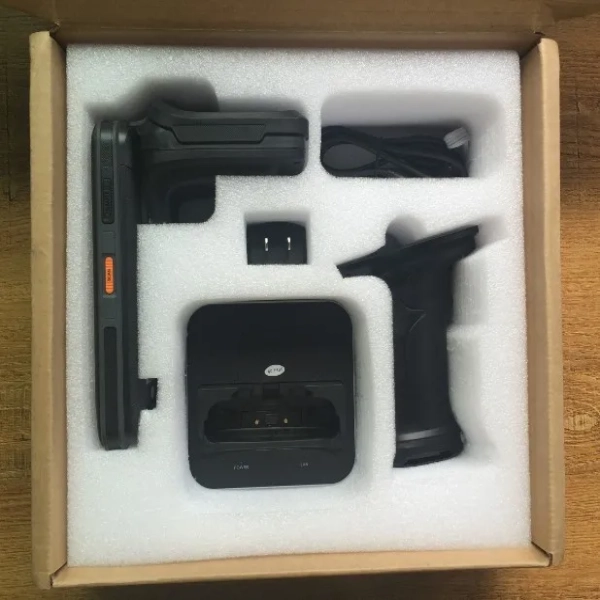

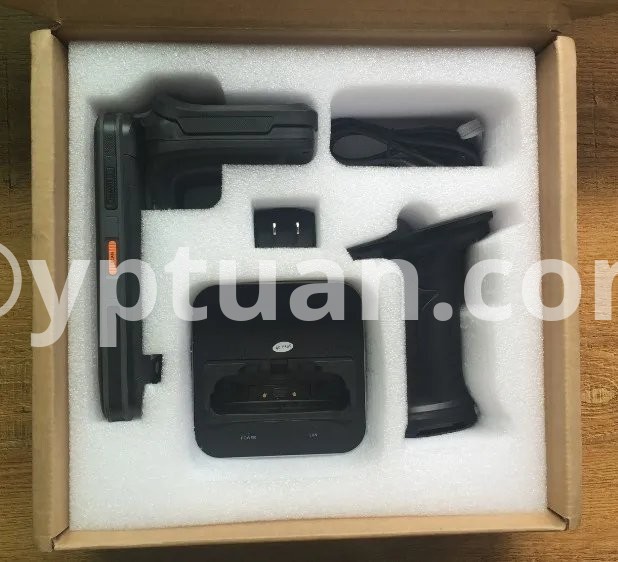

Standard Accessories:

Handheld PDA 1 Pcs, Battery 1pcs, Usb data cable1pcs, AC Adaptor 1pcs

Optional Accessories:

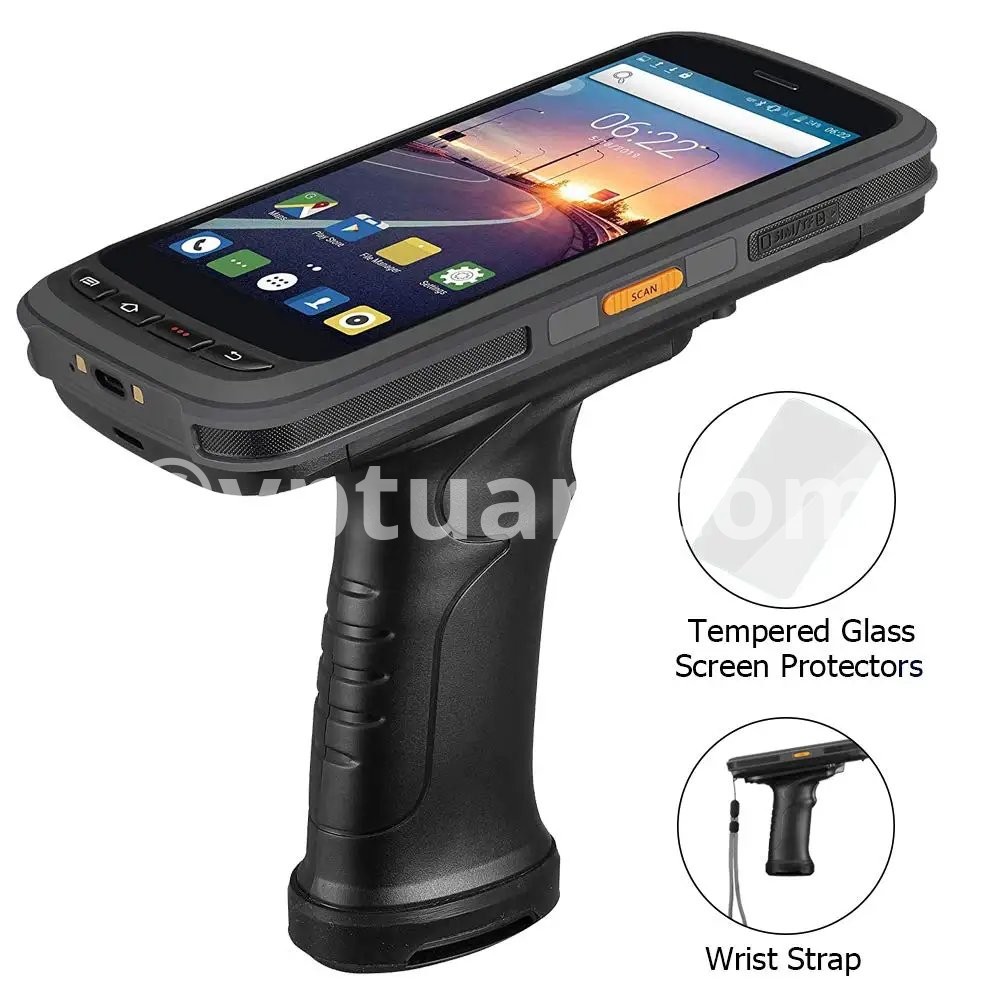

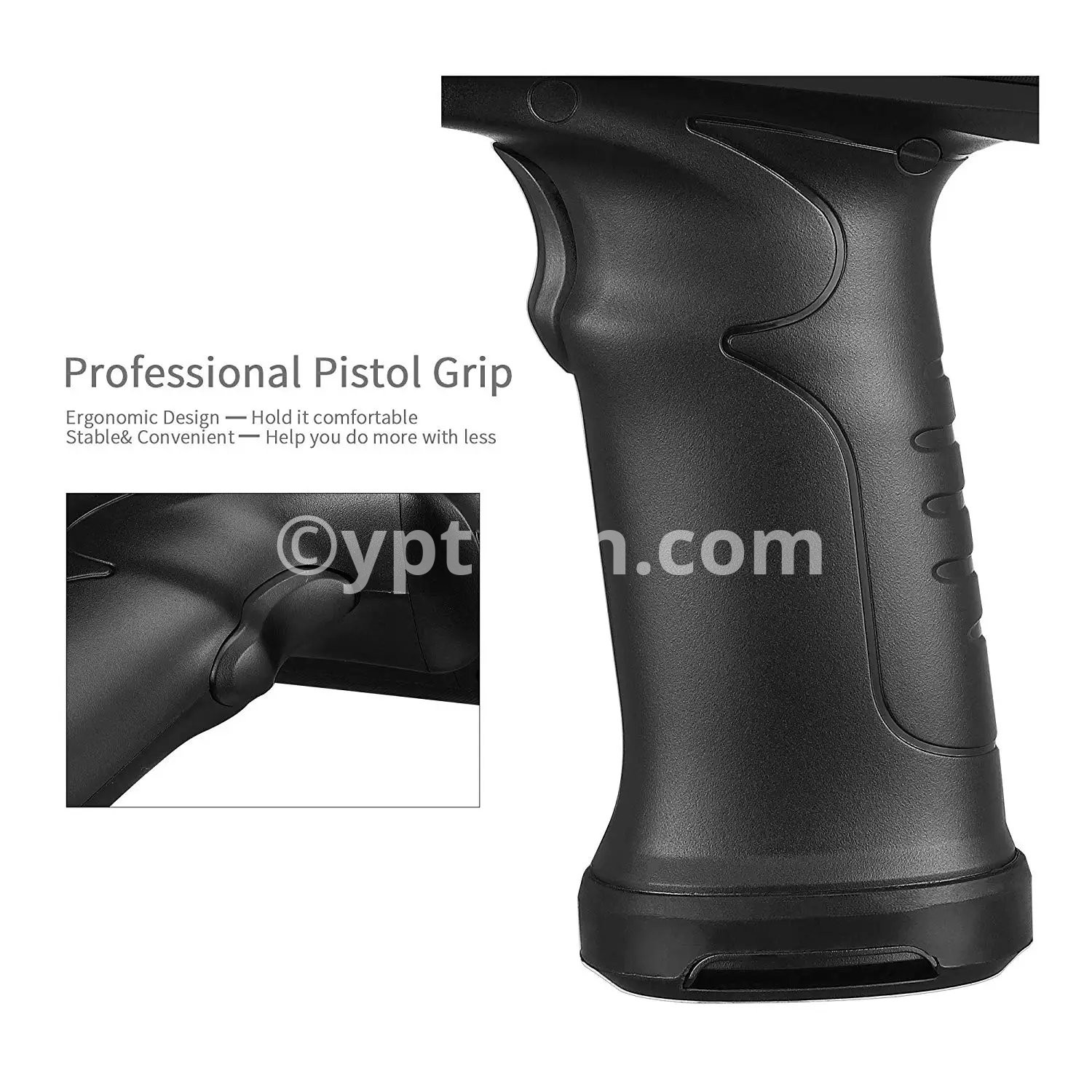

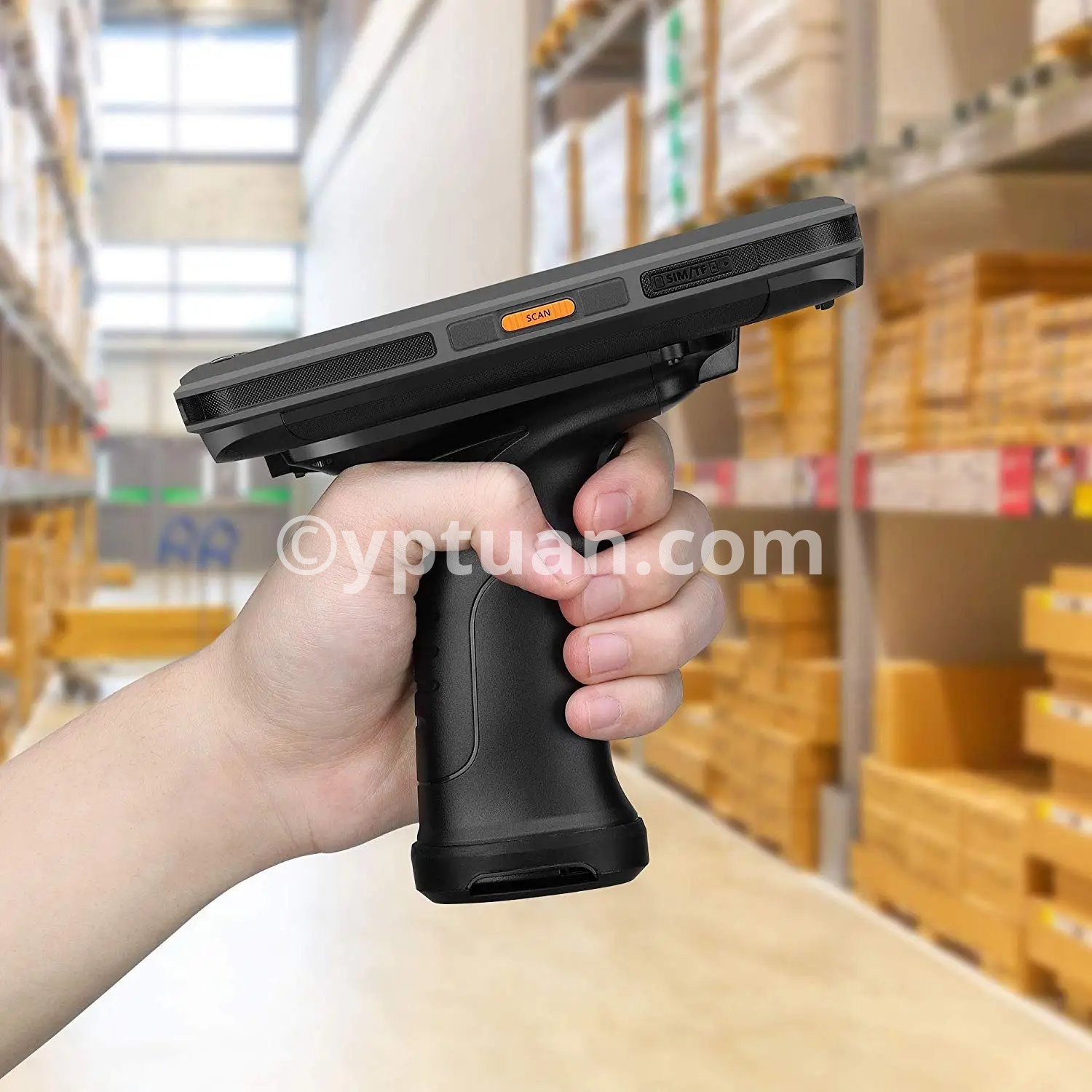

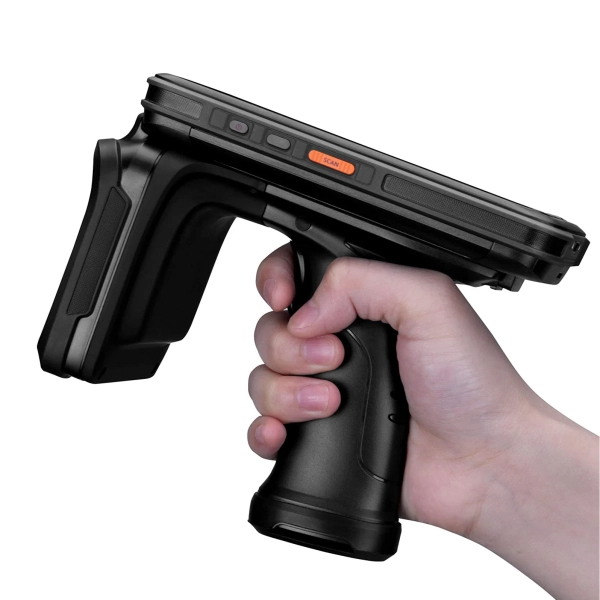

Pistol Grip

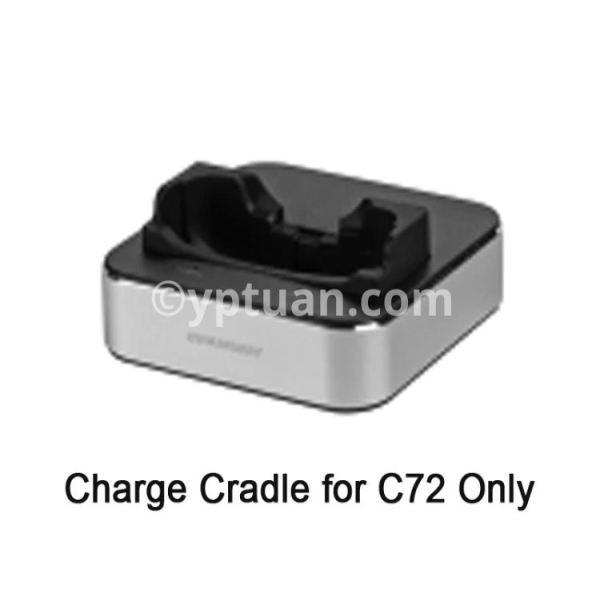

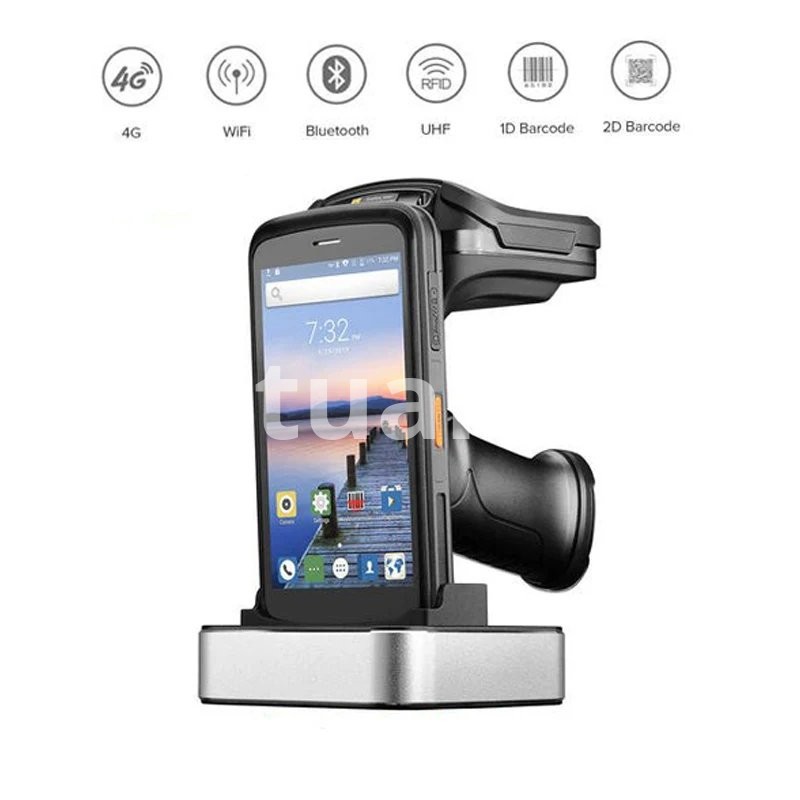

Charging Cradle

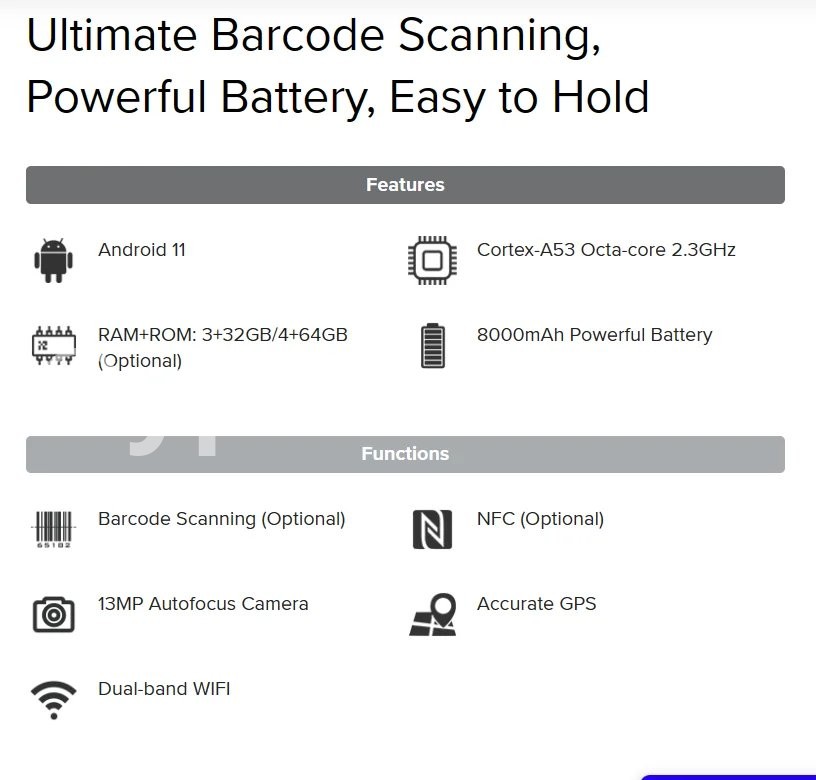

Performance

Android 8.1

Operating System Android 8.1; SafeUEM supported

CPU Cortex-A53 2.5 GHz Octa-core

RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional)

Expansion Supports up to 128 GB Micro SD card

Android 11

Operating System

Android 11; GMS, FOTA, SafeUEM supported.

Committed support for a future upgrade to Android 12,

13, and Android 14 pending feasibility

CPU Cortex-A53 2.3 GHz Octa-core

RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional)

Expansion Supports up to 128 GB Micro SD card

Communication

Android 8.1

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal

antenna

Bluetooth Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS

GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna

WWAN (China)

2G: 900/1800 MHz

3G: WCDMA: B1,B8

CDMA2000 EVDO: BC0

TD-SCDMA: B34,B39

4G: B1,B3,B5,B8,B34,B38,B39,B40,B41

WWAN (Overseas)

2G: 850/900/1800/1900 MHz

3G: B1,B2,B4,B5,B8

4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66

Android 11

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal

antenna

Bluetooth Bluetooth 5.0

GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900

3G: WCDMA: B1/B2/B4/B5/B8

CDMA2000 EVDO: BC0

TD-SCDMA: A/F

4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/

B34/B38/B39/B40/B41

Physical Characteristics

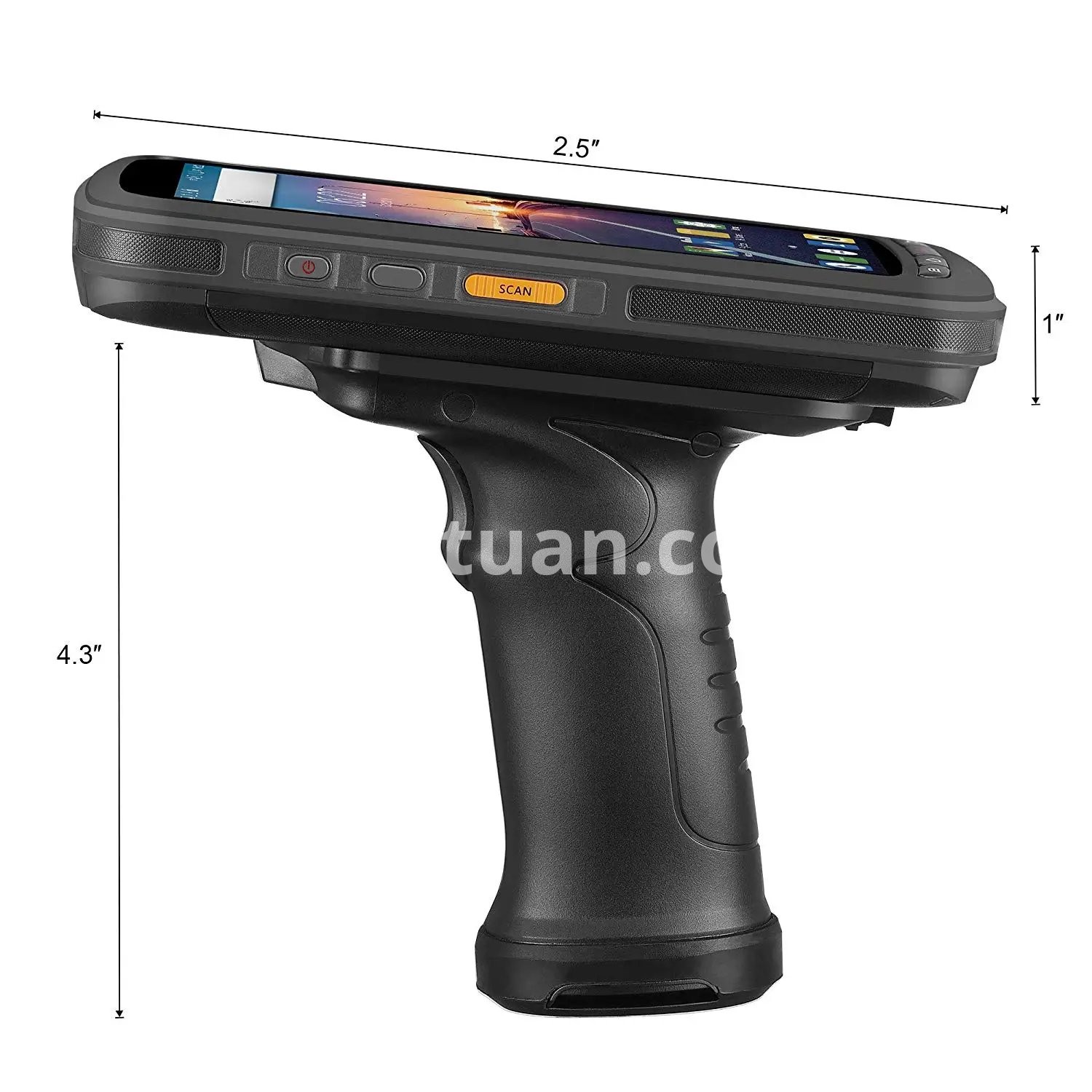

Dimensions 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

Weight 654 g / 23.07 oz.

Display 5.2'' IPS LTPS 1920 x 1080

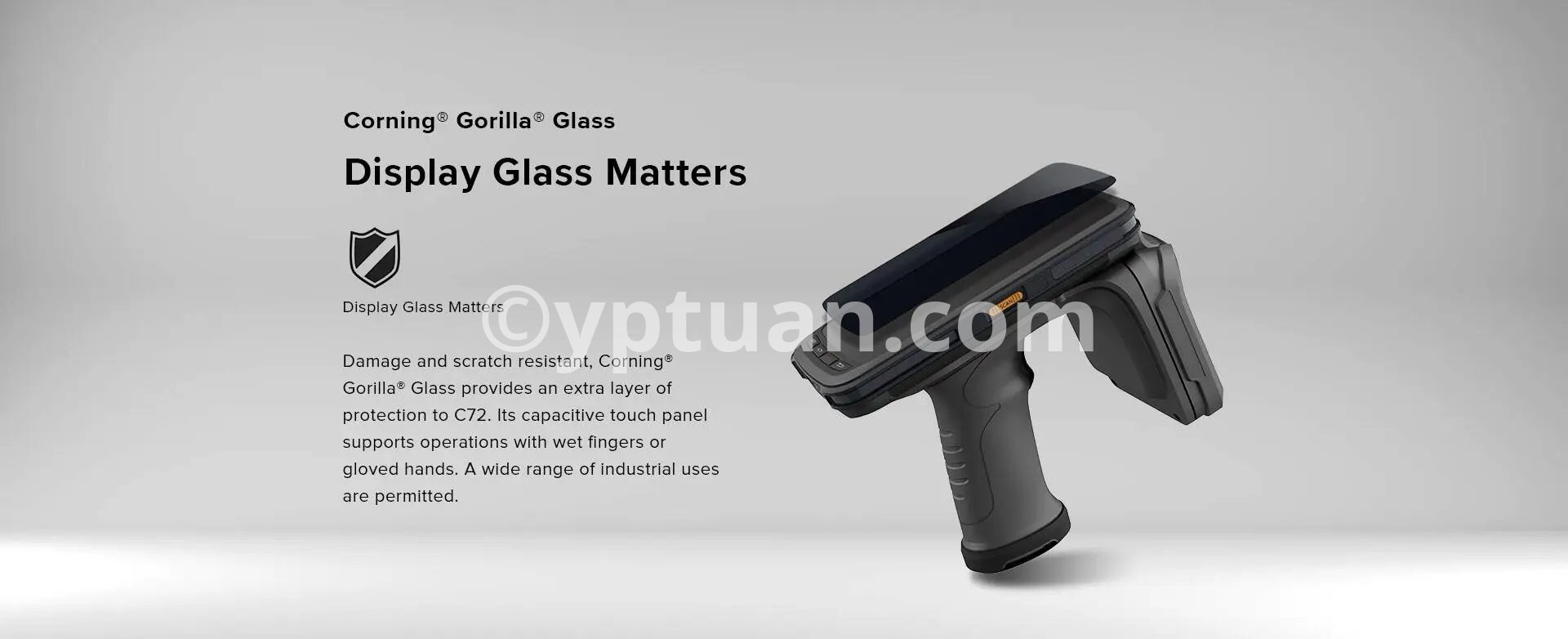

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and

wet hands supported

Power

Li-ion, rechargeable, 8000 mAh

Standby: over 500 hours

Continuous use: over 12 hours (depending on user

environment)

Charging time: 3-4 hours (with standard adaptor and

USB cable)

Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported

Sensors Light sensor, proximity sensor, gravity sensor

Notification Sound, LED indicator

Audio 1 microphone; 1 speaker; receiver

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional

key

User Environment

Operating Temp. -4 o F to 122 o F / -20 o C to 50 o C

Storage Temp. -40 o F to 158 o F / -40 o C to 70 o C

Humidity 5% RH - 95% RH non condensing

Drop Specification

Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the

concrete across the operating temperature range

Tumble

Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing IP65 per IEC sealing specifications

ESD ±15 KV air discharge, ±6 KV conductive discharge

Developing Environment

SDK Chainway Software Development Kit

Language Java

Tool Eclipse / Android Studio

Data Collection

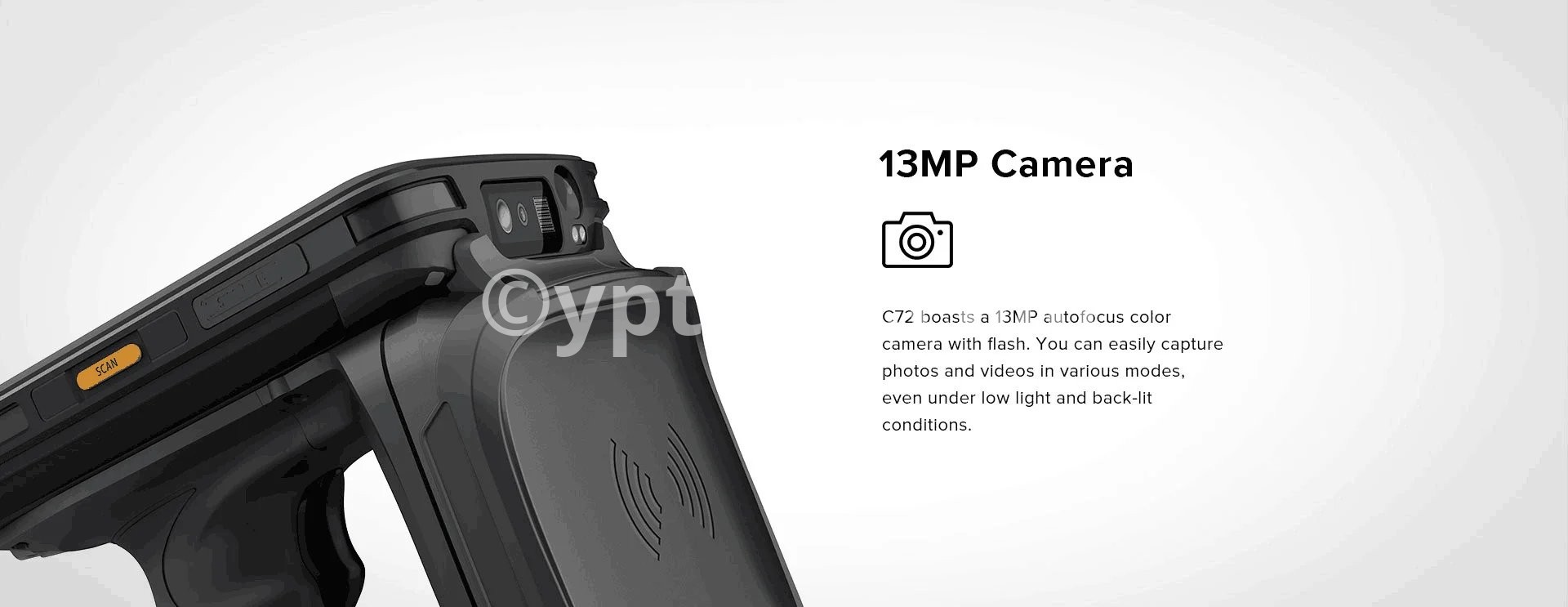

Camera

Camera 13 MP Autofocus with flash

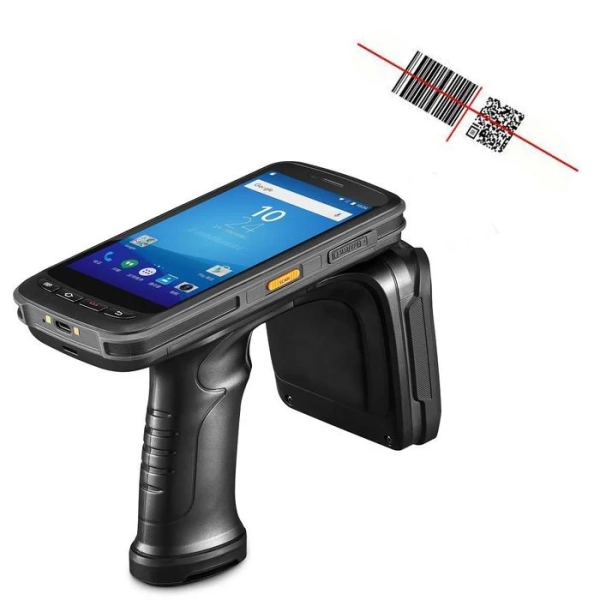

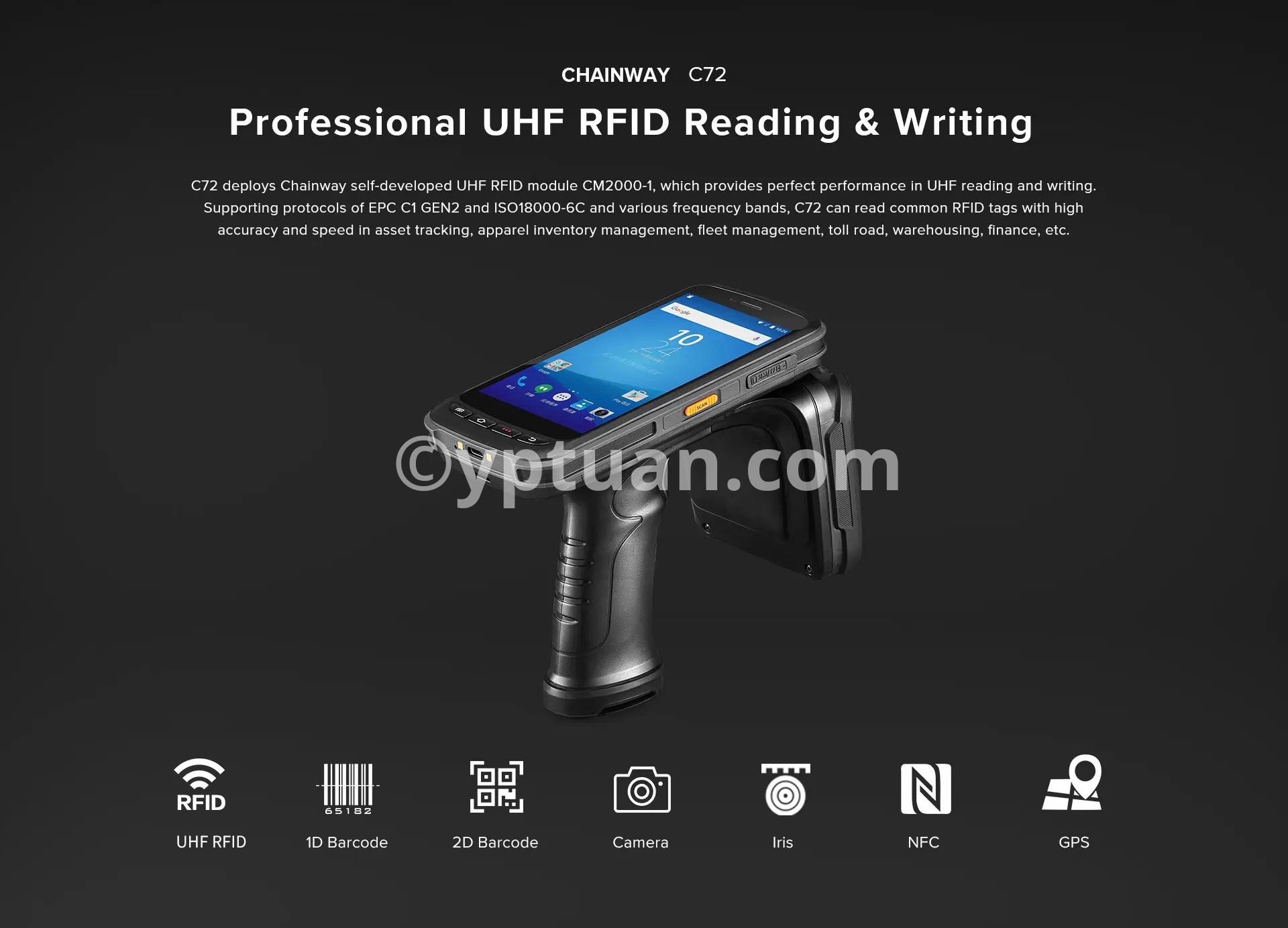

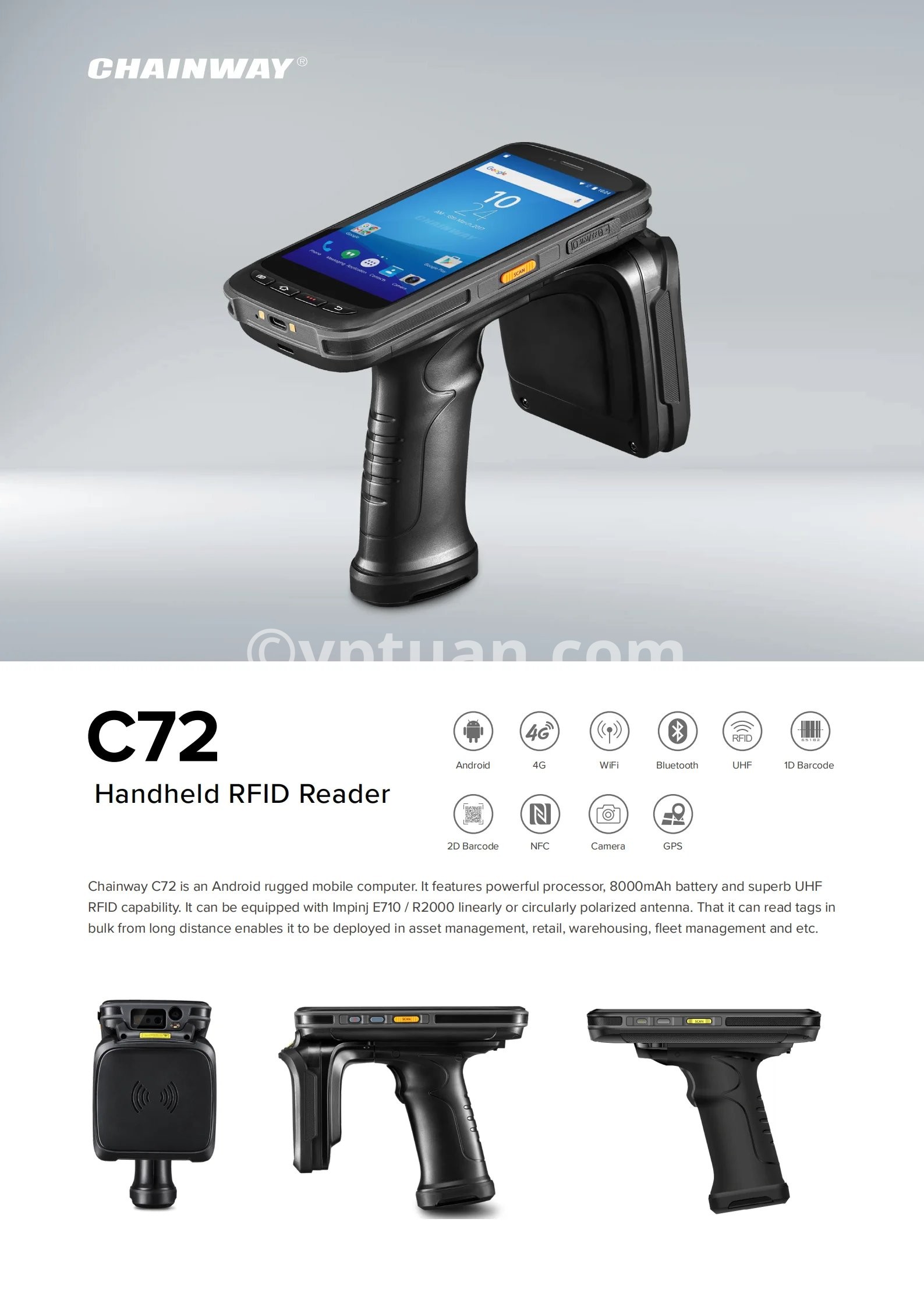

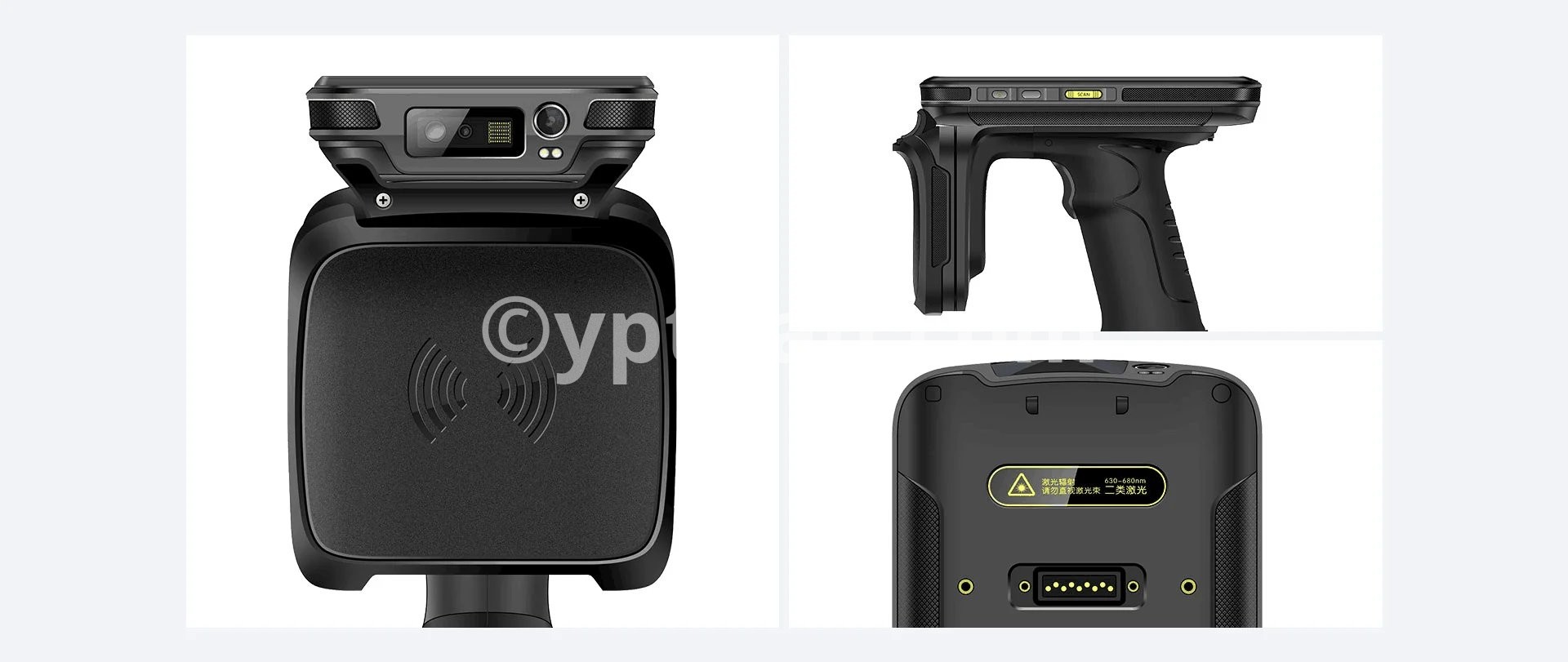

RFID (Optional)

UHF

Engine

CM710-1 module based on Impinj E710

CM2000-1 module based on Impinj Indy R2000

Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol EPC C1 GEN2 / ISO18000-6C

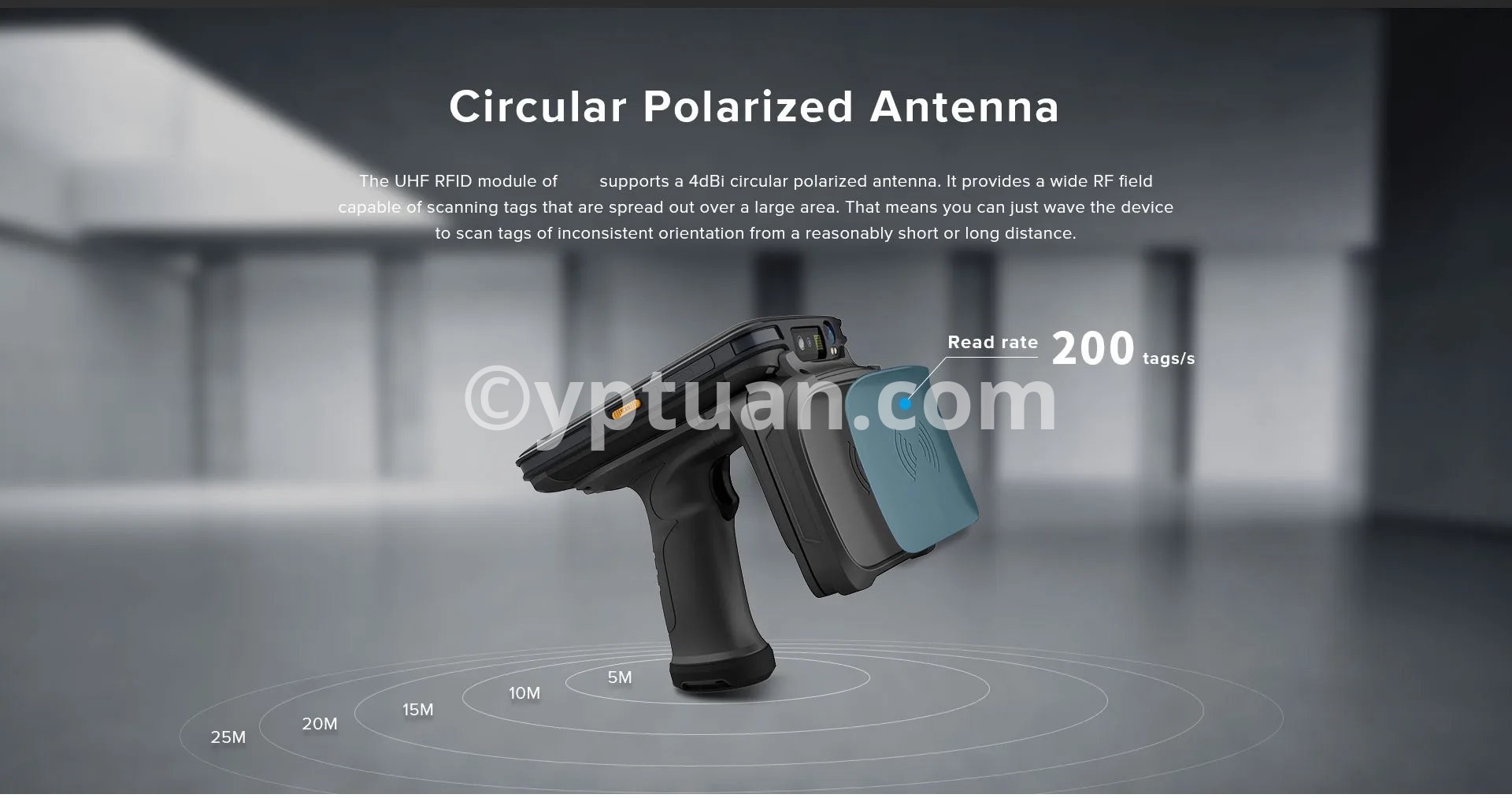

Antenna Circular polarization (4dBi), linear polarization(1.8dBi)

Power

1 W (30 dBm, +5 dBm to +30 dBm adjustable)

2 W Optional (33 dBm, for Latin America, etc.)

R/W range

Up to 15 m (circular polarization, open outdoors, Impinj

MR6 tag); up to 7 m (linear polarization, open outdoors)

Fastest Read Rate 900+ tags/sec (circular polarization)

* Ranges and rates depend on tags and environment

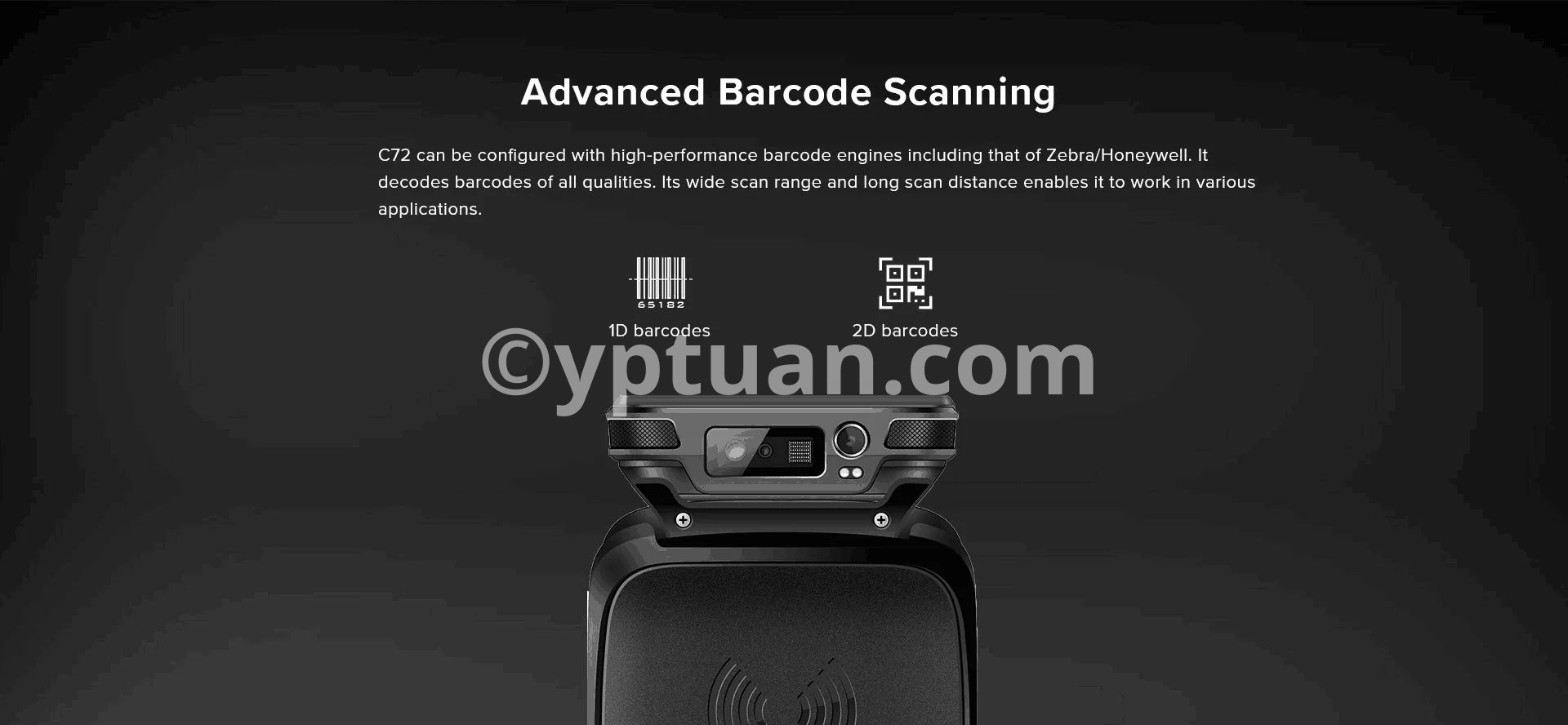

Barcode Scanning (Optional)

1D Linear Scanner Zebra: SE965; Honeywell: N4313

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11,

Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,

Codabar, MSI, RSS, etc.

2D Imager Scanner

Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP;

Honeywell: N6603

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39,

Datamatrix, QR code, Micro QR code, Aztec,

MaxiCode; Postal Codes: US PostNet, US Planet,

UK Postal, Australian Postal, Japan Postal, Dutch

Postal (KIX), etc.

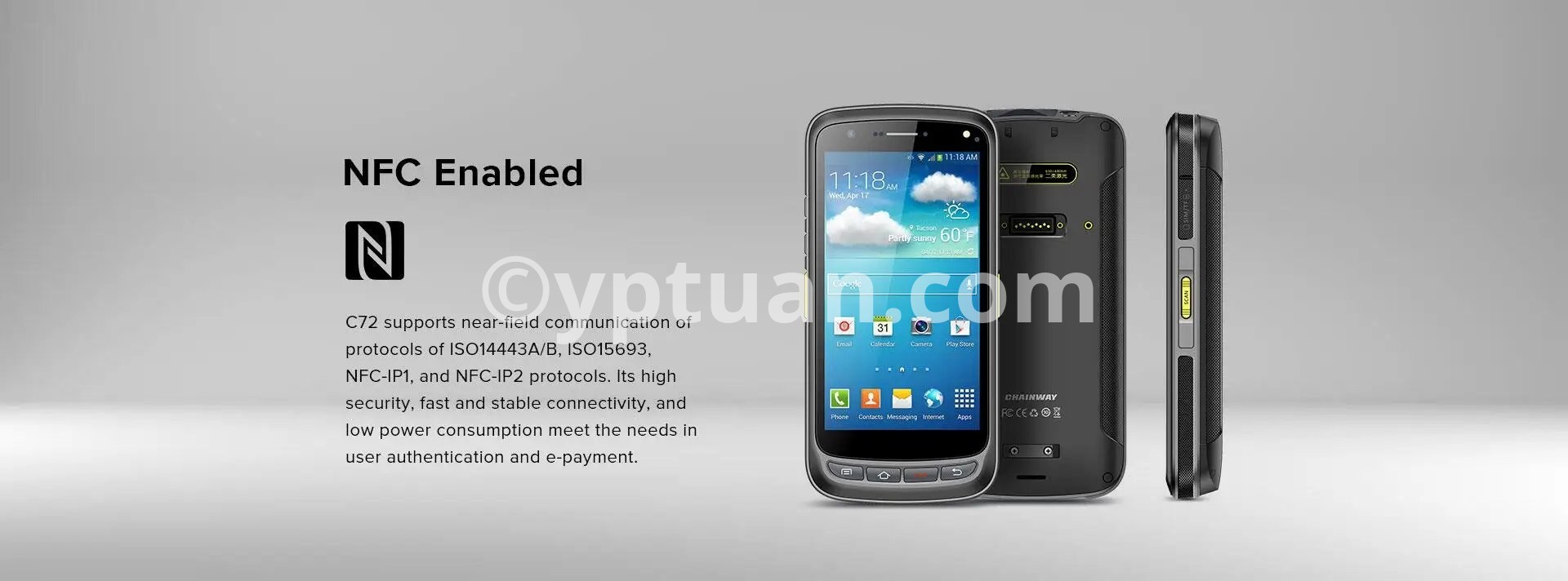

NFC

Frequency 13.56 MHz

Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

Chips M1 card (S50, S70), CPU card, NFC tags, etc.

Range 2-4 cm

Accessories

Standard AC Adaptor, USB Cable, etc.

Optional Cradle, Holster , etc.

* For detailed specification, please check Accessory Guide.
