24V Solar Powered COB LED Strip Light Double Side Glow 320 LEDs/m Waterproof Flexible Neon Tape Indoor Outdoor Linear Lighting

Note

The light strip that just arrived is not lit. Generally, the solar panel does not have sufficient power and needs to be fully charged before use. If you don't know how to use it, please contact our customer service. There will be corresponding usage steps.

Specifications：

Type: 24V Solar Powered COB LED Strip Light

Name:Double Side Glow COB LED Strip Light

LED quantity: 320LEDs/meter

PCB Size: Width:12mm Height:5mm

Power: 1-13W/m(24V)

Color rendering index CRI >90RA

IP Rate: IP65/IP67 waterproof(casing waterproof), can be used outdoor

Cutting Length:

-about 5cm can be cut at marked position(DC24V)

Lighting Angle: 120 ° ~ 140 °

Length: 0.5m / 1m / 2m / 3m / 4m / 5m / 6m / 7m / 8m / 9m / 10m(DC24V)

Lighting Color: Warm White(3000-3500K), Natural White(4000-4500K), Cold White(6000-6500K）

Power connection interface cord length: About 1.2 meter

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180

0.5m-2m come with 1.3W controller

3m-5m come with 2.8W controller

6m-10m come with 6W controller

IP65/IP67 waterproof light strips can be placed underwater , such as in fish tanks, swimming pools, etc.

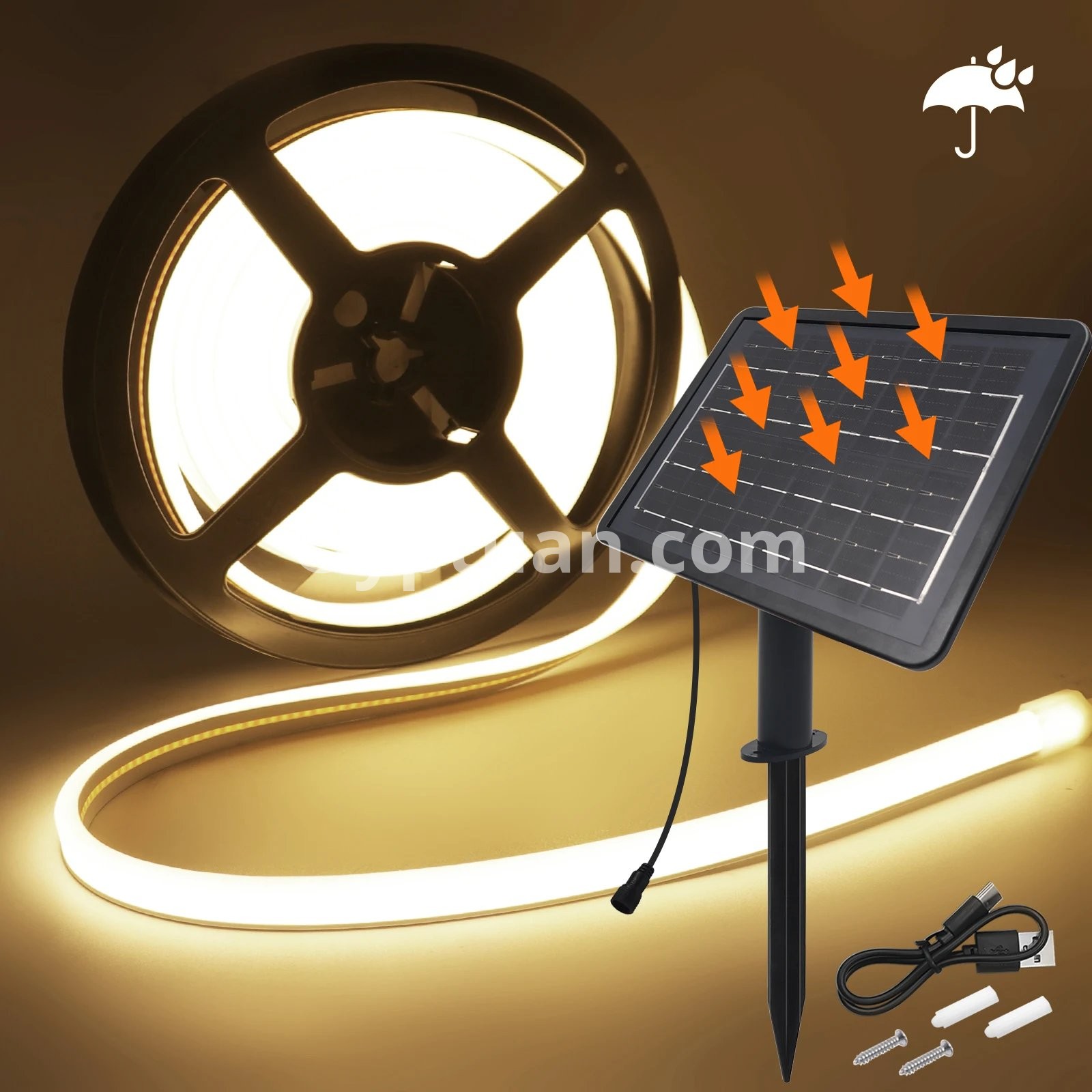

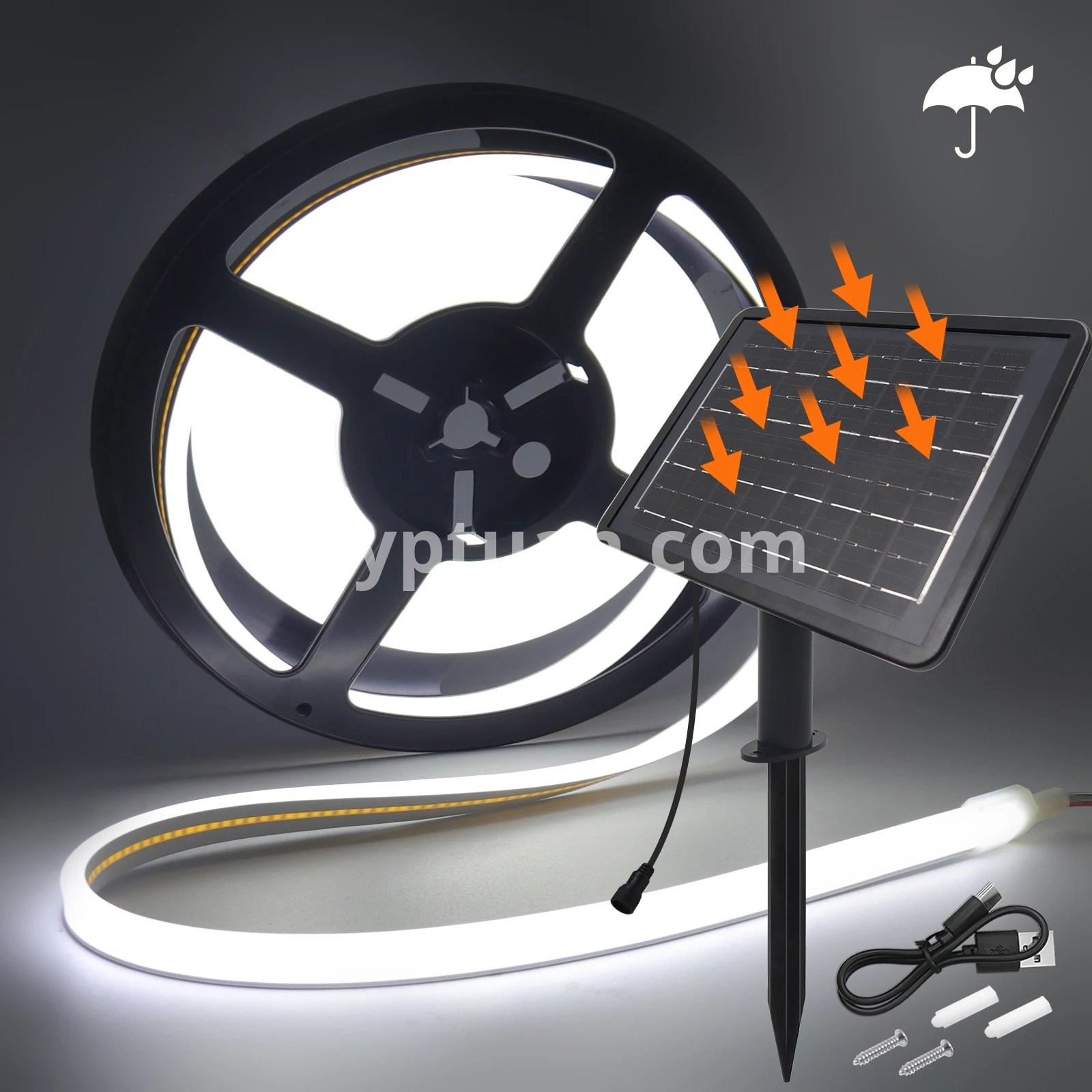

Package includes：

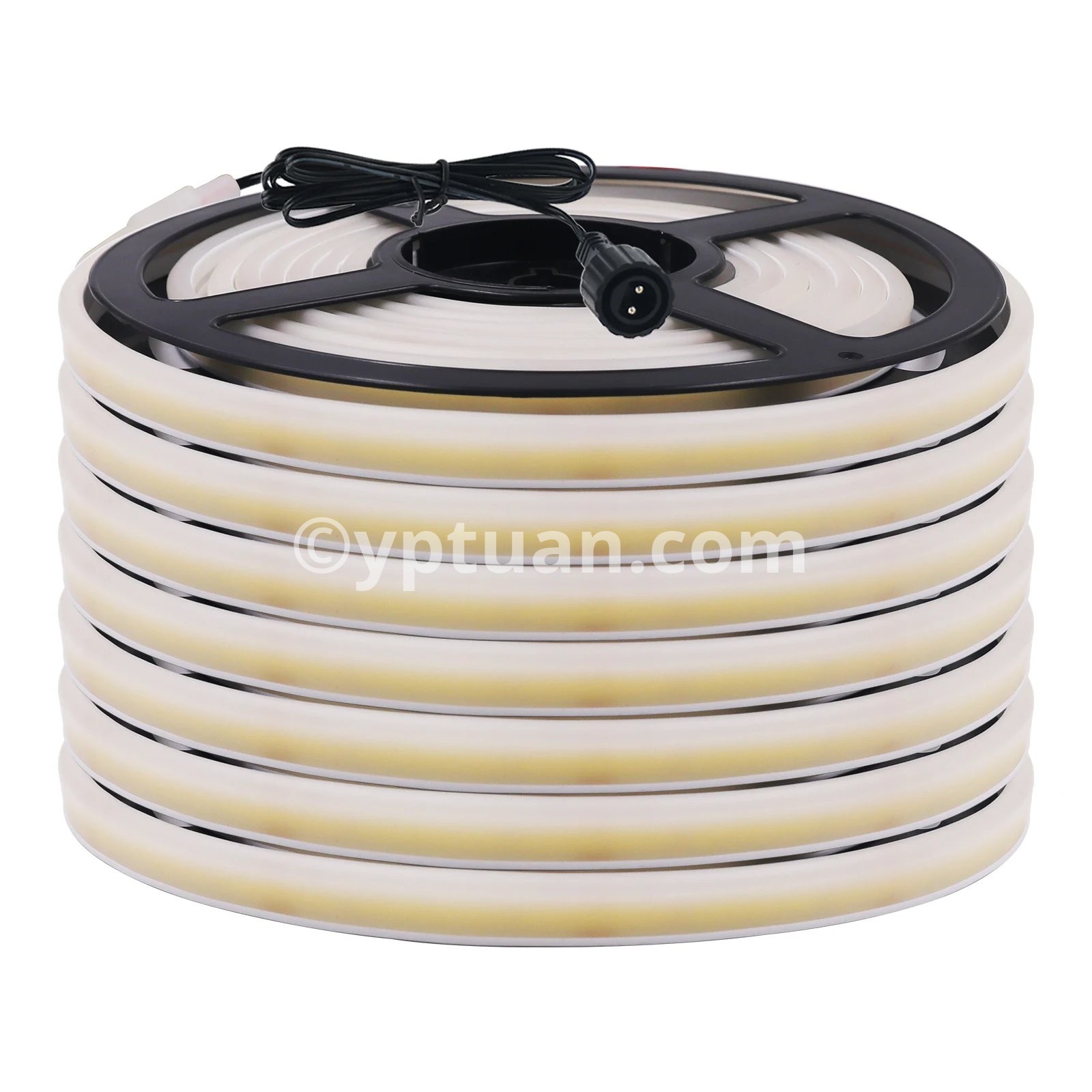

Solar Powered LED Strip Light

1X Double Side Glow COB LED Strip

1X Solar Panel

1X Installation screws

1X USB charging

1X Swivel Bracket

Installation preparation

‌Site selection requirements

1. Choose a position where the sunlight is directly exposed during the day is ≥6 hours to ensure that the solar panels are not blocked by the sun.

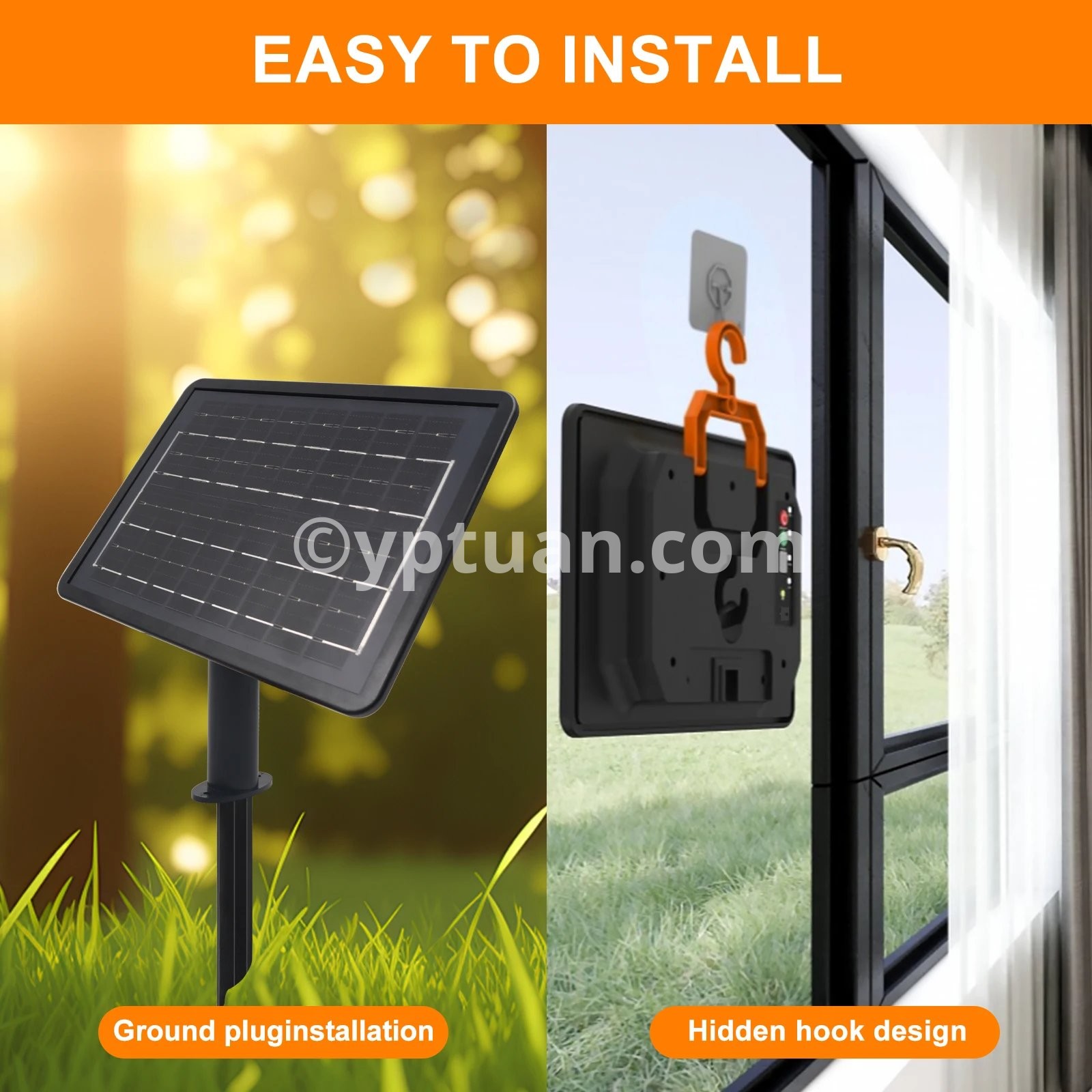

2. The light strip can be hung from the wall, bracket or paved flat on the ground (some models support ground insertion)‌

‌Component Connection

3. Connect the light strip to the solar panel through a waterproof interface to confirm that the buckle is completely locked‌

Models equipped with remote control must first be aligned with the front of the light strip and press any function keys to complete the pairing‌

Charging and startup

‌1. Charging method‌

‌Solar Charging‌: Place the solar panels in the sun during the day to automatically charge (recommended daily charging)‌

‌Emergency cable charging‌: Connect the charging cable through the USB interface to recharge the charge (applicable on rainy days)‌

‌2. Turn on the light to trigger ‌

Press "ON" to Turn it on, press "OFF" to turn it off immediately

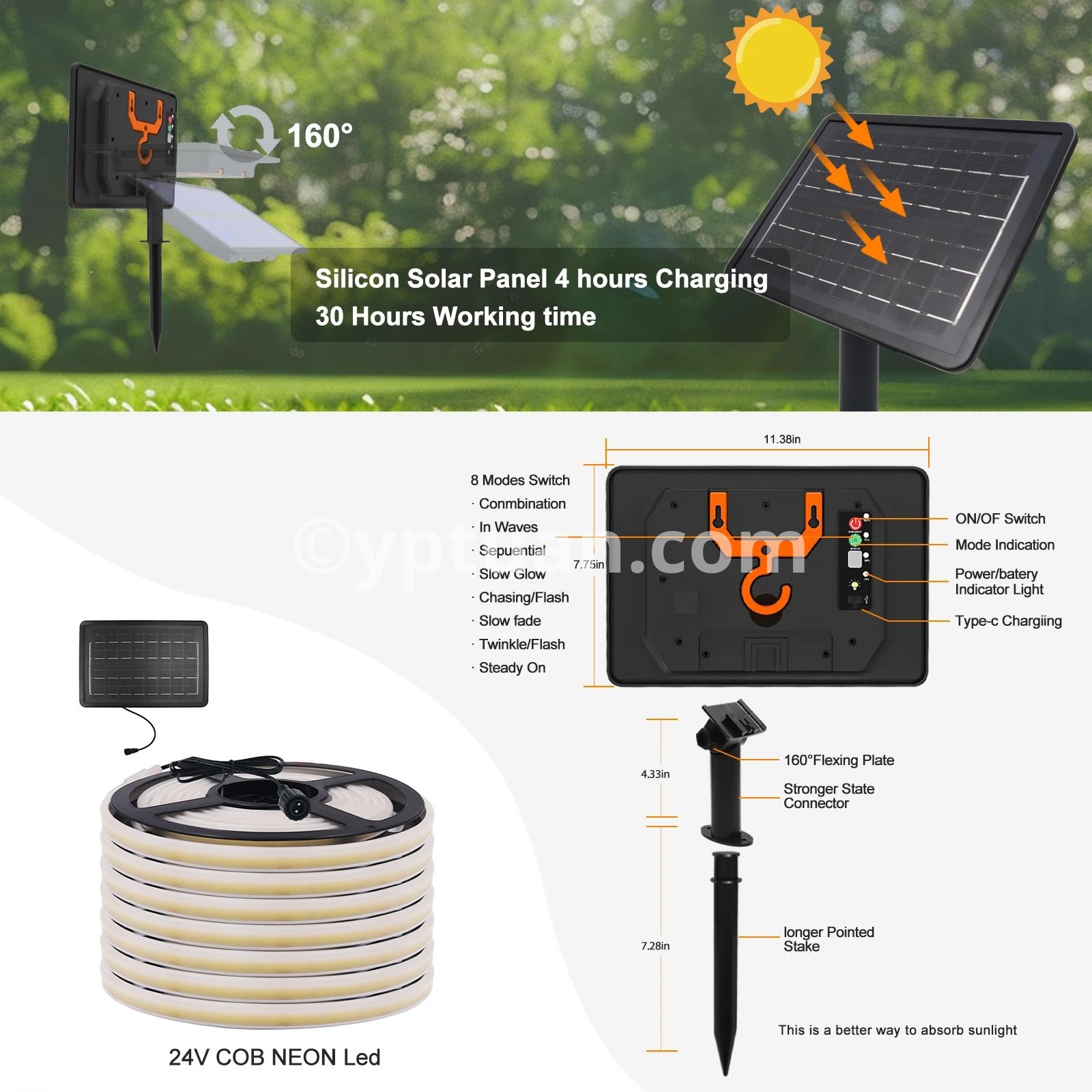

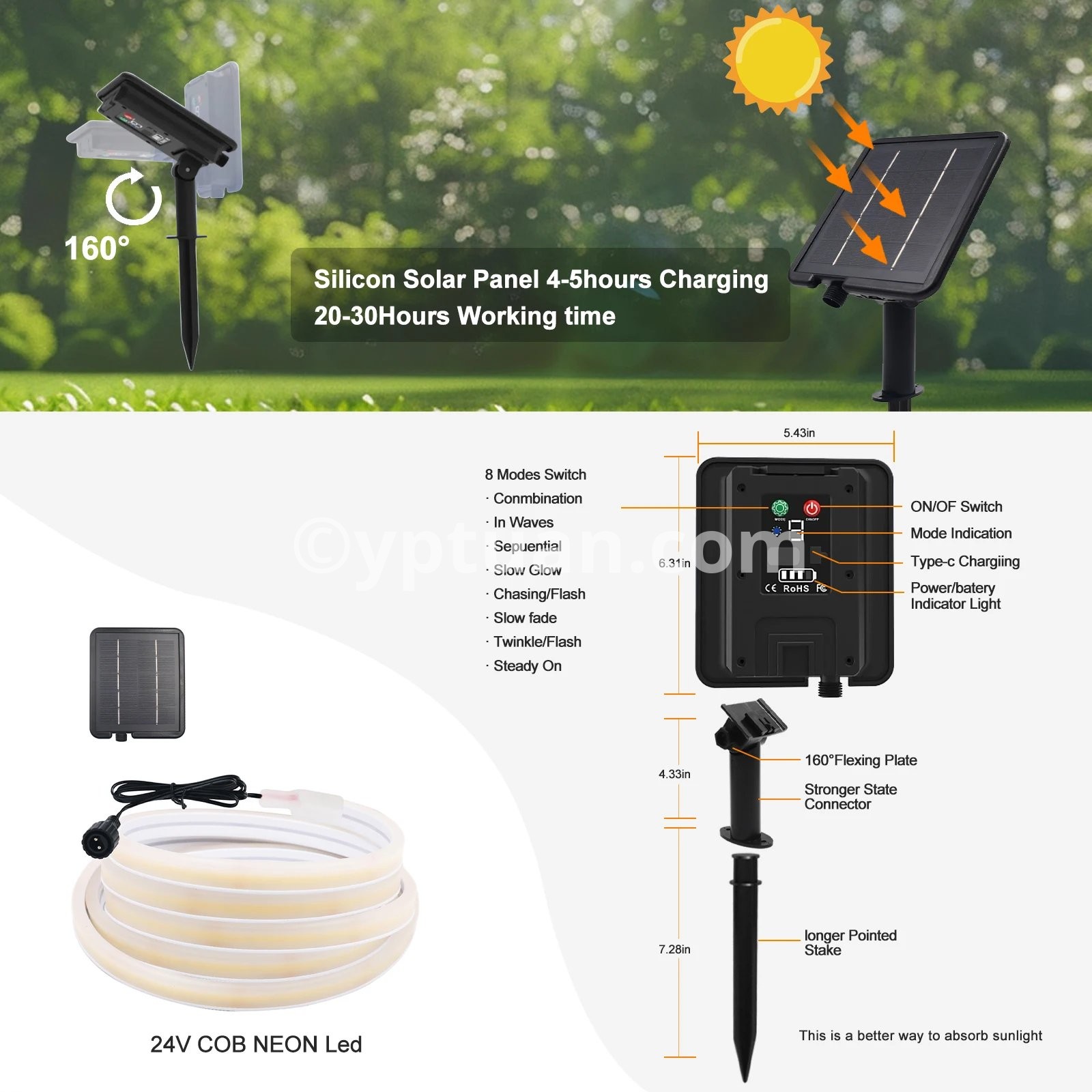

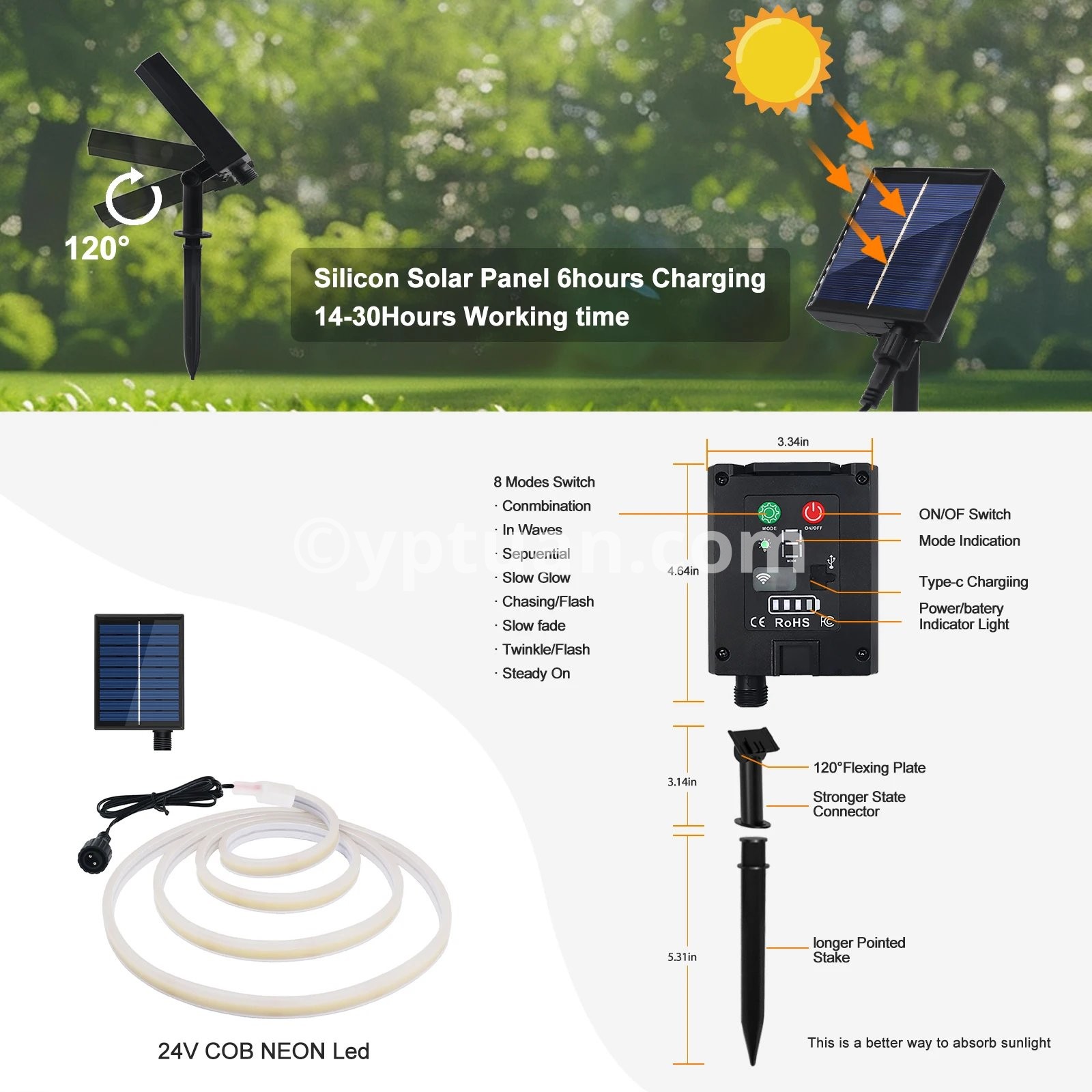

3.Power display light

There is a power display, which makes it easier for you to charge solar panels in time

4.8 modes for switching the light strips in solar panels

Conmbination

In Waves

Sepuential

Slow Glow

Chasing/Flash

Slow fade

Twinkle/Flash

Steady On

Maintenance and precautions

‌1. Daily maintenance‌

Regularly wipe the dust on the surface of solar panels with a soft cloth to maintain photoelectric conversion efficiency‌

It is recommended to reclaim indoor storage when it is below -10℃ in winter (except for lithium battery anti-freeze models)

‌2. Troubleshooting‌

Check whether the battery polarity is installed correctly when the light strip is not on (the positive electrode is facing the lamp head/the negative electrode is facing the tail)‌

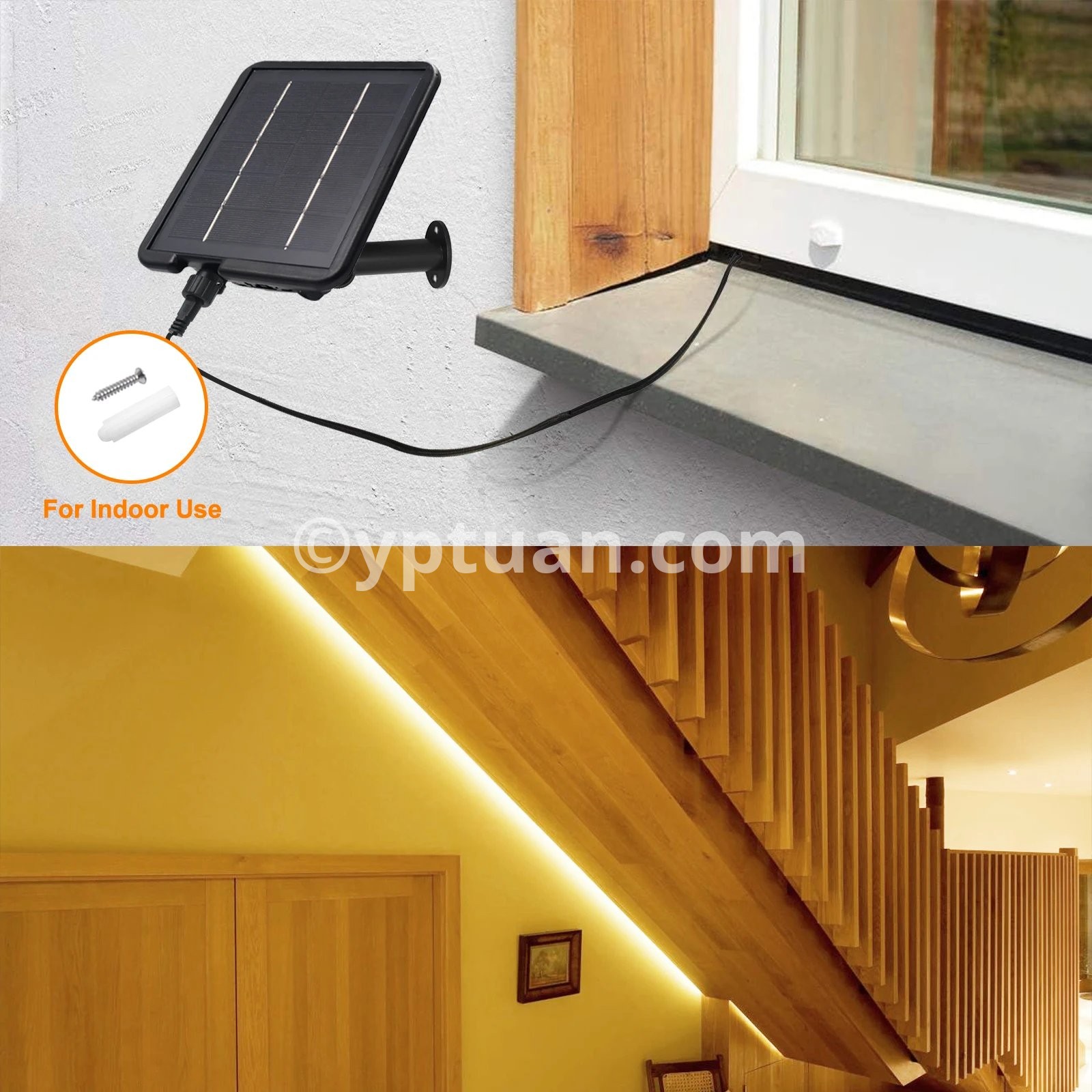

Suitable for indoor and outdoor scenes

-During charging of solar panels, please do not light the light strip at the same time, as this will damage the light strip and will not light the light strip. Please use it in a place without direct sunlight when charging

1.2M waterproof power cord

-When used outdoors, there will be a waterproof power cord, about 1.2M

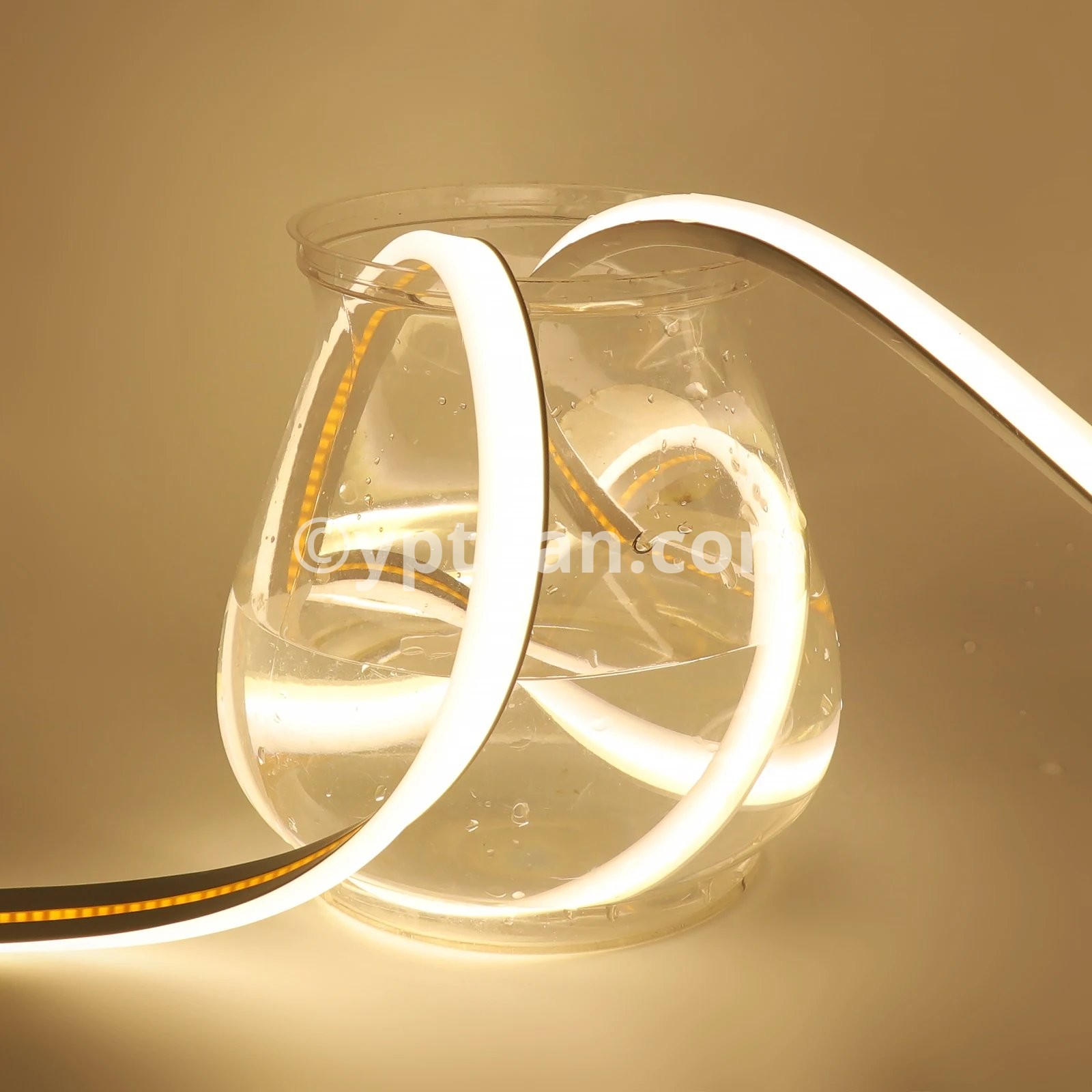

IP65/IP67 waterproof light strips can be placed underwater , such as in fish tanks, swimming pools, etc.

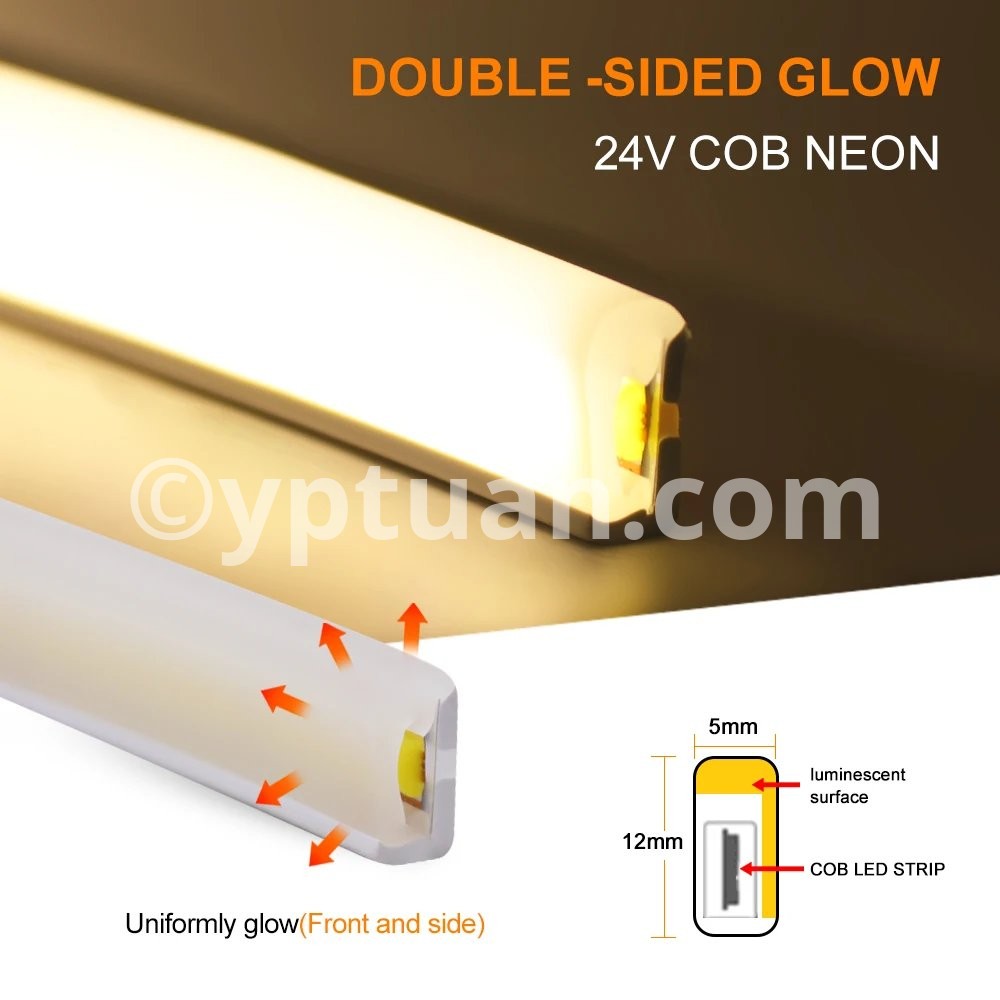

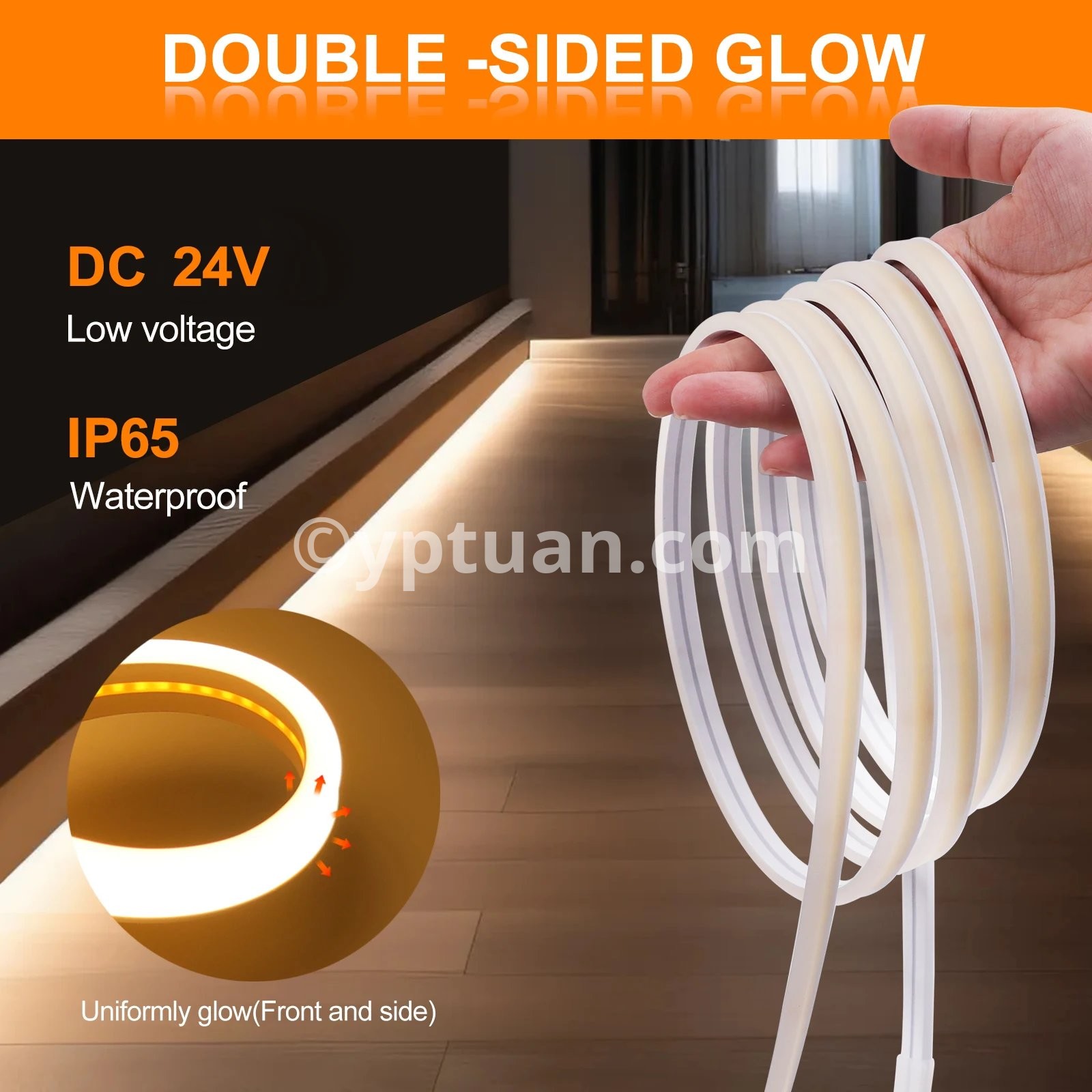

Double-sided glowing light strip, very bright

-Very effective

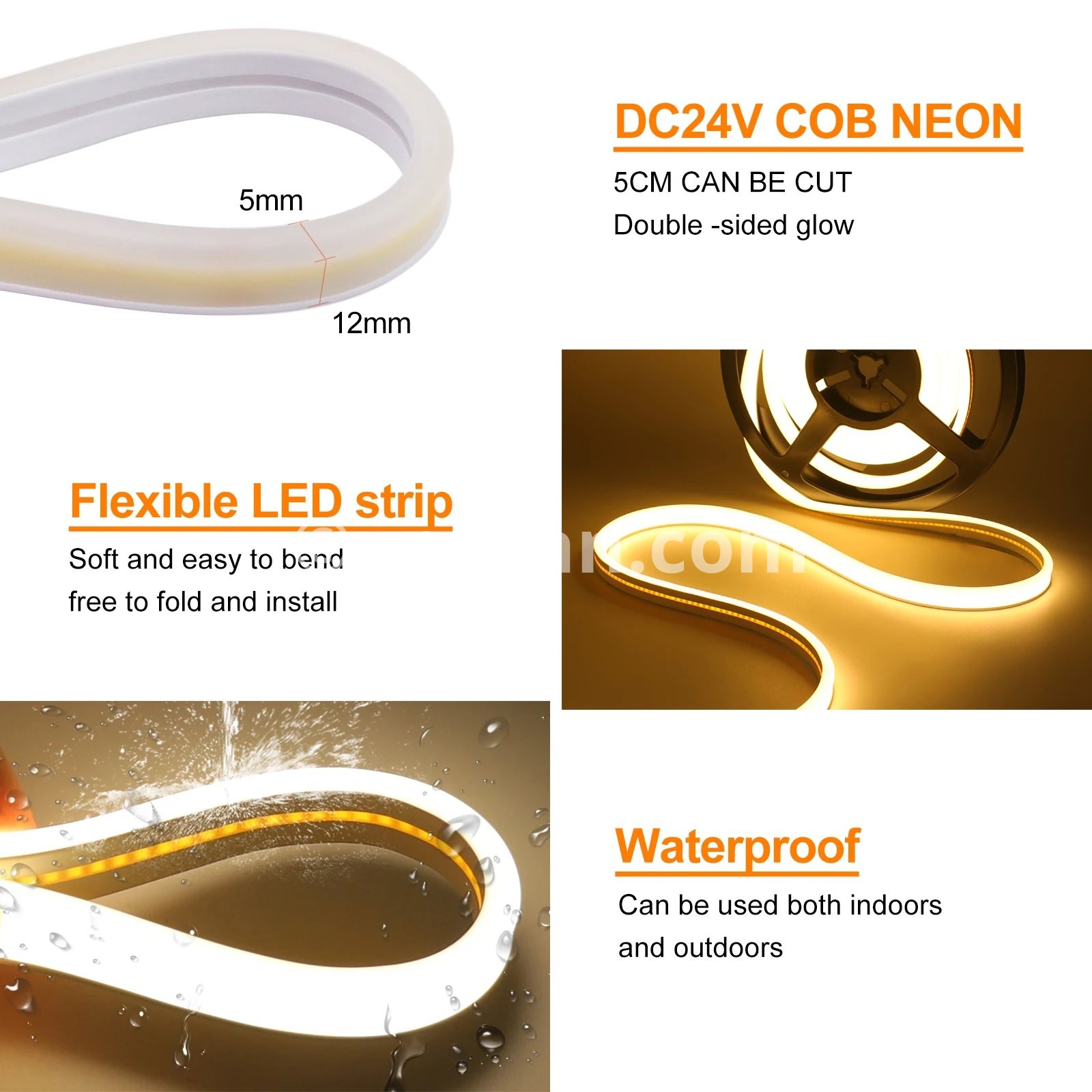

DC24V COB NEON

-5CM CAN BE CUT Double -sided glow

Flexible LED strip

-Soft and easy to bend free to fold and install

Waterproof

-Can be used both indoors and outdoors

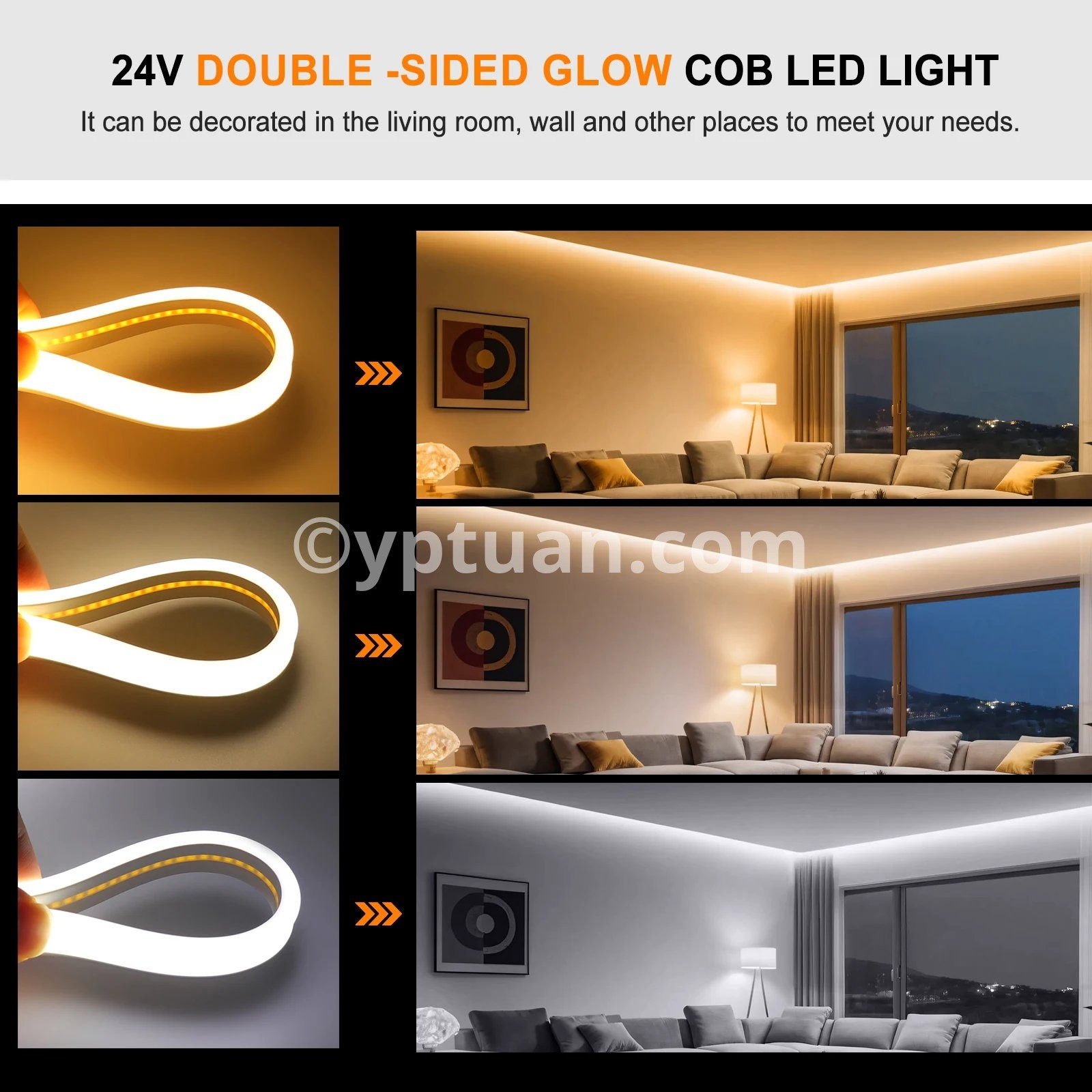

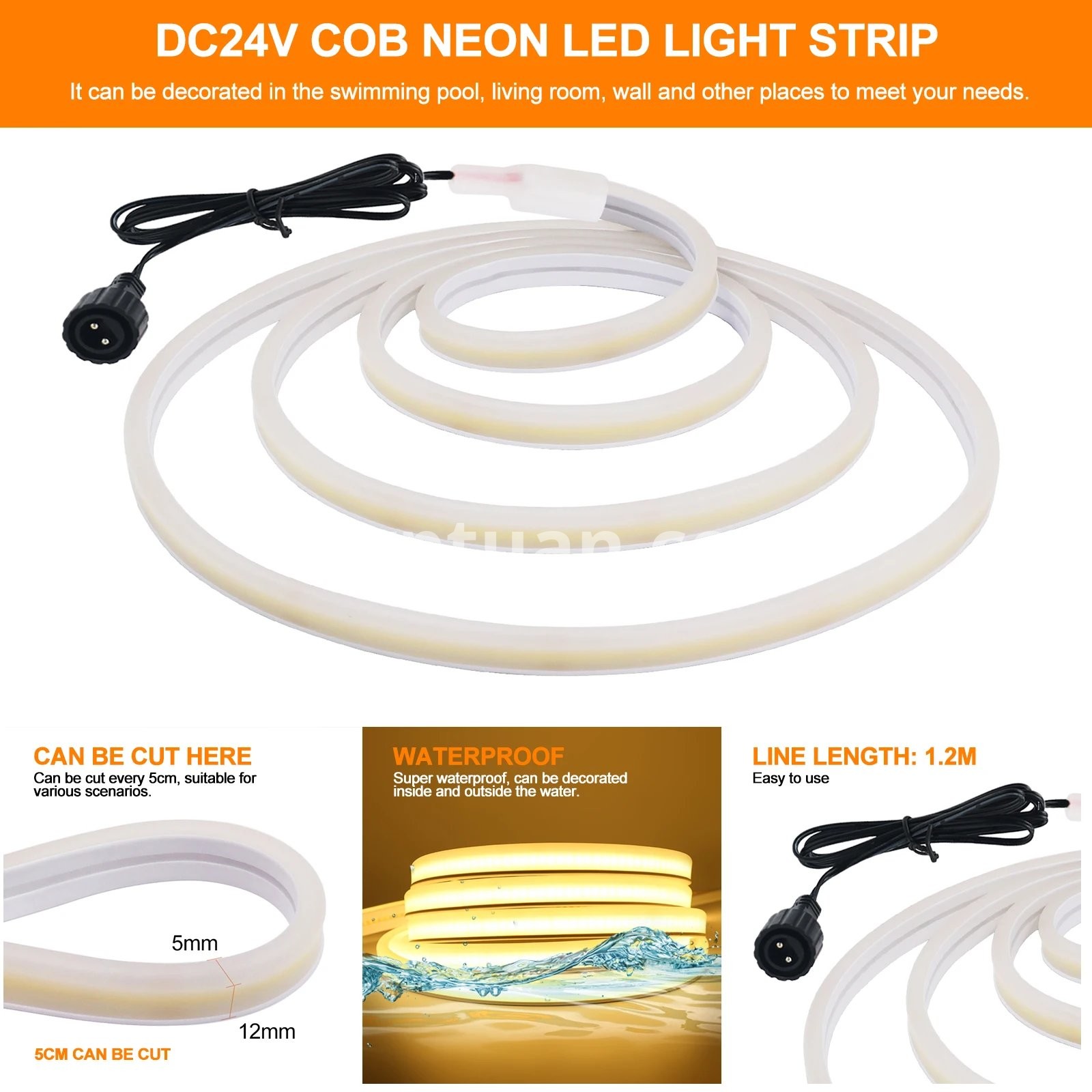

DC24V COB NEON LED LIGHT STRIP

-It can be decorated in the swimming pool, living room, wall and other places to meet your needs

PCB Size: Width:12mm Height:5mm

Solar energy is easy to store and charge

0.5m-2m come with 1.3W controller

3m-5m come with 2.8W controller

6m-10m come with 6W controller

White

Warm

Natural
